Yun Shield
Shield para dotar de conectividad y almacenamiento a Arduino. Opera con OpenWRT. Soporta almacenamiento flash por USB y posee un web server,
COD: EAS99260YS
Peso: 0.020 Kg
Disponibilidad: Sin Stock
ARS 80741.00
El producto no está disponible para la venta en este momento
Características

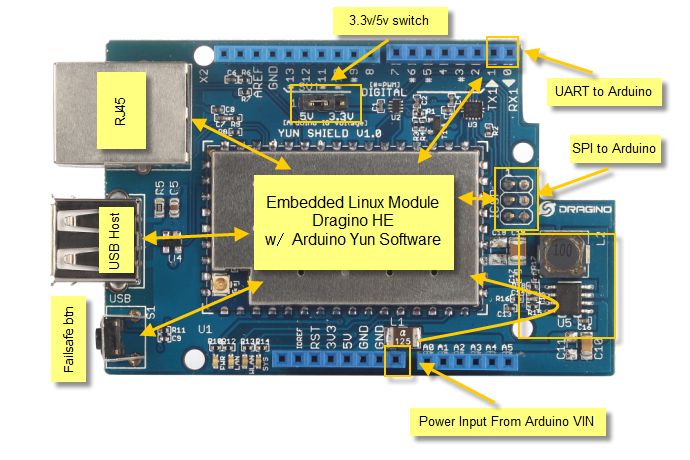

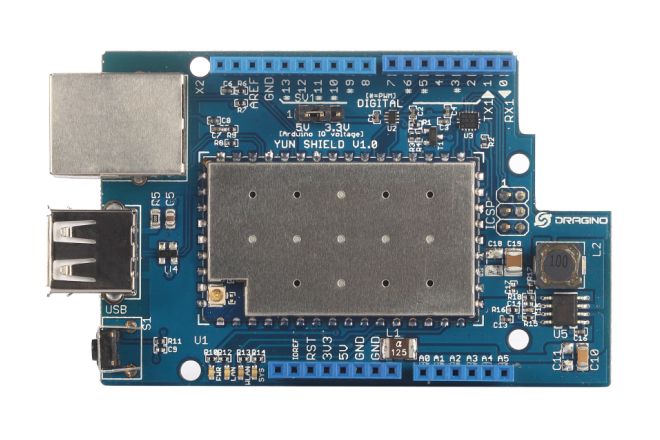

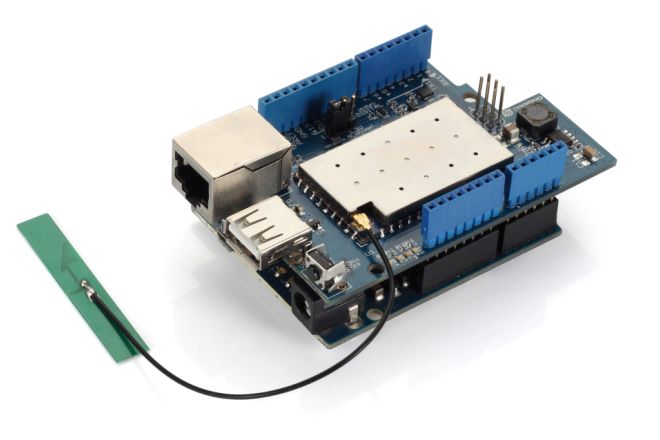

Yun Shield is designed to solve the Internet connectivity and storage issue for Arduino Board. Alike the Arduino Yun, it provides a Linux system, WiFi, Ethernet to the Arduino board for connectivity. Yun Shield runs Open Source OpenWrt system (Same system as runs in Arduino Yun) and it is fully compatible with Arduino IDE v1.5.4 or later. Yun Shield is the ideally choice for Arduino Projects which require various internet connections and more storage. Basically, Yun Shield + Leonardo equally to the official Arduino Yun, but Yun Shield is more flexible because it can work with other Arduino board such as Uno, Duemilanove, Mega etc. And Yun Shield uses external wifi antenna which provides stability and possibility for various environments.
Features
- Open source Linux (OpenWrt) inside
- Low power consumption
- Compatible with Arduino IDE 1.5.4 or later, user can program, debug or upload sketch to Arduino board via Arduino IDE.
- Managed by Web GUI, SSH via LAN or WiFi
- Software upgradable via network
- Built-in web server
- Support internet connection via LAN port, WiFi or 3G dongle.
- Support USB flash to provide storage for Arduino projects.
- Failsafe design provides robustly system.
- Compatible with Arduino Leonardo, Uno , Duemilanove, Diecimila, Mega
Specification
- Processor: 400MHz, 24K MIPS
- Flash: 16MBytes
- RAM: 64MBytes
- Power Input: 4.75v ~ 23v via Arduino VIN pin
- 1 x 10M/100M RJ45 connector
- 150M WiFi 802.11 b/g/n
- External Antenna via I-Pex connector
- 1 x USB 2.0 host connector, used for USB storage or 3G connection
- 1 x Reset button
- Compatible with 3.3v or 5v I/O Arduino.
Quick Start Guide (1050 Kb)
