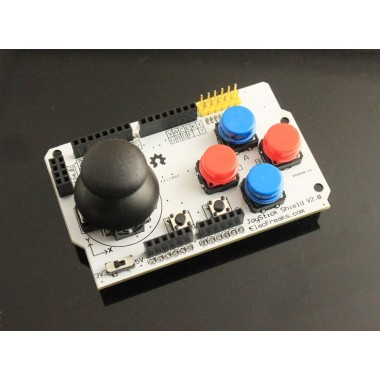

Joystick Shield v2.4 SHD_JK2

Joystick Shield v2.4 SHD_JK2

Joystick en formato Shield con interfaz nRF24L01!

COD: EF02016

Peso: 0.025 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 15286.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

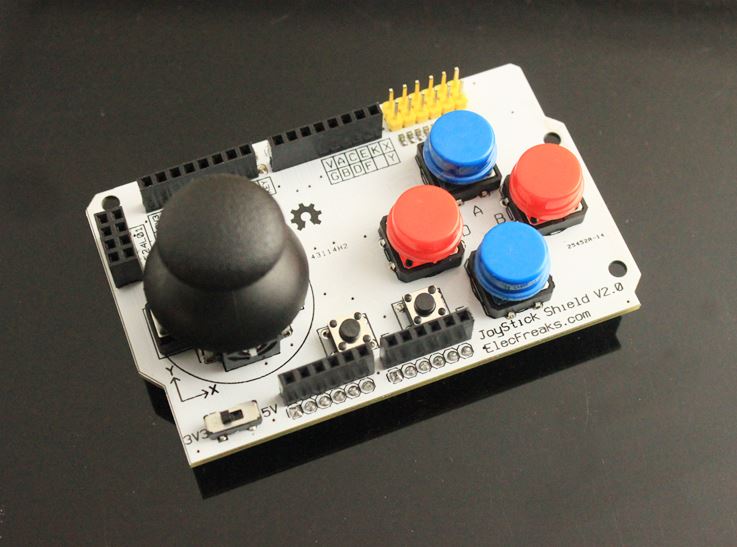

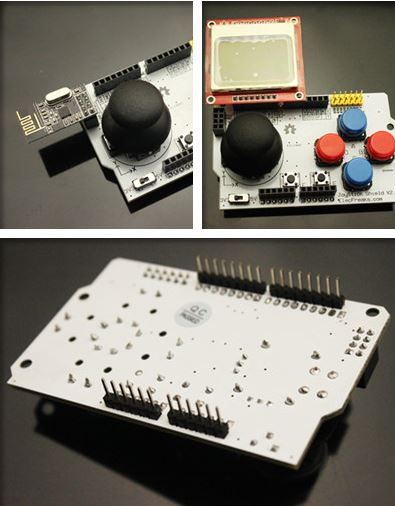

The Joystick we added Nokia 5110 LCD and nRF24L01 interface. You can easily develop your Joystick games, and even communicate with each other through wireless nRF24L01.

The shield sits on top of your Arduino and turns it into a simple controller. 7 momentary push buttons ( (4 big buttons + 2 small buttons + joystick select button ) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers.

Note: The Joystick with Nokia5110 can't support standard Arduino board Because of standard Arduino board 3.3v just supply 50mA current, which can't content Nokia5110 backlight's need. But our Freaduino support 800mA current which is far more than Nokia5110's demand.


You can also connect it to other platform by 2.54 mm header.

Resources

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
