Programador AVR para subir sketches y grabar bootloaders, basado en ATtiny44.
Peso: 0.010 Kg
Disponibilidad: Sin Stock
El producto no está disponible para la venta en este momento

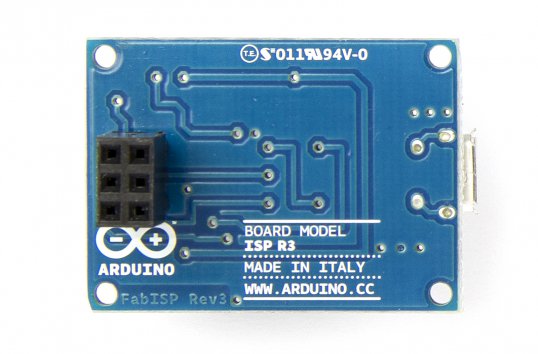

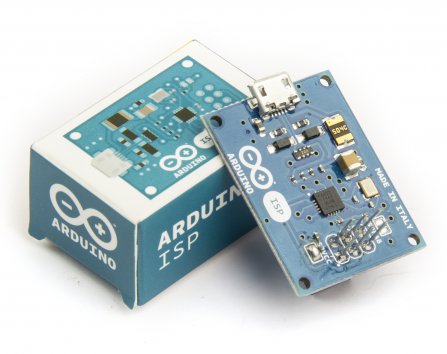

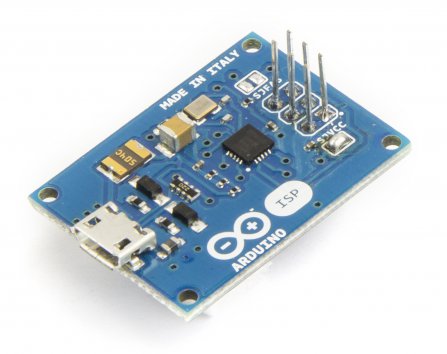

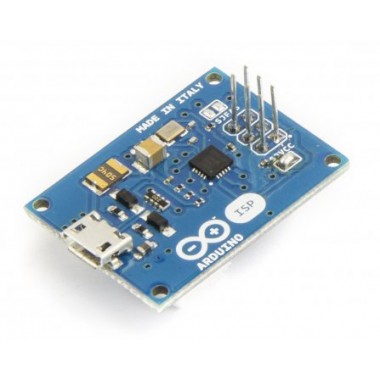

The Arduino ISP is a tiny AVR-ISP (in-system programmer) based on David Mellis' project FabISP (http://fab.cba.mit.edu/content/projects/fabisp/). With this programmer you can upload sketches and burn the bootloader on any AVR based boards, including Arduinos. By uploading a sketch with an external programmer you can remove the bootloader and use the extra space for your sketch. The Arduino ISP can also be used to burn the Arduino bootloader, so you can recover your chip if you accidentally corrupt the bootloader. Burning the bootloader is also necessary when you use a new ATmega microcontroller in your Arduino, and you wish to use the bootloader to upload a sketch via the USB-Serial connection.
|Supply voltage||5 V|
|Connection with the computer||micro USB|
|Connection with the target board||ICSP|
Eagle files: fabisp_eagle.zip
Windows Drivers: ArduinoISP_WindowsDrivers.zip
How to use
Connect the Arduino ISP to your Arduino board's ICSP headers. Make sure to match the orientation of the plugs by looking at the white dot on the corner of the connector. Once connected, open the Arduino IDE and select "Arduino ISP" under the "Tools > Programmers" menu. To upload a sketch using the Arduino ISP, choose "Upload using programmer"option in the File menu, or use the keyboard shortcut: "CTRL+SHIFT+U". If you want to burn the bootloader into the AVR microcontroller select the "Burn bootloader" option under the "Tools" menu.
Note: The Arduino ISP is only supported by Arduino IDE 1.5.7 or later.
For more details about using the Arduino ISP please visit the Getting Started page
- Programming an ATtiny with Arduino ISP: How to install the ATtiny core for the Arduino IDE for programming AVR ATtinymicrocontrollers using the Arduino software and the Arduino ISP programmer.
- How to read your Arduino built-in EEPROM: How to read the content of the onboard EEPROM on an AVR microcontroller by dumping the flash memory using the Arduino ISP programmer.
Powering the target board:

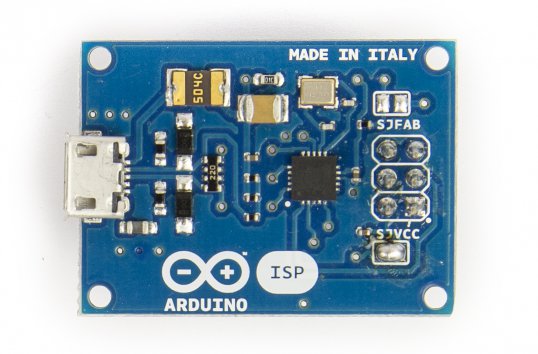

The Arduino ISP is able to provide the 5V power supply voltage to the board being programmed. If you want to power the board through the ISP you have to close the SJVCC jumper on the board.
Reprogramming the on board ATtiny44
The firmware on the ATtiny44 inside the Arduino ISP can be updated or replaced. To program the ATtiny you have to close the SJFAB jumper and connect an ISP programmer in the ICSP connector.
Verification error problem
If you encounter this kind of problem you should power the board you are trying to program with the Arduino ISP with external power rather than with USB power. For example if you are burning the bootloader to an Arduino Leonardo you have to power the Leonardo through the power jack with a 9V wall wart power supply.
Unknown USB device
If your computer does not recognize the device try a different USB port. Some particular USB ports cause problems during the communication, changing the USB port usually fixes the problem.
