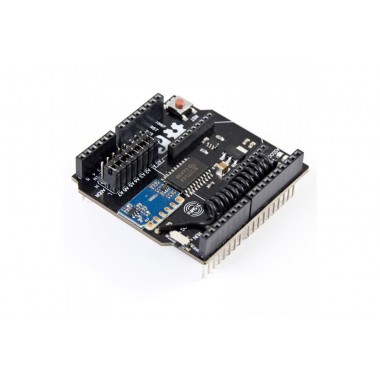

RF Shield (315MHz)

RF Shield (315MHz)

Shield Arduino receptor de 315 MHz. Trabaja con el control remoto DFFIT0355

COD: DFTEL0075

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 402.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Introduction

315M wireless modules are widely used in areas like vehicle monitoring, remote control, home security system, wireless meter reading, guard monitor system, industrial data acquisition system, wireless tag, identification, non-contact RF card, small wireless data terminals, fire safety systems, wireless remote control system, biological signal acquisition, hydrological/meteorological monitoring, robot control and so on.
This 315MHz RF Shield can be easily integrated seamlessly into existing 315MHz wireless networks. Whatsmore, the XBee interface integrated on this module will provide you more wireless posibilities: 315M - Bluetooth, 315M - WiFi, 315M - ZigBee, etc.
This RF Shield is compatible with the 315M sensors/controllers which use SC2260, SC2262, PT2260, PT2262 chips.
This RF Shield  is compatible with our remote wireless keynob DFFIT0355.

Applications

  • Wireless remote control
  • Small wireless data terminal
  • Home security system

Specification

  • Module Interface: Arduino Compatible
  • Occupied Port: Digital Port 3,8,9,10,11
  • Operating Frequency: 315MHz
  • Operating Current: 10mA(Maximum)
  • Modulation Mode:  ASK
  • Demodulation Mode: Super Heterodyne Demodulation
  • Sensitivity: -102dBm(Typical),-98dBm(Worst)
  • Transmission Rate: 9.6kbps(Maximum)
  • Receiving Bandwidth: ±1.25MHz(6dB)
  • Antenna Impedance: 75Ω
  • Decoder Chip: SC2272(Latch)
  • Data Output: Compatible with CMOS Level Standard
  • Expansion Interface: XBee Interface
  • Transmission distance:
  • Operating Temperature: 0° to 70°
