3.6V Micro hydrogenerator

3.6V Micro hydro

Generador hidráulico de 3.6 Volts. El diámetro de la entrada/salida de agua es de 1/2". Posee una batería interna de Litio.

COD: SEPOW109D3B

Peso: 0.165 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 1156.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

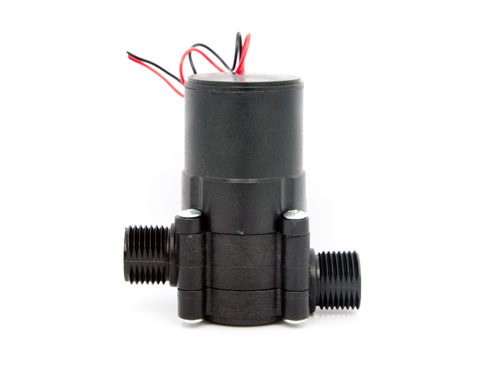

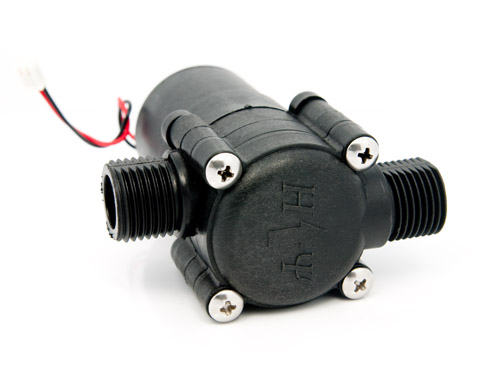

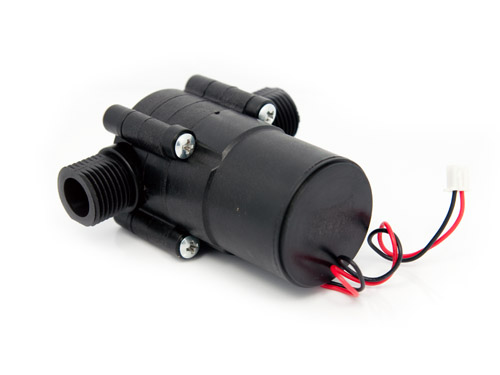

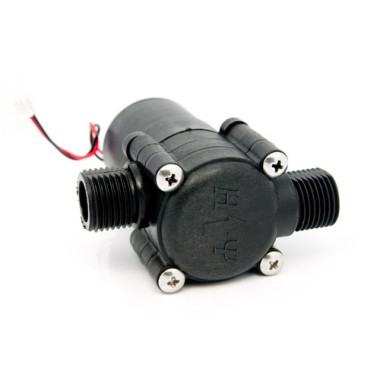

This G1/2 micro hydro generator provides you clean and renewable electricity. With the help of the regulator circuit inside, the output of this generator is stable at 3.6V. And the capacity of battery is improved from 300mAh to 700mAh compared to the old version.

Time to replace the Li-po batteries in your waterside projects with the green and more accessible hydro power.


Features

  • Built-in Lithium Battery
  • Built-in Lipo Charging Circuit
  • Stabilized Voltage Ouput
  • High Battery Capacity



Specifications

  • Working Pressure: < 2KGF
  • Pressure Drop: 0.4 Bar (3.0 L / Min )
  • Peak Current: 1.4 A
  • Stand-by Current: Max. 1.4A
  • Voltage Output: 3.6VDC --- 700mAh
  • Power Output: 125mW (4LPM)
  • Battery Capacity: 300mAh
  • Max. Flow: 20 L / Min ( 2KGF)
  • Water-resistance: IP4
  • High limited voltage: 4.3VDC
  • Dimensions: L 84.5 mm - W 64.5 mm - H 81 mm
  • Wire Length: 84 mm
  • Jack Type: JWT C2521 Terminal Plug
  • Connect Thread Gauge: G 1/2"
  • Weight: 165 ± 5g
  • Burst Pressure: 20KGF
  • Normal Operation Temp. 4 °C~80 °C
  • Max. Intermittent Operating Temp. 110 °C max. 30 min
  • Generating Model: NACuM Core (PAT NO.DE202006004800)
  • Battery Type: Li-polymer Battery with PCM
