RTC & EEPROM Module DS3231 AT24C32

RTC & EEPROM Module DS3231 AT24C32

Módulo de datalogging que incluye memoria EEPROM (32K) y reloj de tiempo real (RTC). ATENCION: El módulo está preparado para una batería LIR2032 RECARGABLE. En caso de querer utilizar una pila no recargable, es necesario desoldar la resistencia R5, de 200 ohms.

COD: ESMI3231DS

Peso: 0.008 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 8710.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

ATENCION: El módulo está preparado para una batería LIR2032 RECARGABLE. En caso de querer utilizar una pila no recargable, es necesario desoldar la resistencia R5, de 200 ohms.

DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. Compared to the DS1302 solution, the DS3231 has many advantages, it function with a VCC ranging from 2.3V to 5.5V and has a battery backup. Unlike the DS1307, the DS3231 also has an integrated crystal (so no external crystal required), temperature sensor, 2 programmable time-of-day alarms, a 32.768 kHz output pin to ensure higher accuracy.

Besides, there is also a EEPROM AT24C32 to supply you 32K EEPROM to store your data, it is the best choice for your application that needs recoding time, a built battery holder make this module suitable. It is a good substitution for the data logging shield, with even higher time precision.

Features

  • Size: 38mm (length) * 22mm (W) * 14mm (height)
  • Weight: 8g
  • Operating voltage :3.3 - 5 .5 V
  • Clock chip: high-precision clock chip DS3231
  • Clock Accuracy :0-40 °C range, the accuracy 2ppm, the error was about 1 minute
  • Calendar alarm clock with two
  • Programmable square-wave output
  • Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
  • Chip temperature sensor comes with an accuracy of 3 °C
  • Memory chips: AT24C32 (storage capacity 32K)
  • IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)
  • Can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57

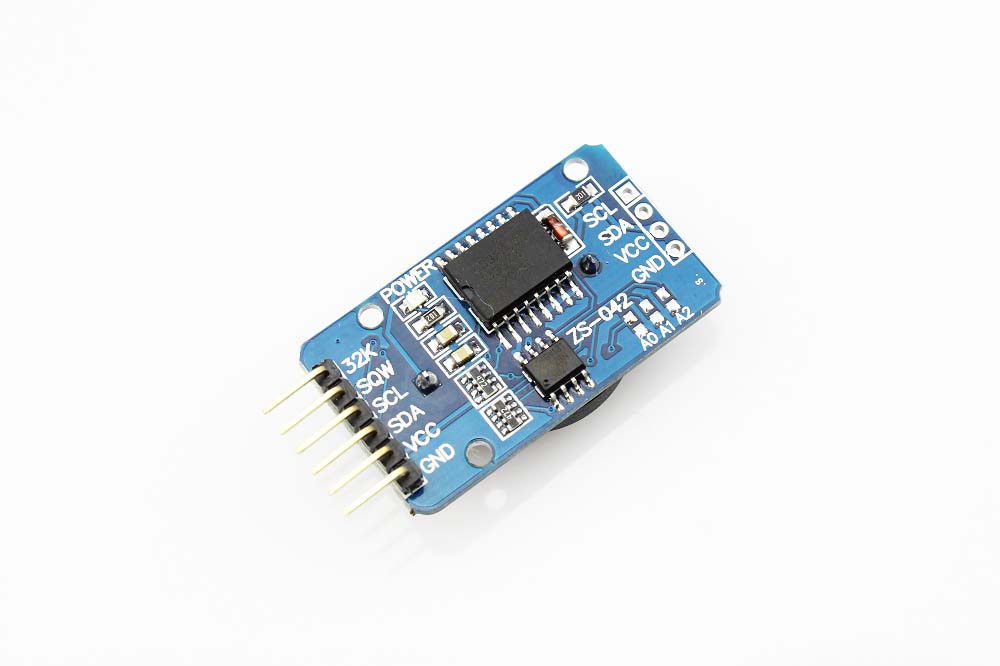

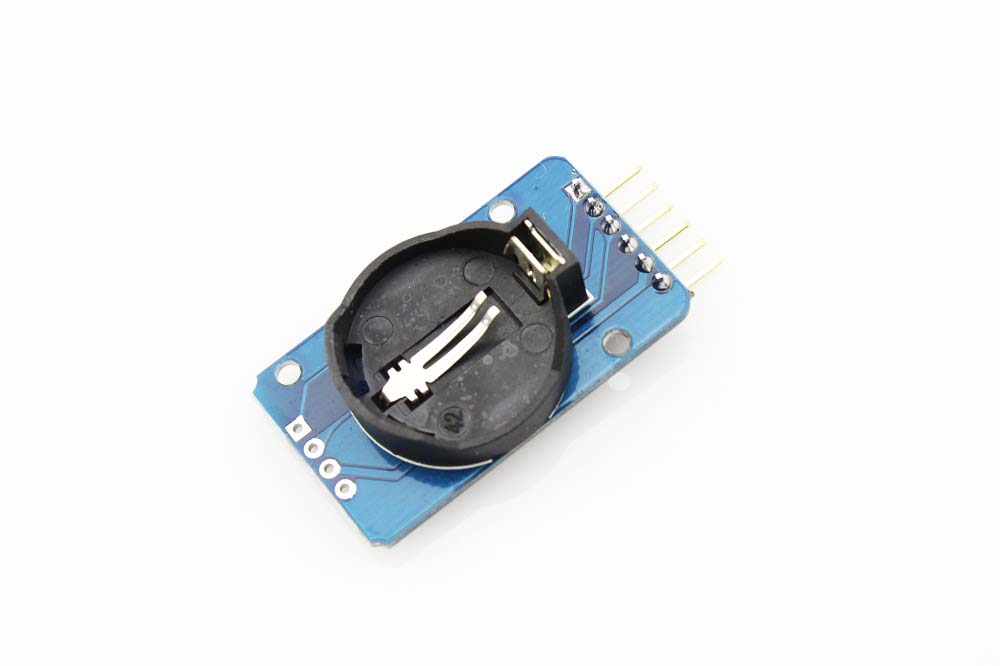

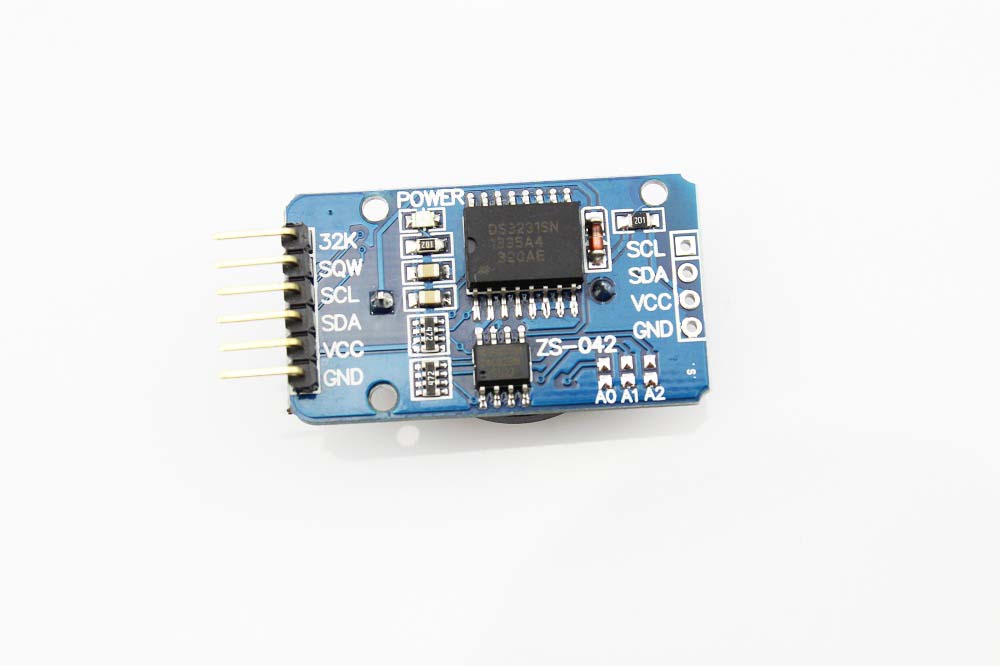

Galería de Imágenes

Comentarios

Escribir Comentario

Bernardo (14/09/2016 - 10:01)

OK, vi en el circuito que está directo, no se puede manejar x soft. Muchas Gracias por la rápida respuesta!

OpenHacks (14/09/2016 - 09:33)

Hola Bernardo, podes desoldarlo. Acá ya lo han hecho: https://edwardmallon.wordpress.com/2014/05/21/using-a-cheap-3-ds3231-rtc-at24c32-eeprom-from-ebay/ . Saludos!

Bernardo (13/09/2016 - 19:03)

Hola, sabés si hay algún modo de apagar el led que está incluido en el módulo. Revise la documentación y no dice nada, solo del DS3231 y la 24C32! Gracias y Saludos!

OpenHacks (28/08/2015 - 09:48)

Hola Emiliano, el módulo tiene cargador de batería (diodo D2 y resistencia R5, de 200 ohms), por lo que está preparado para una LIR2032 recargable. En caso de que quieras utilizar una pila no recargable, es necesario desoldar R5. Saludos!

Emiliano (27/08/2015 - 20:40)

Hola chicos, queria saber que tipo de bateria usa este modulo que tienen porque por lo que veo tiene incorporado un circuito de carga de bateria. Funciona con una CR2032 o hay que utilizar una LIR2032 recargable? Saludos!!!
