Banana Pi IO Extend Board

Banana Pi IO Extend Board

Conversor de niveles eléctricos de GPIO para Banani Pi. Permite adaptar los niveles de 3.3V a 5V

COD: BA000004

Peso: 0.002 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 484.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Overview

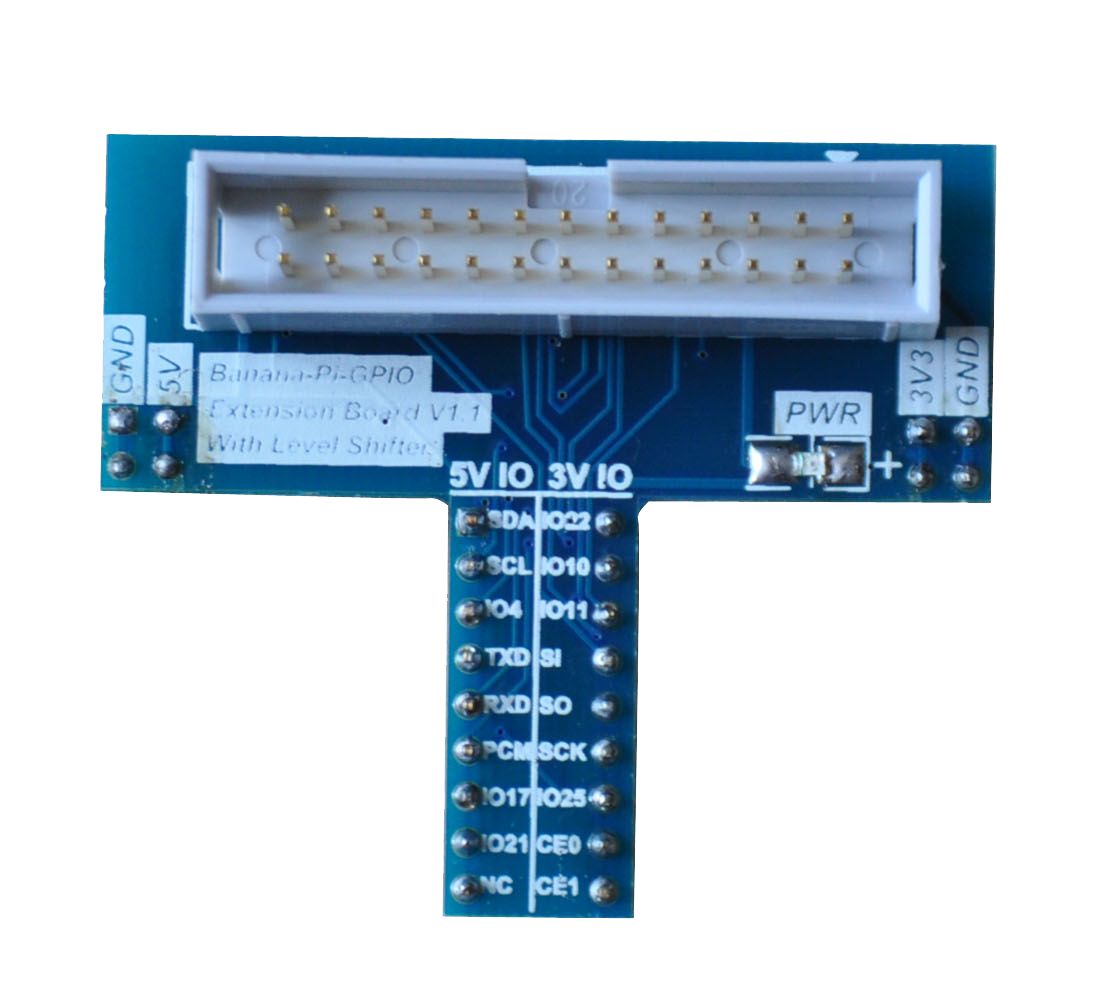

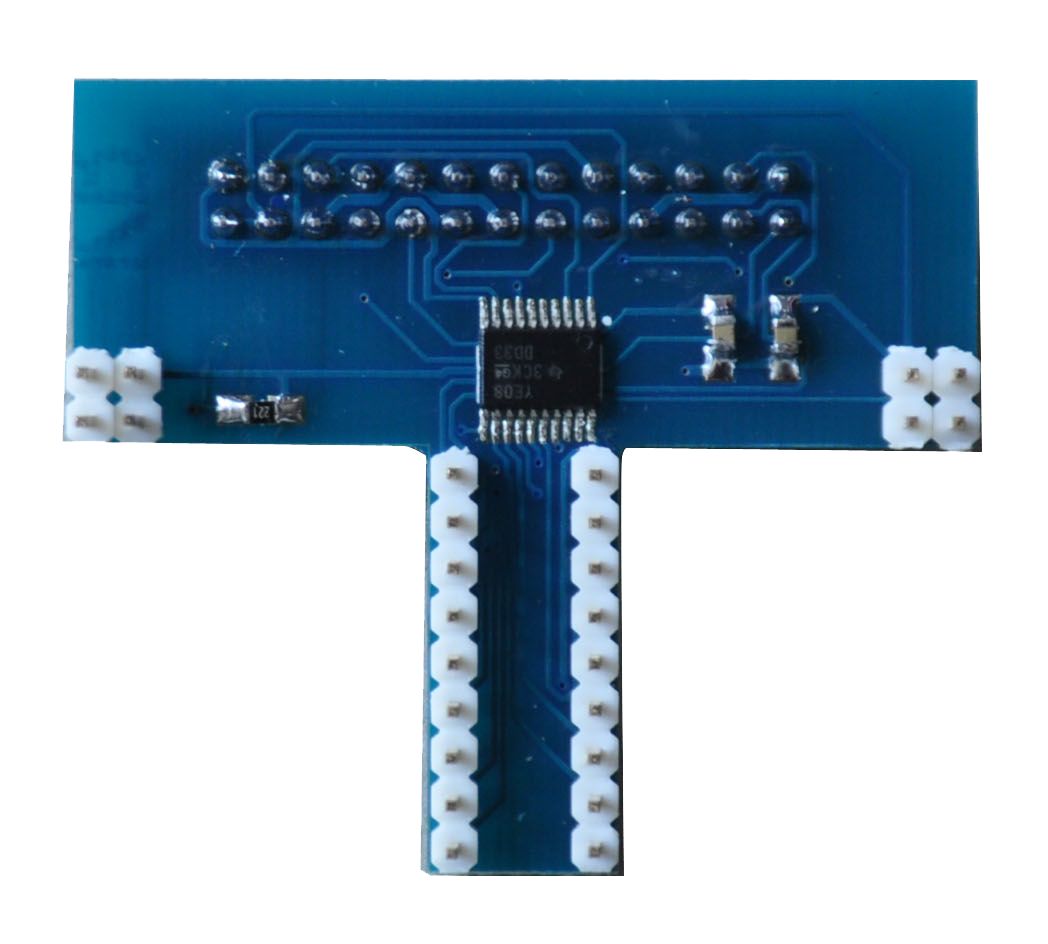

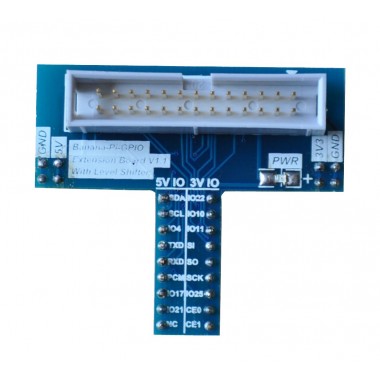

This module is designed specifically for convert the GPIO electric level of Banana Pi. It can convert 3.3V electric level to 5V electric level. That makes the Banana Pi compatible 5V peripheral. Modules are drawn twice a 5V Vcc and 3.3V Vcc; module IO are all below the left side of the 5V level IO, the right of all to 3V level IO. It is connected via cable 2 * 13 and banana pie GPIO port, and then plug in the breadboard module can be used.

Produce Feature

  • Convert 3.3V GPIO to 5V GPIO
  • 3.3V GPIO and 5V FPIO classification
  • Can be used in breadboard
  • Use TI TXB0108 chip

Port

  • 5V Vcc
  • 3.3V Vcc
  • 5V GPIO
  • 3V GPIO
  • Banana Pi connect port

Product Parameter

  • Working voltage: 1.65V-5.5V
  • Drive current up to 50mA
  • Low Power Consumption, 4-μA Max Icc
  • −40°C to +85°C operation

Typical Application

  • Convert electric level
  • Breadboard test
  • DIY hands-on experiments

How to use

First ,connect the module to Banana Pi, if it’s OK, the PWR LED will light; then insert the module to breadboard and enjoy it.

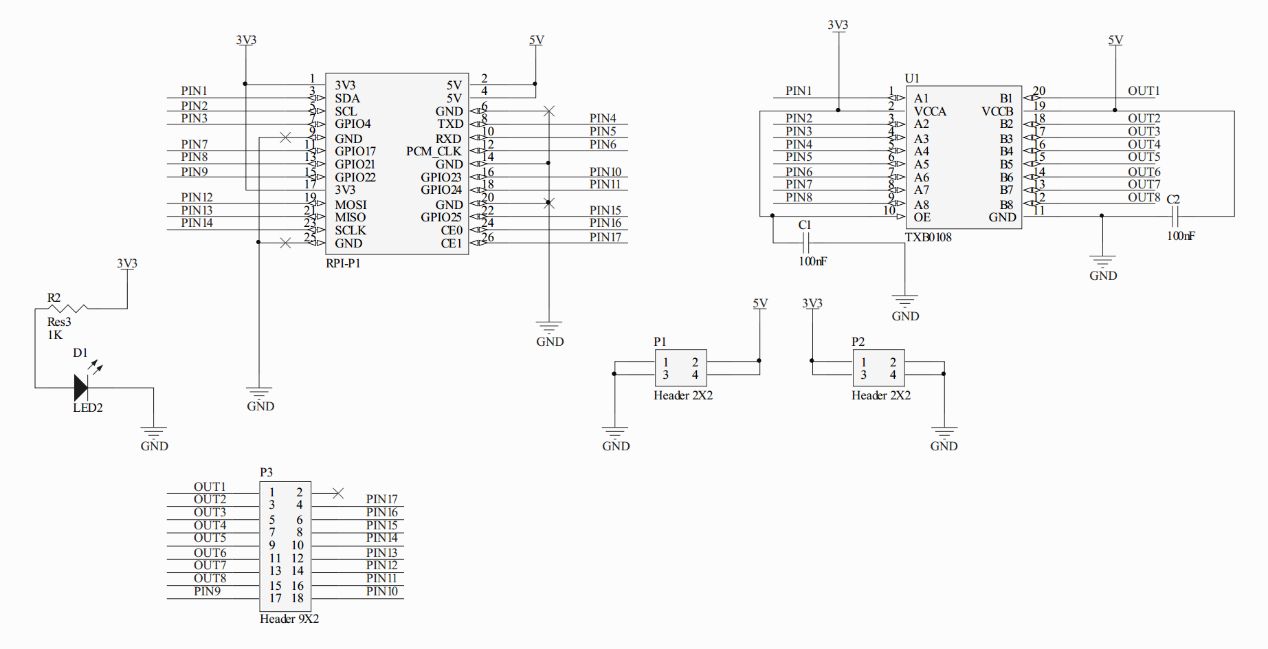

Schematic diagram

More information please check?

http://www.ti.com.cn/product/cn/TXB0108/description?keyMatch=txb0108pwr&tisearch=Search-CN
