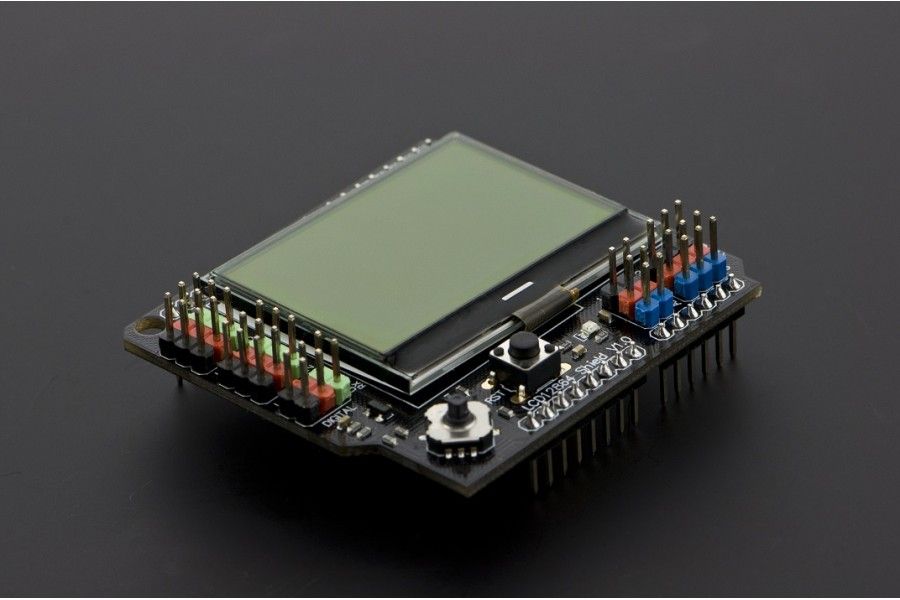

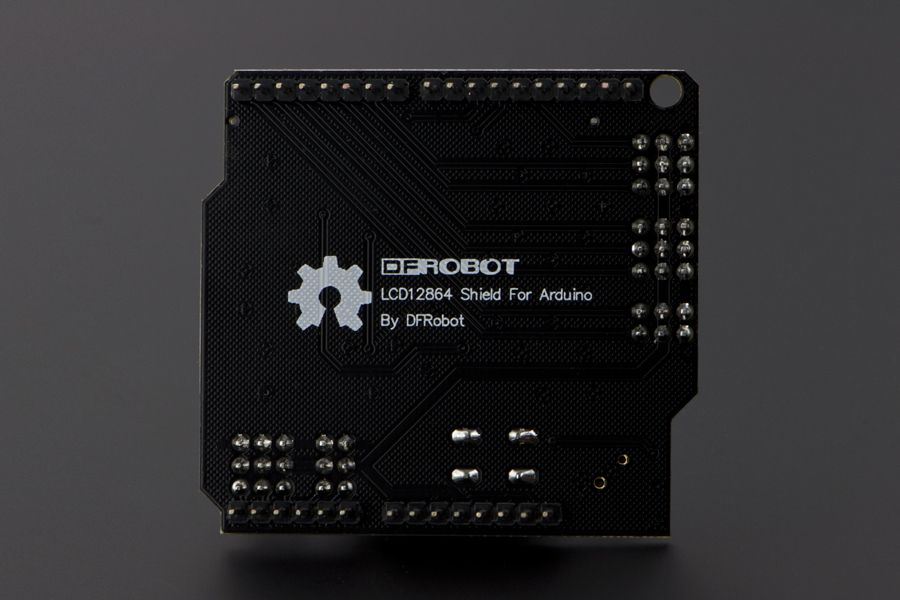

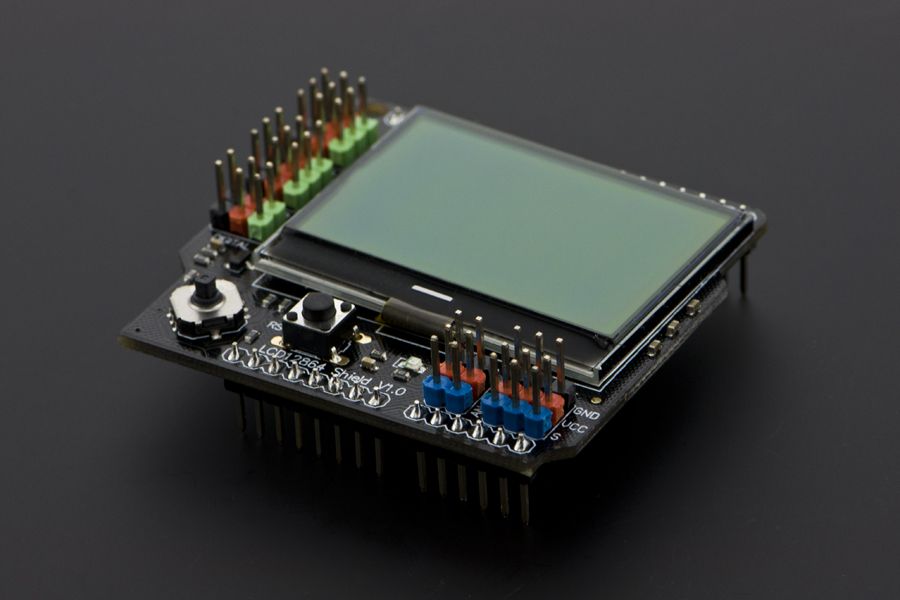

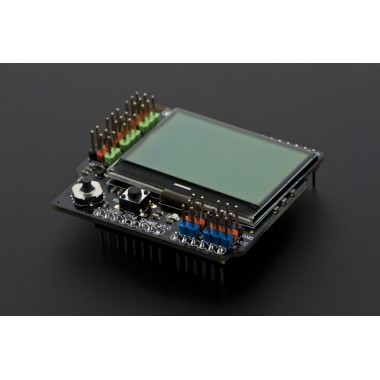

LCD12864 Shield for Arduino
Shield compatible Arduino con display de 128x64 pixels. Incluye 5 botones.
COD: DFR0287
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 52467.00
El producto no está disponible para la venta en este momento
Características
Introduction
This framed LCD12864 Shield with LED backlight is compatible with most of Arduino controllers and supports English/Chinese/Picture display. With 5 analog extension pins and 8 digital pins, the LCD12864 Shield also integrates a 5-key joystick for controlling additional functions, making it an ideal module for prototyping and interactive projects.
Specification
- Power supply: 3.3V
- Pin used: D7, D8, D9, D10, D11, D13, A0
- Reset button
- 5 degree joystick (using Arduino Analog Pin 0)
- Backlit control (using Arduino Digital Pin 7)
- Extra 5 Analog pins & 8 Digital pins
- Size:60x55x20mm
Sample code (2 Kb)
Schematic (42 Kb)
