Input Shield for Arduino

Input Shield for Arduino

Joypad en formato shield para Arduino

COD: DFR0008

Peso: 0.200 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 682.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Introduction

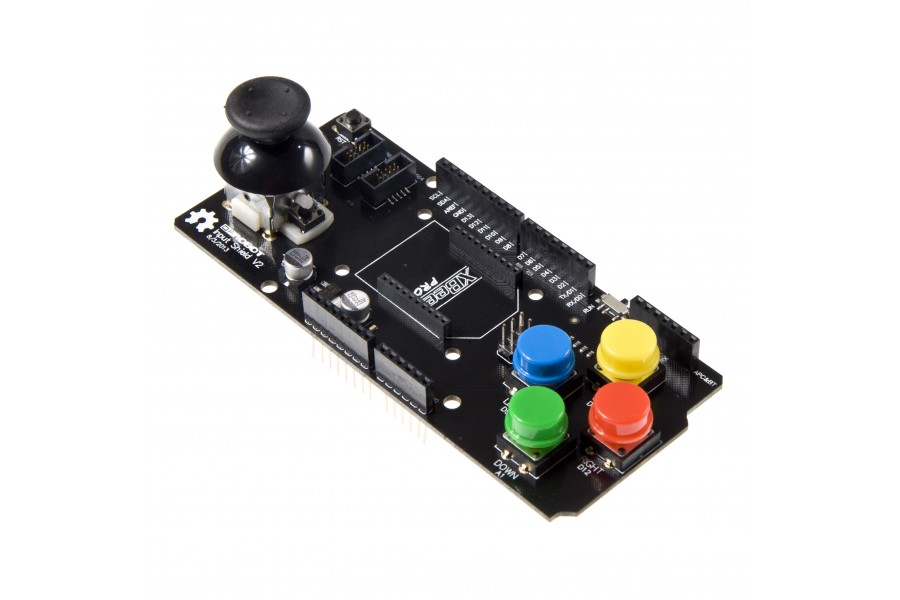

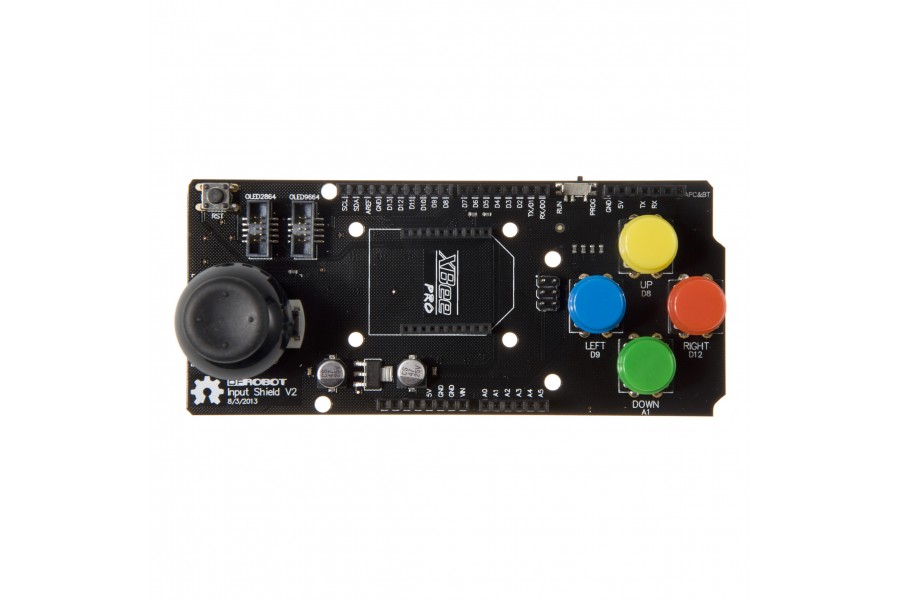

The upgraded Arduino Input Shield includes a two axis mini joystick (with moment switch) as well as four colored push buttons(Red,Yellow,Blue,Green). The shield can be easily stacked on top of your Arduino boards. It can also connect with OLED2864 & OLED9664.

Features

  • Dual axis mini joystick
  • Connects to your Arduino using male to male pin headers
  • Comes with 2 colored push buttons
  • The use of imported high-quality potentiometers and the PS button rocker. The rocker output an analog signal is to achieve vertical and horizontal control, which is attached to four keys at the same time. It also has two great circle button caps (cap color random round keys), a rocker button and a reset button.

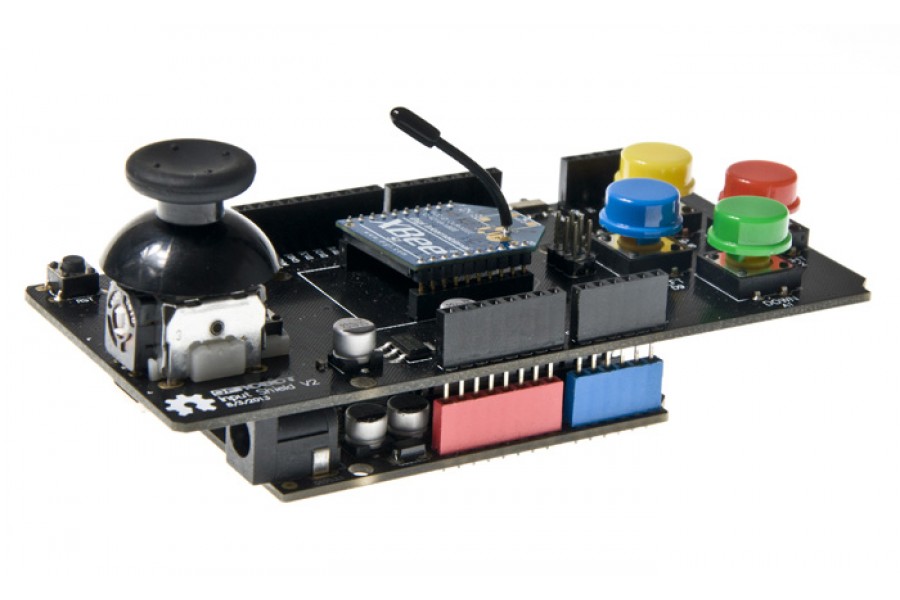

  • The use of stack design is so that the plug can easily on Arduino Duemilanove or DFRduino Romeo.
  • The reserved APC220/Bluetooth module interface is to facilitate the realization of wireless rocker button controller.
  • The remaining unused ports are extended out of standby.

Specification

  • up             D8
  • down           A1
  • left           D9
  • right          D12
  • stick button   A0
  • level_stick    A3
  • vertical_stick A2
