4 Channels IR Reflective Sensor

4 Channels IR Reflective Sensor

Módulo de sensores infrarrojos de 4 canales, conformado por emisores y receptores. Posee potenciómetros para regular el rango de sensibilidad hasta 60mm.

COD: ESPS40201S

Peso: 0.032 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 475.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

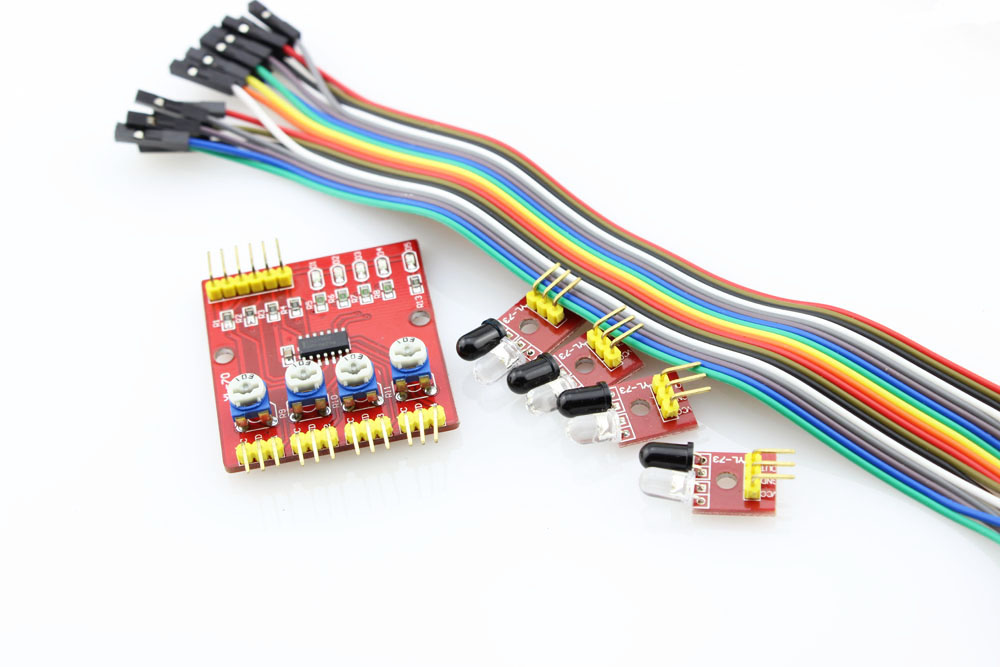

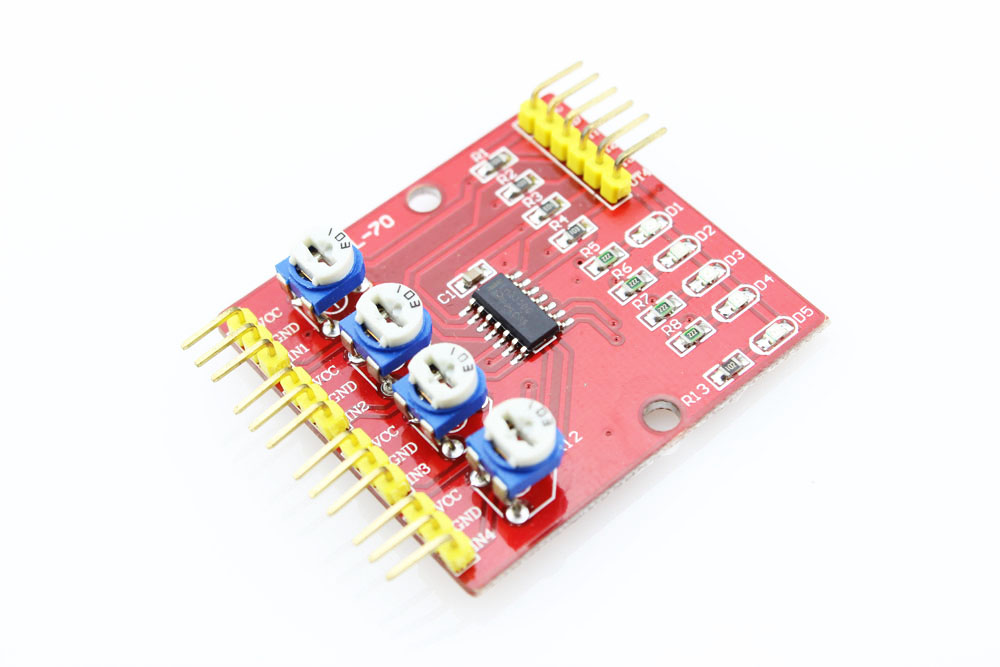

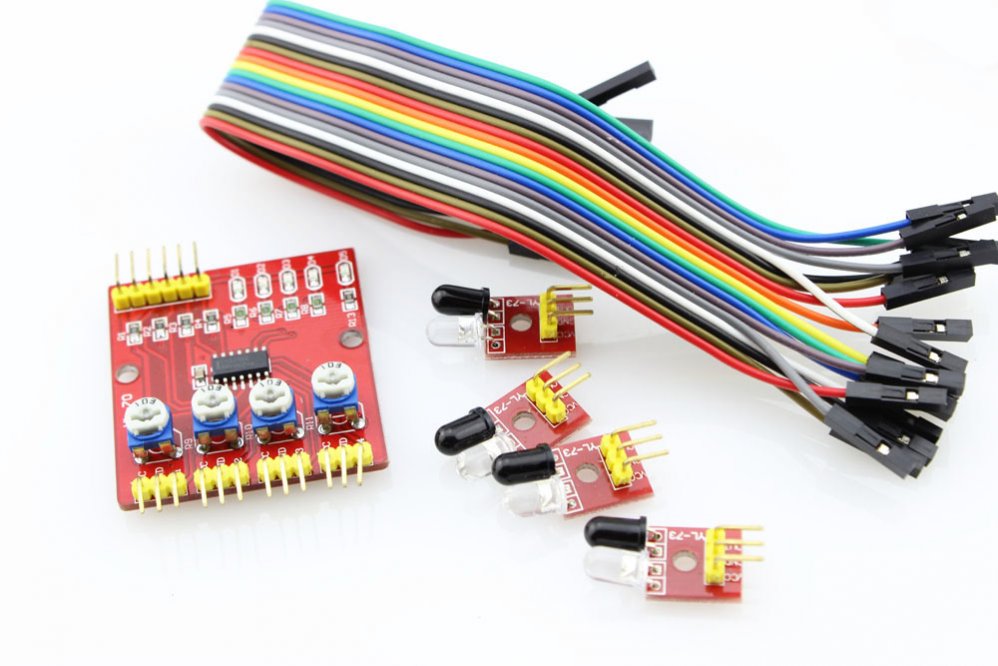

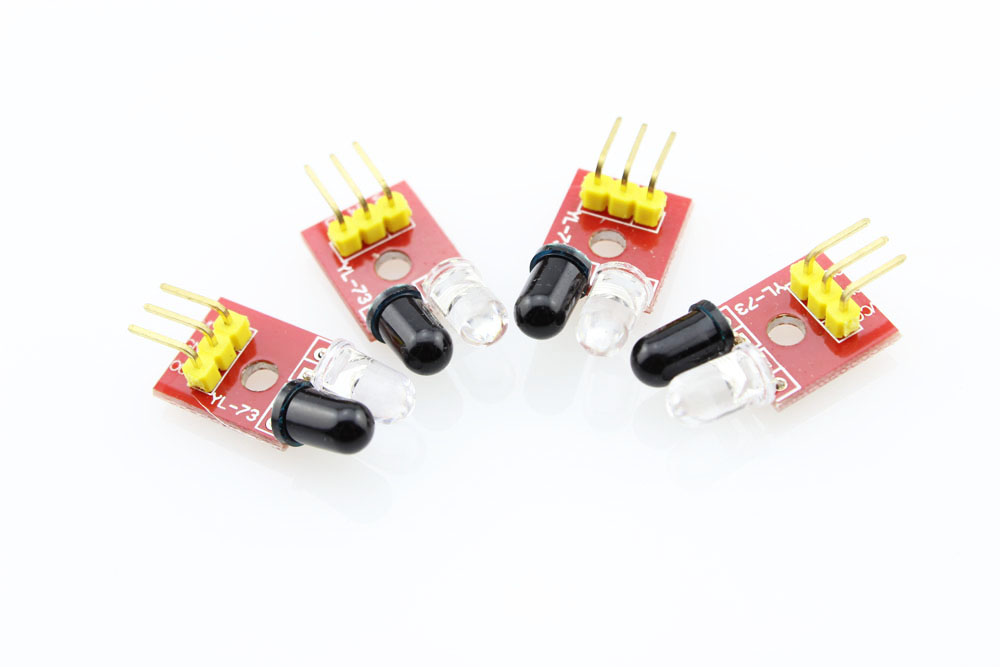

This 4 channels IR reflective sensor includes 4 IR sensors and mainboard to handle all the signals. Each IR reflective sensor is composed of an IR emitter and a receiver, if something is in the measuring range, the sensor would outputs related signal. There are also 4 potentiometers on the mainboard so that the measuring range can be adjusted as you wish.

Application Idea

  • Smart car;
  • Line and edge following;
  • omni-directional detecting;
  • On-board indicator;

Specification

  • Supply Voltage: 3.3V ~ 5.5V;
  • Supply current: >1A recommended;
  • Measuring range: Adjustable, range from 1mm to 60cm;
  • Output: TTL 0/1, when the sensor received the reflected infrared, the indicate LED light and output TTL 0, otherwise output the TT L 1, and the LED off.
