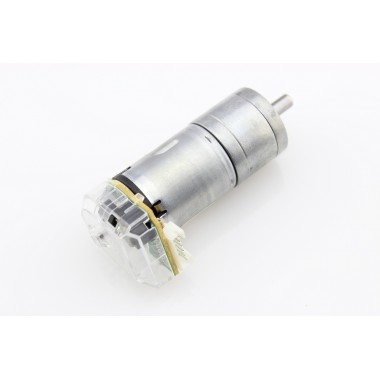

Encoder Gear Motor-25MM 95RPM

Encoder Gear Motor-25MM 95RPM

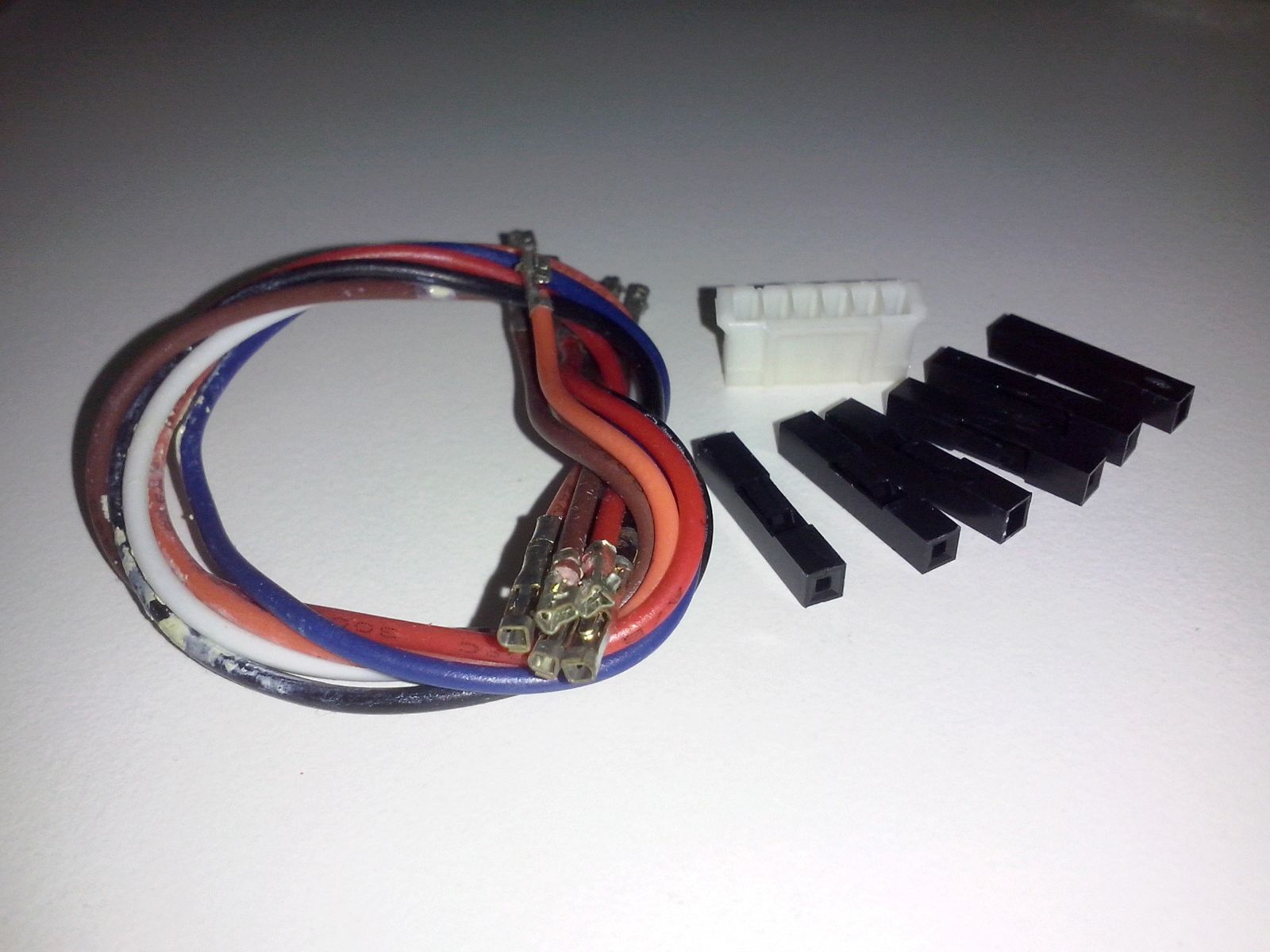

Motoreductor de 6 a 24V con encoder incorporado de 334 pulsos por vuelta. Se suministra con cable/conector/pines hembra.

COD: EAM2595EC

Peso: 0.086 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 44832.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

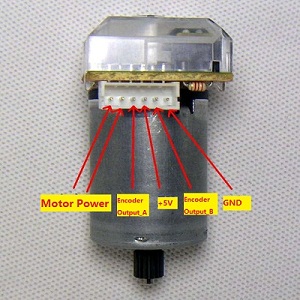

This is a gear motor that has an encoder to help users adjust the speed. The gear motor has a large torque, low loudness and easy to use. Besides, the encoder on this module has two outputs: output_A and output_B, to monitor the motor speed and direction of rotation, so that you can monitor the speed and then to adjust it in a closed-loop control.

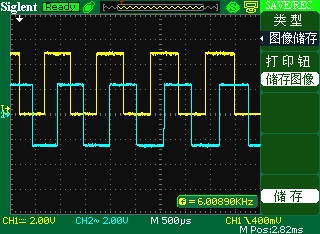

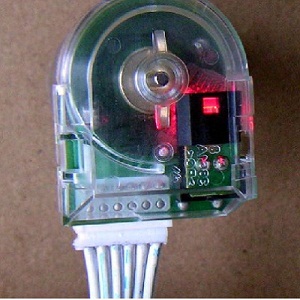

The encoder output 2 signals with 90 degree phase difference. There will be 334 pulses on each of the signal for a round of the motor, with the rising & falling edge, you can get 334x2x2=1336 signals for a round of the motor, with a interval of 360/1336=0.2694 degree.

Specification

  • Working Voltage for Motor: 6~24 VDC
  • Rated Voltage for Motor: 12 VDC
  • Voltage for Encoder: 5 VDC
  • Motor Speed: 95 rpm@12V
  • Torque: 1.1 kg.cm

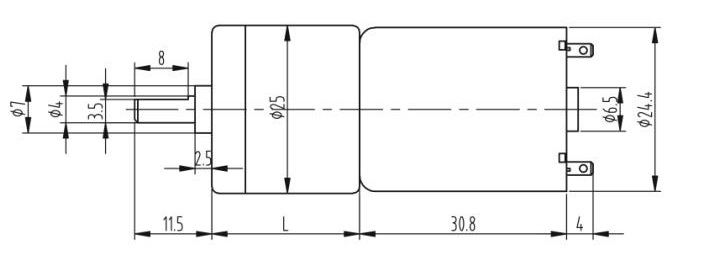

  • Motor Length: 65 mm
  • Motor diameter: 25 mm
  • Current: 250 mA
  • Motor Power: 1.25W
  • Weight: 86 g

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (29/11/2016 - 15:01)

Hola, el principio físico del encoder está explicado en este sitio: http://www.optical-encoders.eu/optical-encoder.html . No tenemos el dato de la variación sobre las 95 rpm @12V nominales. Saludos!

Cayetano (19/11/2016 - 01:41)

Dos preguntas, Cual es el fenómeno físico, en este encoder, que a su salida, se traduce electrónicamente en los 334 pulsos por vuelta? Cual es la variación +/-(vueltas) en las 95 rpm @ 12V nominales? Muchas gracias.
