I2C 0.96 OLED 128x64- Blue/Yellow

I2C 0.96 OLED 128x64- Blue/Yellow

Display OLED de 0.96" de 128x64 pixels. Es monocromo (Amarillo/Azul). Posee interfaz I2C.

COD: EDO1286496BY

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 370.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

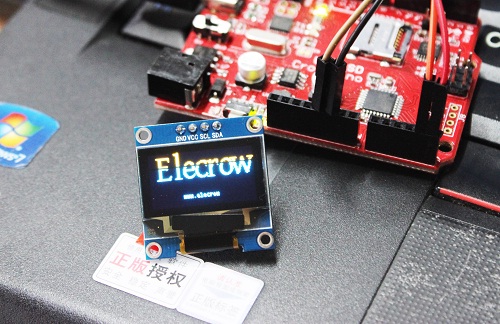

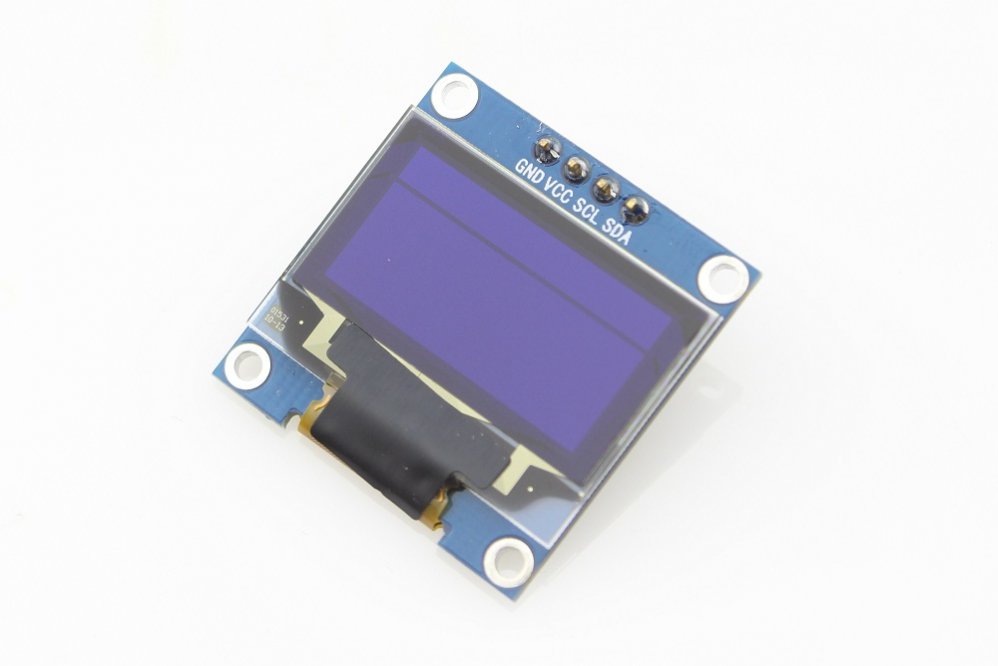

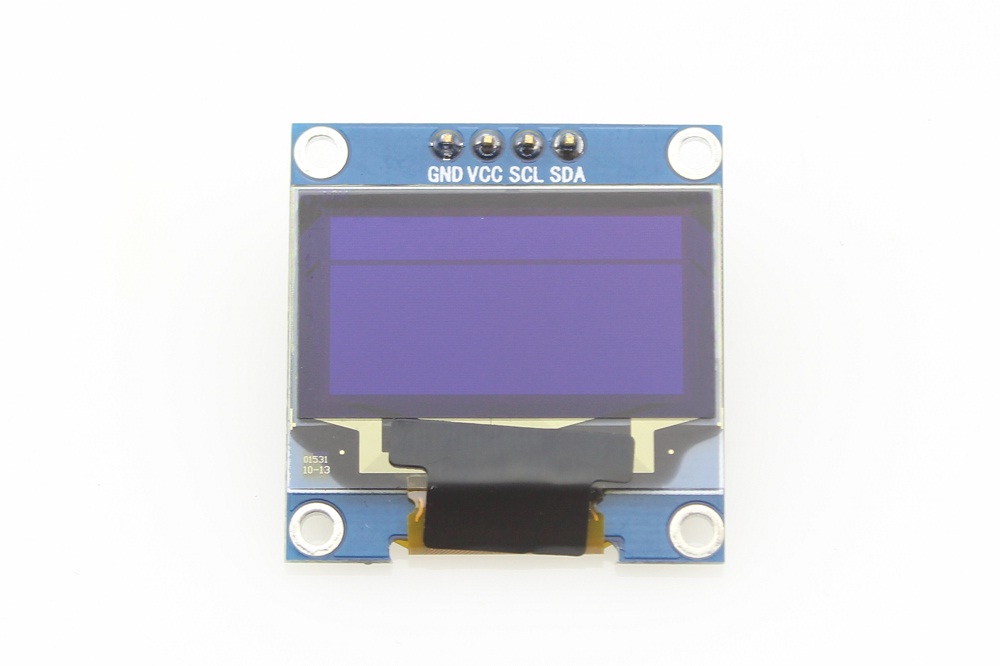

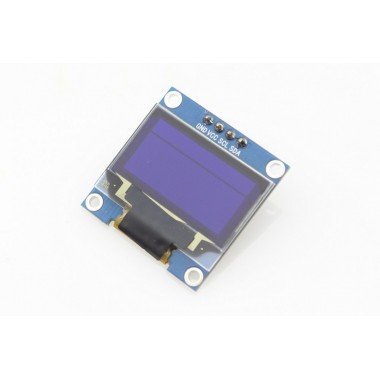

This OLED display module is small, only 0.96” diagonal, it is made of 128x64 individual blue OLED pixels, each one is turn on or off by the controller chip. It works without backlight, that is, in a dark environment, OLED display is higher compared to that of LCD display, you will like the miniature for its crispness.

This module uses I2C to communicate with microcontroller such as Arduino. Compares to the 0.96" OLED 128x64- Blue, this module has blue&yellow colors, but please very notice that this is a single color OLED indeed, that means that top quarter is yellow, and the rest ¾ is blue. The color can not be changed.

Features

  • Diagonal Screen Size:0.96"
  • Number of Pixels:128 x 64
  • Color Depth:Monochrome (Yellow&Blue)
  • Dimension:27.8 x27.3x 4.3 mm
  • Working Voltage: 3.3~ 5V DC
  • Power: 0.06W Max
  • Viewing Angle: >160 Degree
  • Duty:1/32
  • Brightness ( cd/m2):150 (Typ) @ 5V
  • Interface: I2C
