Relay Shield for Arduino V2.1

Relay Shield for Arduino V2.1

Shield compatible Arduino capaz de controlar 4 relés. Posee socket XBee.

COD: DFR0144

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 566.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Introduction

This relay shield is an ideal solution for home automation and robotics purposes.

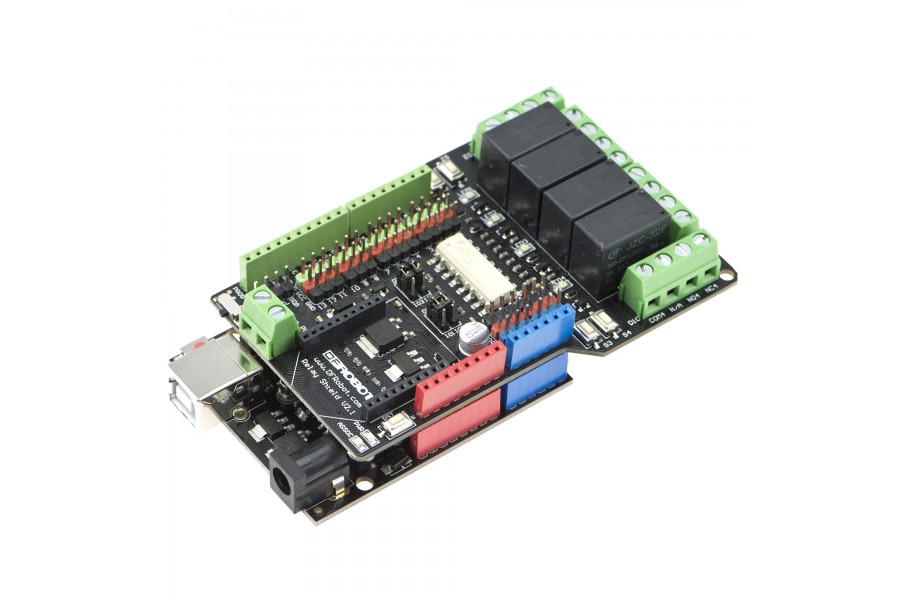

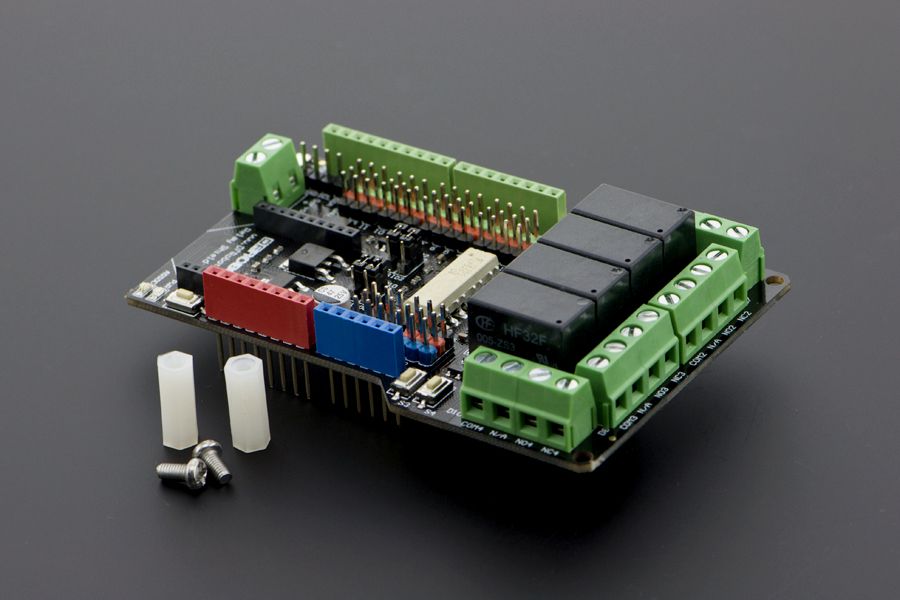

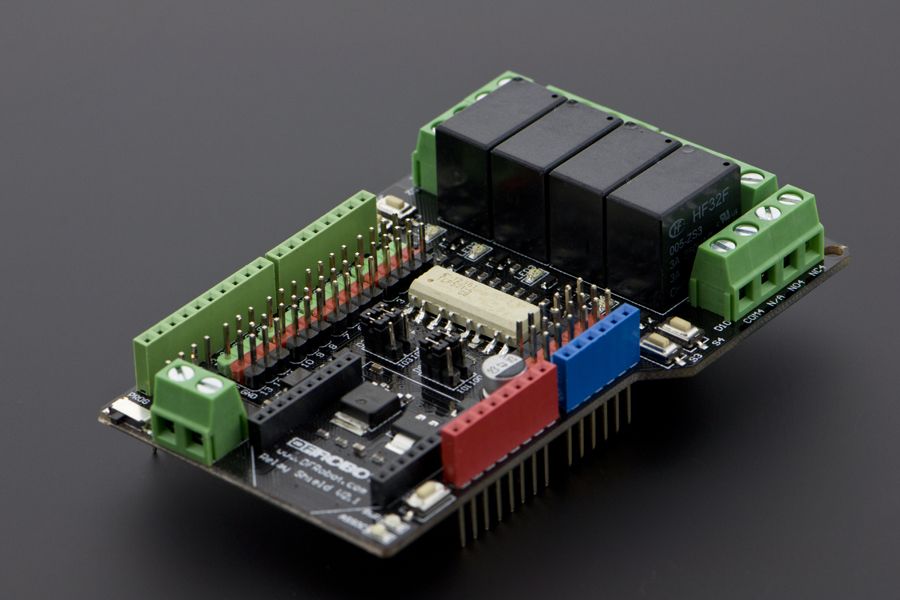

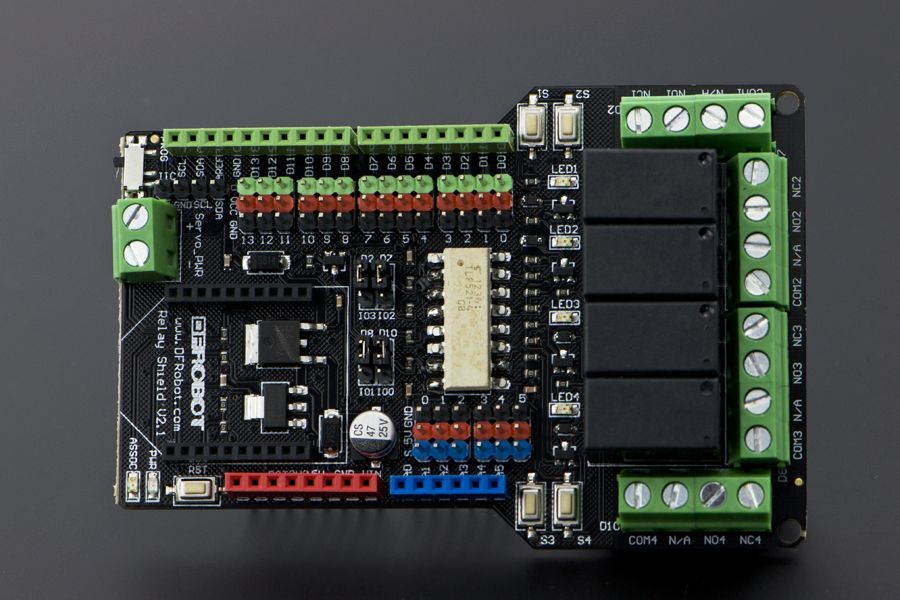

This DFRoobot Relay Shield  V2.1 is a completely new design which  is capable of controlling 4 relays at a time.  The max switching power could be DC 90W or AC 360VA. It could be directly controlled by Arduino/DFRduino controllers through digital I/Os with external 9V supply. With built-in Xbee socket, it can be wirelessly controlled via Xbee/bluetooth/WPM.

Features

  • Compatible with Arduino UNO Rev3
  • Each Relay has its own test button to test the connection
  • Standard DFRobot 3 Pin out
  • XBee I/O direct control

Specification

  • Compatible with Arduino Rev3
  • 4 buttons to test module
  • LED status indicator of relay
  • Support Xbee IO directly control
  • Xbee socket for wireless communication
  • Selectable digital IO pin for control(Default digital 2,7,8,10)
  • 6 channels Analog IO & 13 channels Digital IO
  • Up to 4 Relay with photo-coupled circuit
  • Contact Rating  3A AC 120V / DC 24V
  • Max Switching Voltage  AC 240V / DC 60V
  • Max Switching Current  5A
  • Max Switching Power  AC 360VA / DC 90W
  • Electrical Life (Min)  100,000 Operations
  • Mechanical Life (Min)  10,000,000 Operations
  • Safety Standard(relay)  UL cUL TUV CQC
  • Coil Working Voltage  9VDC
  • Working temperature  -30℃ to +85℃
  • Working temperature  40% - 85%

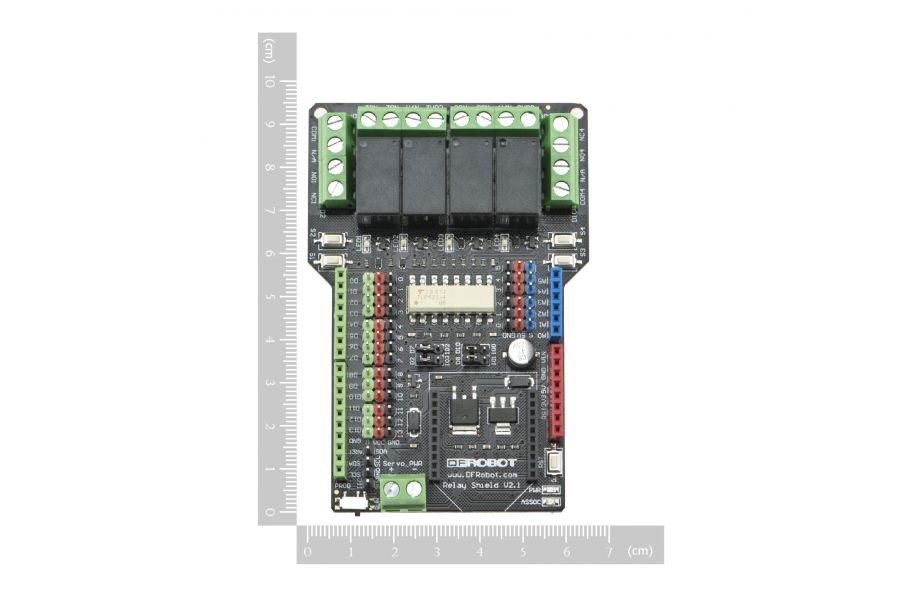

  • Size:95x65mm
