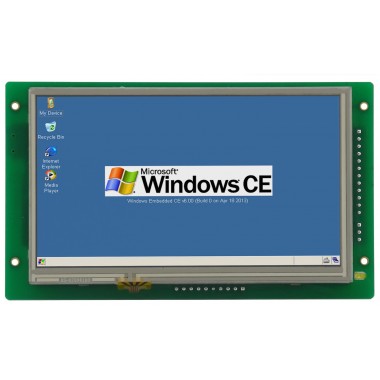

7.0 Inch High-Brightness Industrial Computer

7.0 Inch High-Brightness Industrial Computer

Computadora de tipo industrial de panel con pantalla de táctil de 7 pulgadas. Está basada en Sitara AM3354 y corre Linux o Windows CE.

COD: CS80480T07002R

Peso: 0.400 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 9213.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



The Embedded PC 7LR-HB is an embedded industrial computer with an ubeatable cost-to-performance ratio. The Embedded PC 7LR-HB features a 7-inch, 800 x 480 pixel display with 400 nit high-brightness and resistive touch screen. It is powered by a Texas Instruments 1 GHz Sitara AM3354 (ARM Cortex A8) and includes 512MB DDR 3 RAM (Industrial) and 512MB NAND FLASH (Industrial).

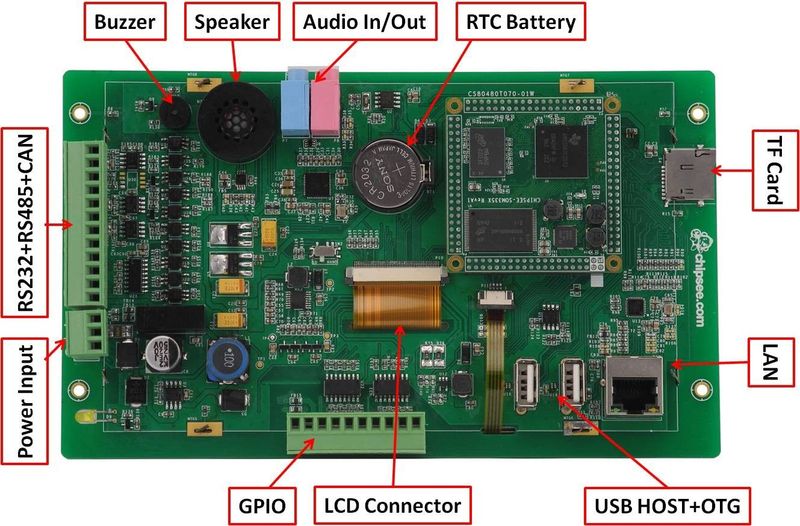

The Embedded PC 7LR-HB includes many hardware interfaces such as USB, RS232, RS485, CAN as well as multiple multiple GPIO pins and optional WiFi.

It supports Android, TI Linux, Debian, Angstrom and Windows CE6.0.

Key Features:

CPU Module SOM REV A1
Sitara Core AM3354ZCZ100

CPU

ARM Cortex A8, 1 GHz

RAM

512MB DDR3 (Industrial)

NAND FLASH

512MB NAND FLASH (Industrial)

Storage

uSD card, supports up to 32GB SDHC

7-Inch Display

800x480 Pixel resolution

Display Brightness 400 nit

Touch

Resistive Touch

USB

2 x USB 2.0 Host

(can be customized to 1 x Host 1x Slave)

LAN

1 Channel 100M LAN

Audio

Internal Speaker,

3.5mm Audio In/Out Connector

Buzzer

1

RTC

Yes

RS232

2 Channels *

1000V DC Isolated

RS485

2 Channels *

1000V DC Isolated

CAN

1 Channel - 1000V DC Isolated*

(drivers available for TI Linux, Debian and Angstrom only)

GPIO

4 Input,4 Output, 1000V DC Isolated

WiFi External WiFi, Optional
3G No
Enclosure No
Power Input 6~42V DC
Current @ 12V 600 mA max
Power Consumption 5W
Working Temperature -20°C to +70°C

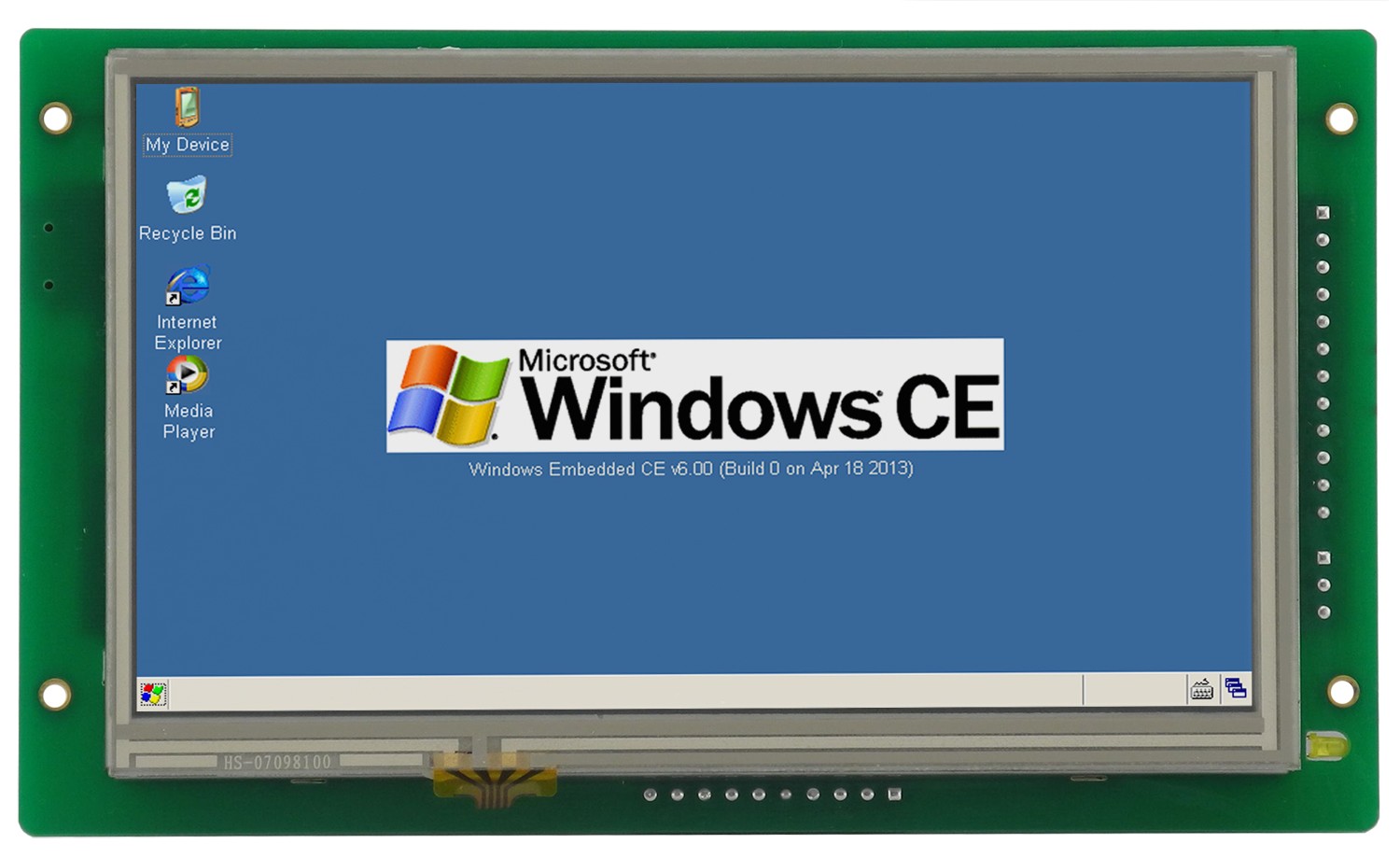

Operating System Windows CE 6.0

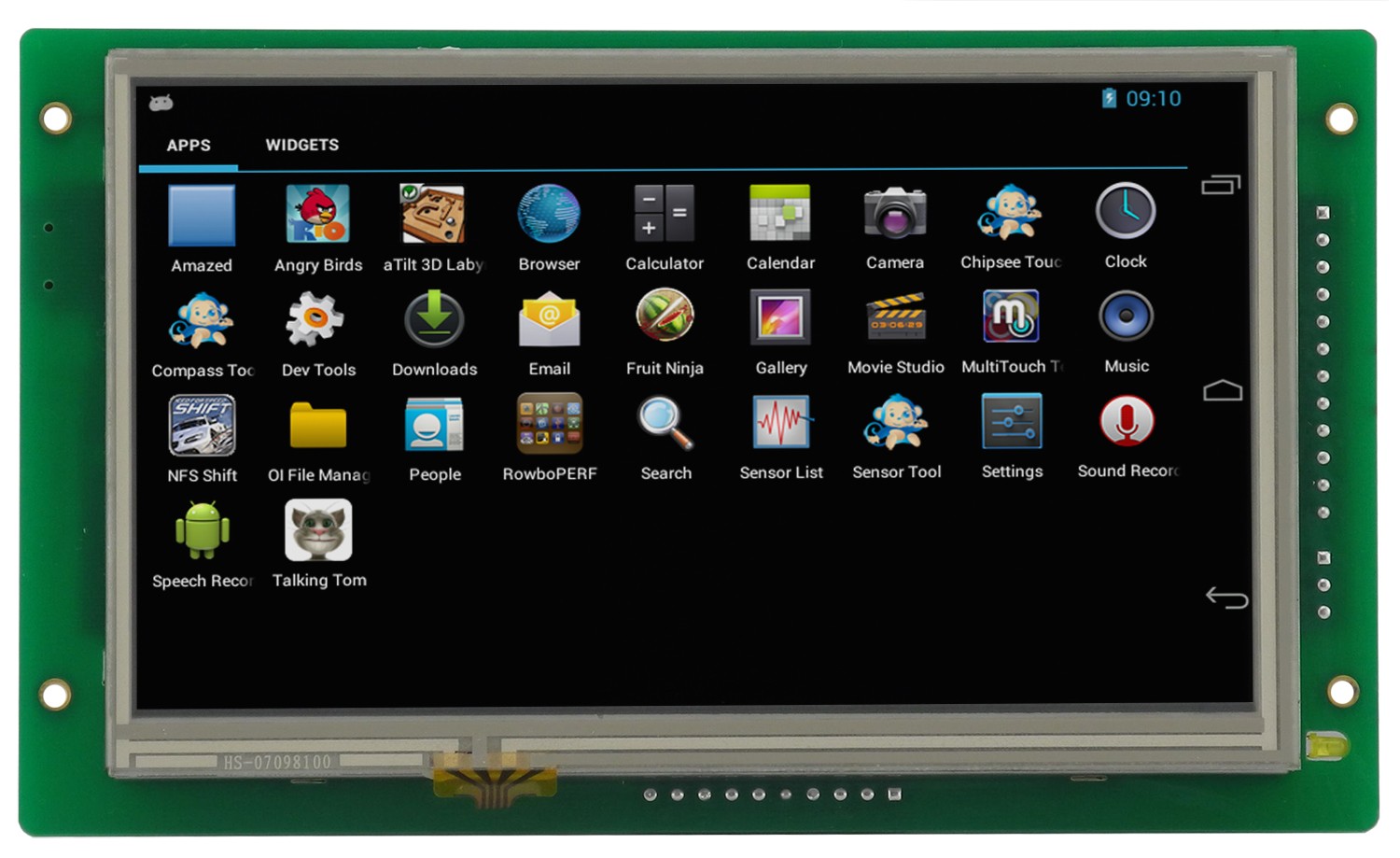

Android

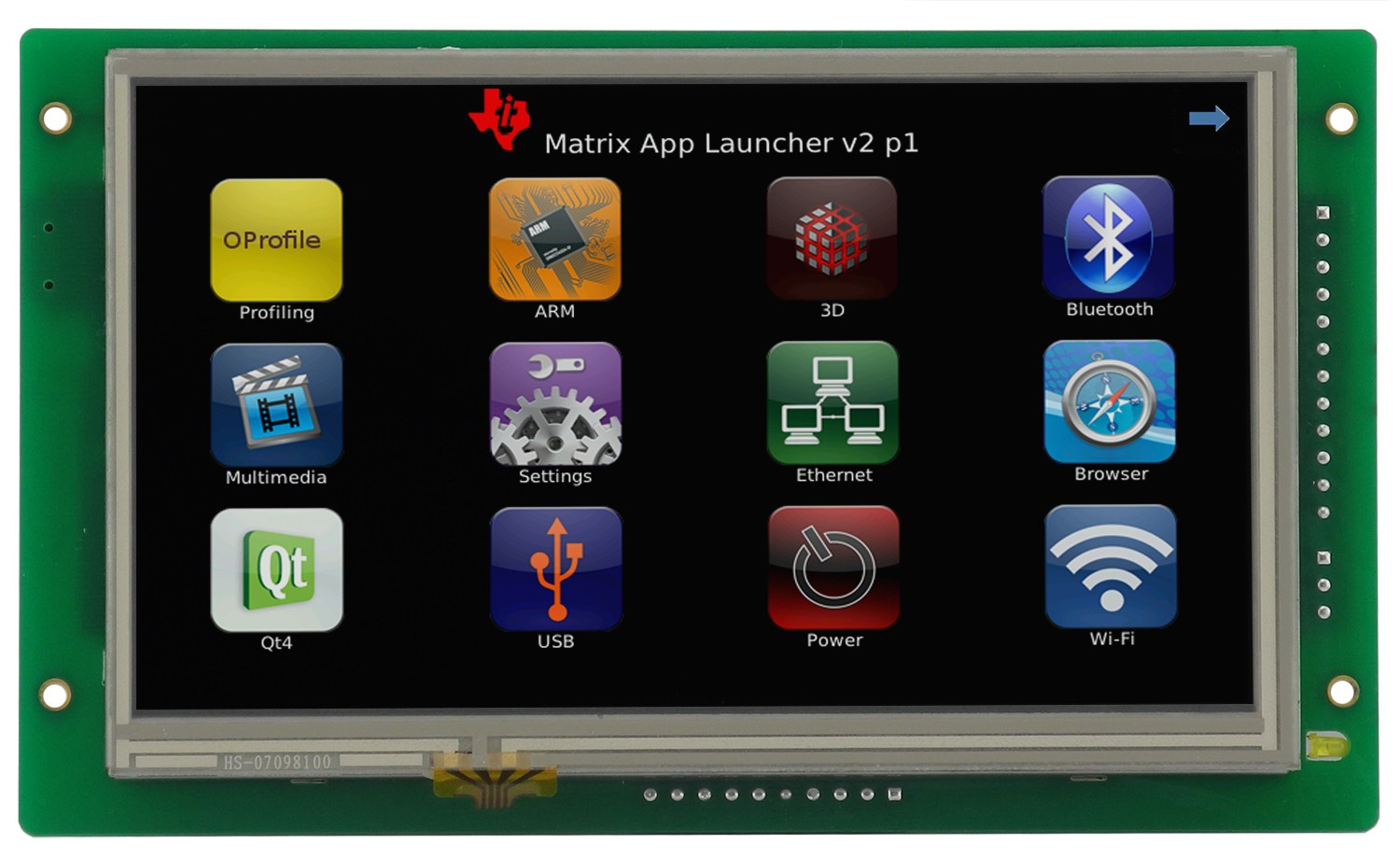

TI Linux

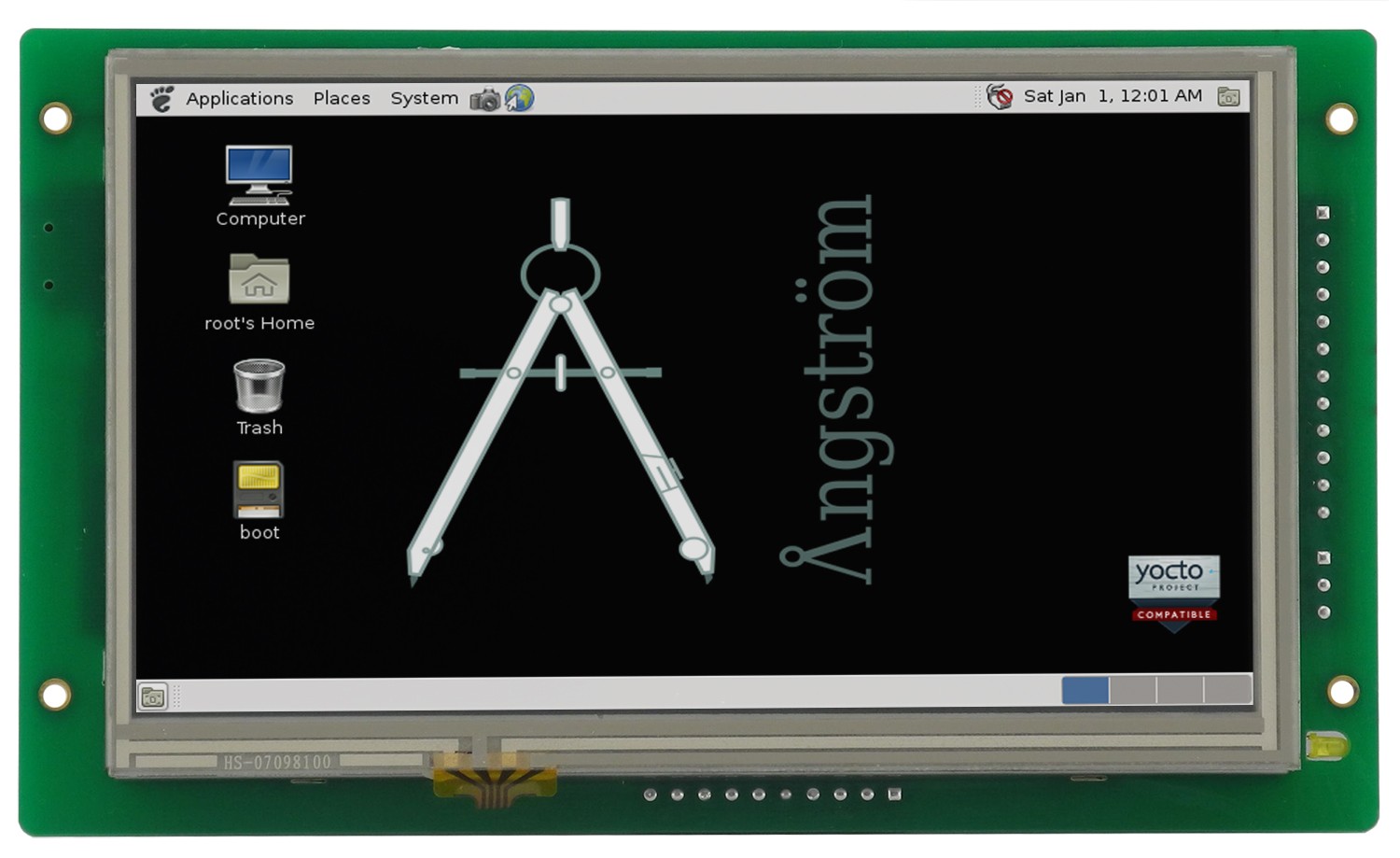

Angstrom

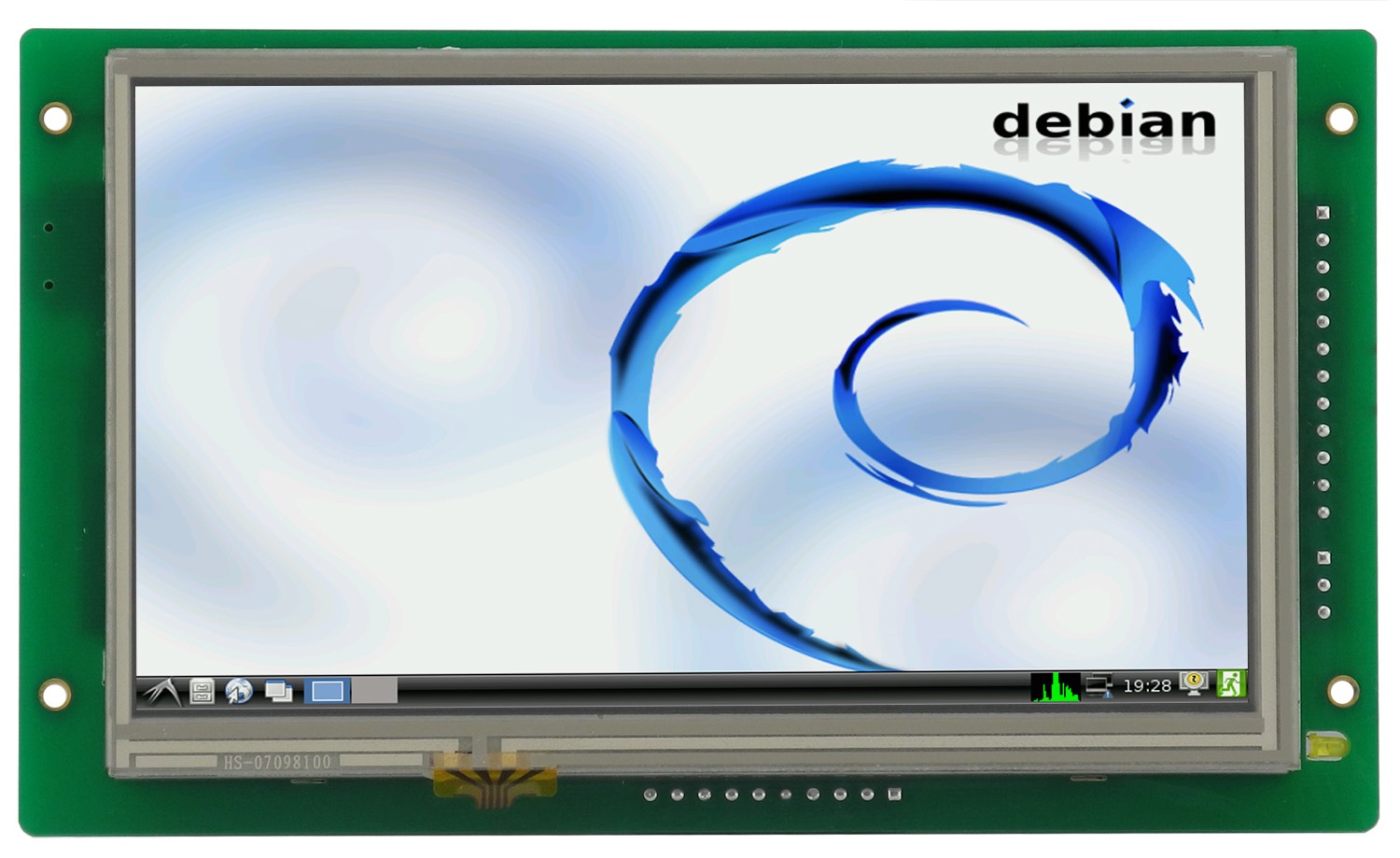

Debian

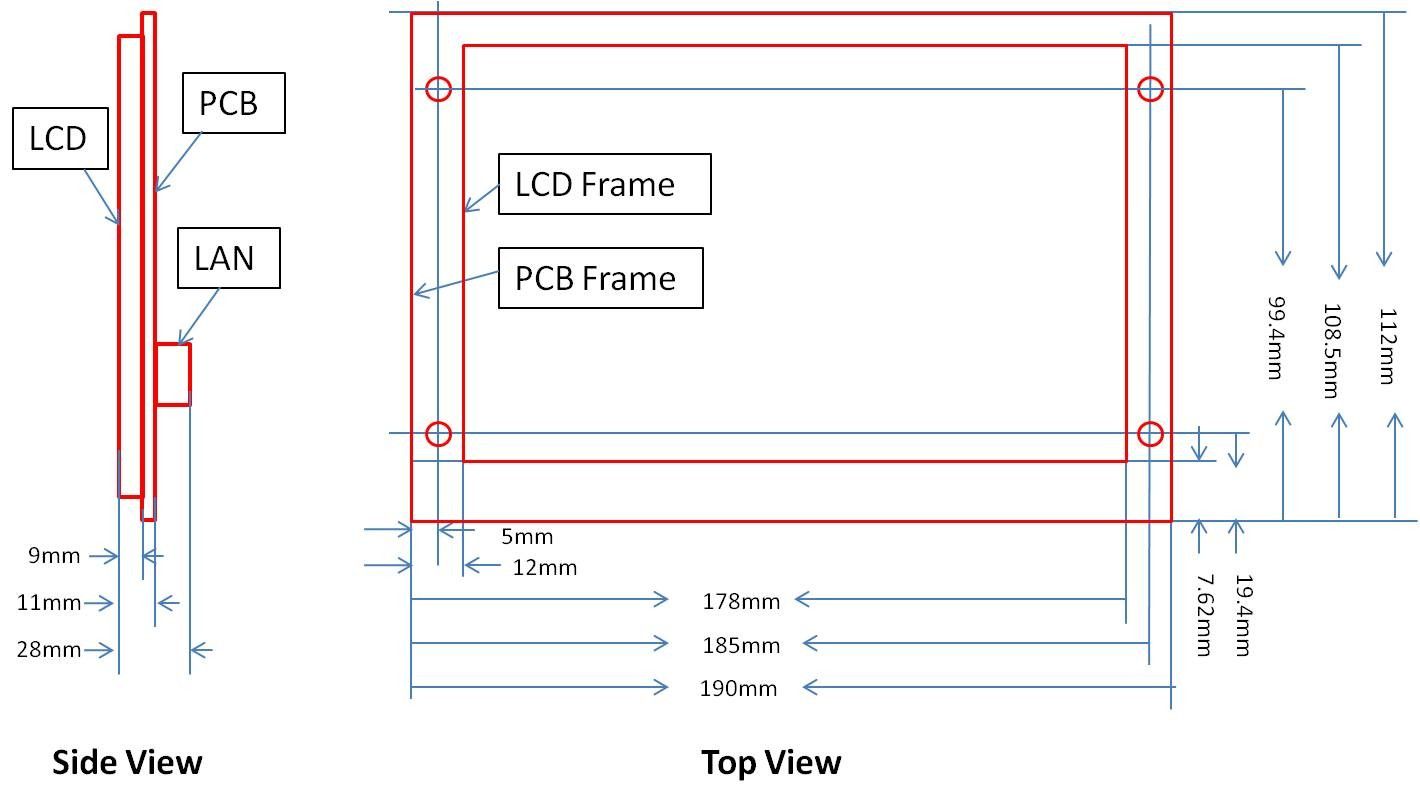

Dimension

190mm x 112mm x 28mm

Weight  410g
Installation 4 x Mounting Holes with 3mm diameter
CE Certification Yes
RoHS Compliant Yes



* The RS232, RS485 and CAN channels may be customized to the following arrangements:

  • 2 x RS232, 2 x RS485, 1 x CAN (default)
  • 2 x RS232, 1 x RS485, 2 x CAN



What's in the Box:

  • Embedded PC 7LR-HB
  • Windows CE licence
  • DVD with
    • User Manual
    • Reference Application Software
    • Linux EZ SDK Image (optimized for TI AM335X platform)
