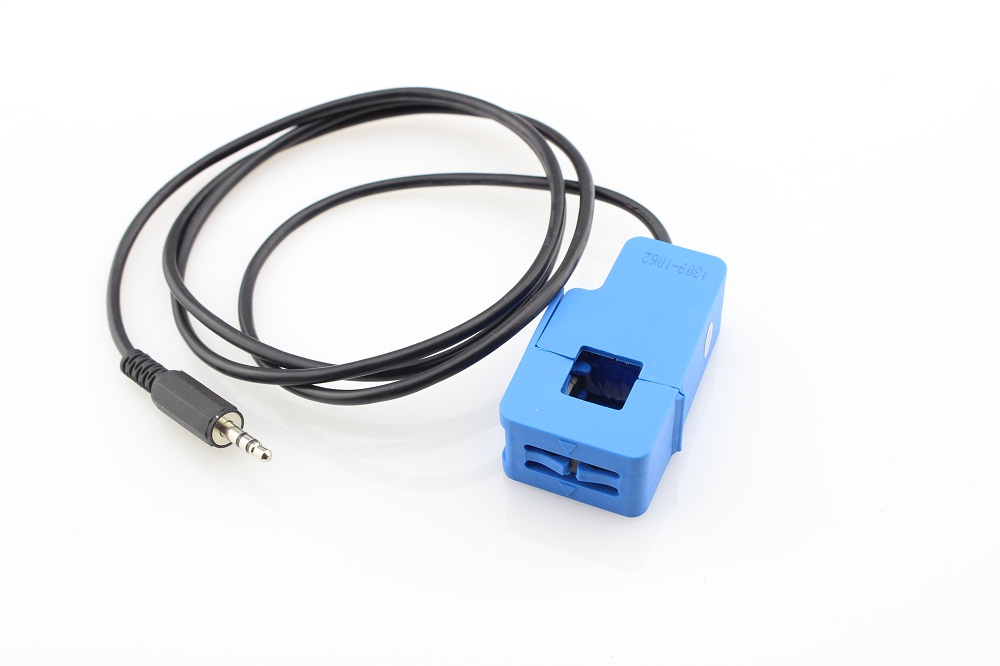

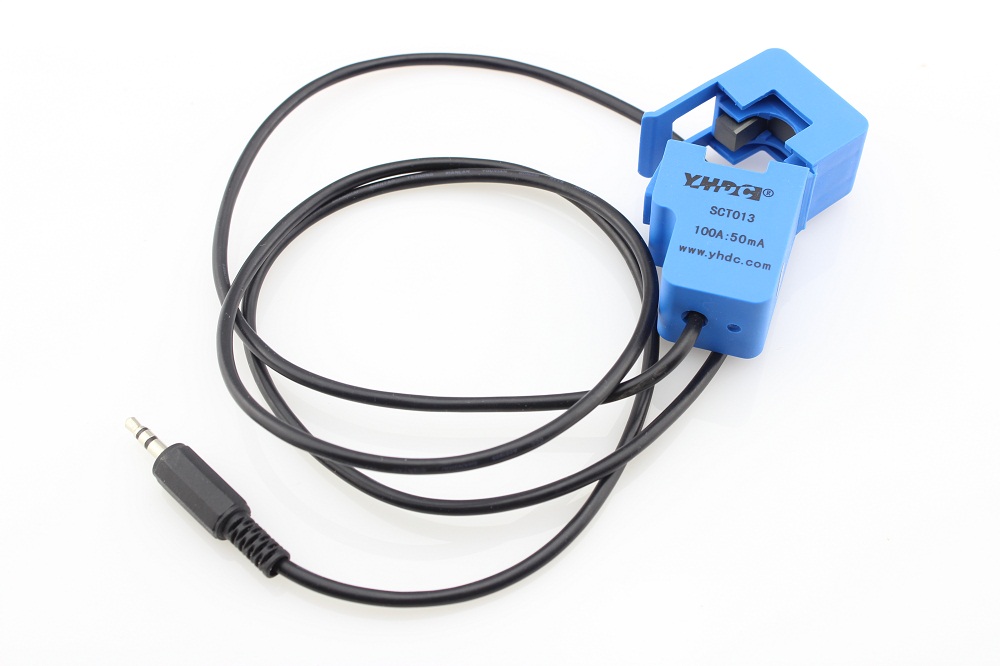

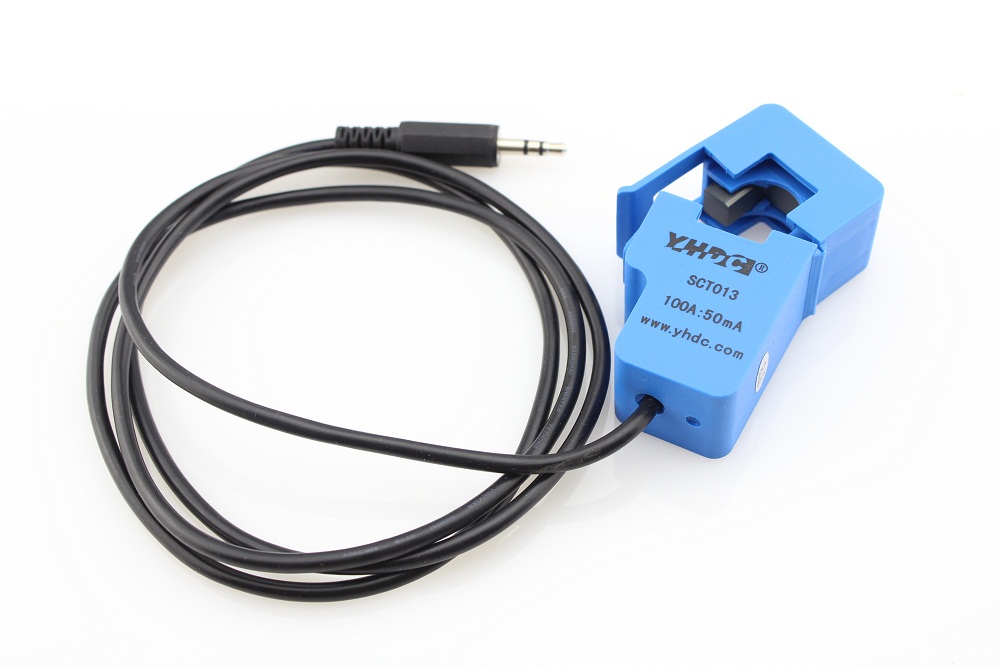

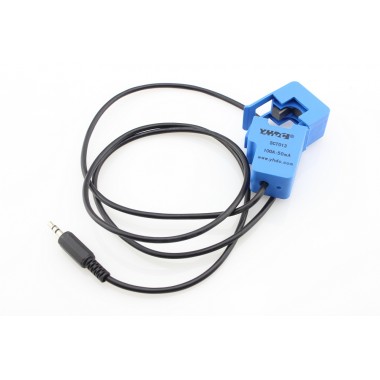

Non-invasive AC Current Sensor-100A

Non-invasive AC Current Sensor-100A

Sensor de corriente alterna de tipo transformador. Soporta hasta 100 A.

COD: ESEL98100NI

Peso: 0.075 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 261.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The AC current sensor is based on Current transformers, it transforms the big AC current to little, and then convert to voltage with the build-in resistor so users can get the AC current value via measuring the output voltage with any microcontroller such as Arduino. The split core type makes this sensor suitable for DIY usage such as energy monitoring for house & building.

Specification

  • Input Current: 0~100A AC
  • Output Mode: 0~50mA
  • Non-linearity: ±3%
  • Turn Ratio: 100A:0.05A
  • Resistance Grade: Grade B
  • Work Temperature: -25°C ~ ﹢70°C
  • Dielectric Strength(between shell and output): 1000V AC/1min 5mA
  • Leading Wire in Length: 1m
  • Open Size: 13mm x 13mm

Wiki & External links

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (07/09/2016 - 12:27)

Hola Andres, repondremos el producto y te llegará un correo automático apenas ingrese. Saludos!

Andres (06/09/2016 - 12:31)

Hola, sabés si reponés este producto? Saludos
