BMP180 Barometric Pressure/Temperature /Altitude Sensor- 5V ready

BMP180 Barometric Pressure/Temperature /Altitude Sensor- 5V ready

Breakout con sensor de presión barométrica BMP180. Es la nueva generación del popular BMP085 y es ideal para medición de altitud.

COD: D001603

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 28171.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

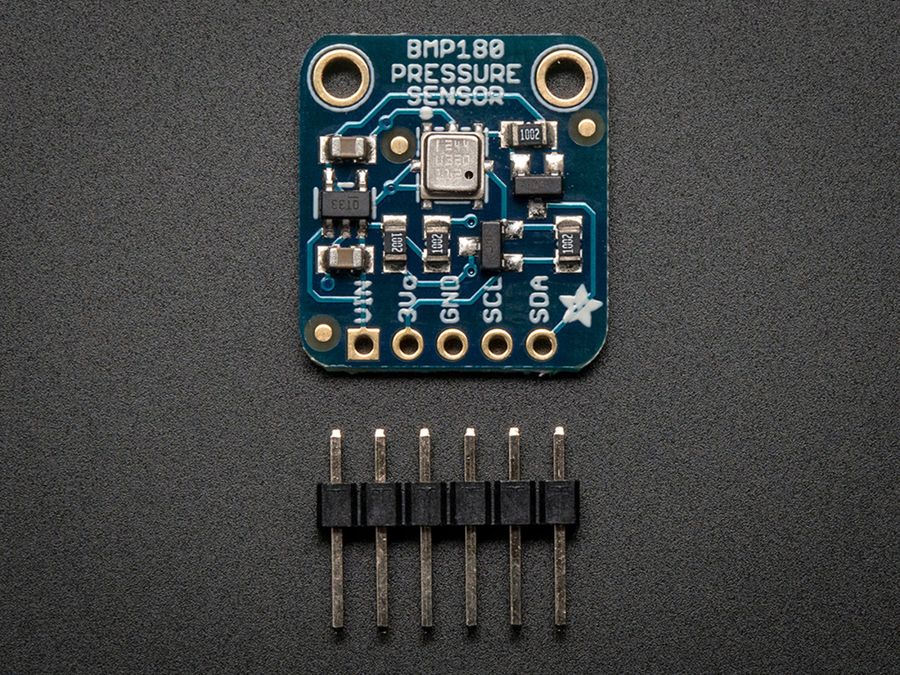

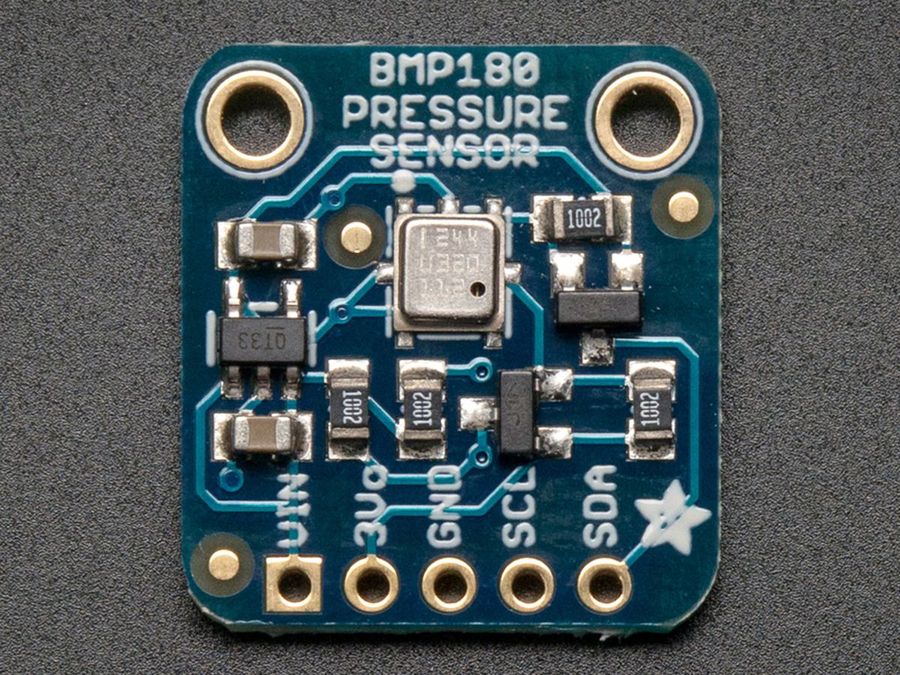

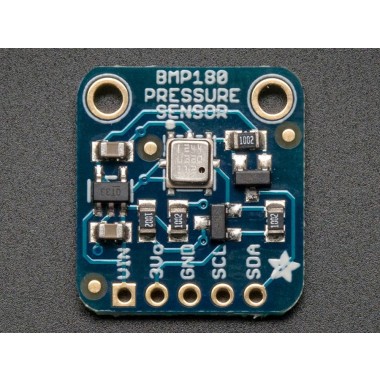

This precision sensor from Bosch is the best low-cost sensing solution for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resistors on the I2C pins.

The BMP180 is the next-generation of sensors from Bosch, and replaces the BMP085. The good news is that it is completely identical to the BMP085 in terms of firmware/software/interfacing - you can use our BMP085 tutorial and any example code/libraries as a drop-in replacement.

This board is 5V compliant - a 3.3V regulator and a i2c level shifter circuit is included so you can use this sensor safely with 5V logic and power.

Using the sensor is easy. For example, if you're using an Arduino, simply connect the VIN pin to the 5V voltage pin, GND to ground, SCL to I2C Clock (Analog 5) and SDA to I2C Data (Analog 4). Then download our BMP085/BMP180 Arduino library and example code for temperature, pressure and altitude calculation. Install the library, and load the example sketch. Immediately you'll have precision temperature, pressure and altitude data.

Technical Details

  • Vin: 3 to 5VDC
  • Logic: 3 to 5V compliant
  • Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level)
  • Up to 0.03hPa / 0.25m resolution
  • -40 to +85°C operational range, +-2°C temperature accuracy
  • This board/chip uses I2C 7-bit address 0x77.
