Impresora 3D Printrbot Kit 2014 Model
Kit para armar impresora 3D, con todo lo necesario para iniciarse en el mundo de impresión 3D. Nueva versión mejorada, con sensor de proximidad inductivo para el eje Z, acople flexible metálico en el motor del eje Z, motor más potente en el eje Y, y tracción mediante poleas y correas dentadas para los ejes X e Y. Incluye rollo muestra de PLA.
COD: D001735
Peso: 3.946 Kg
Disponibilidad: Sin Stock
ARS 0.00
El producto no está disponible para la venta en este momento
Características
Description

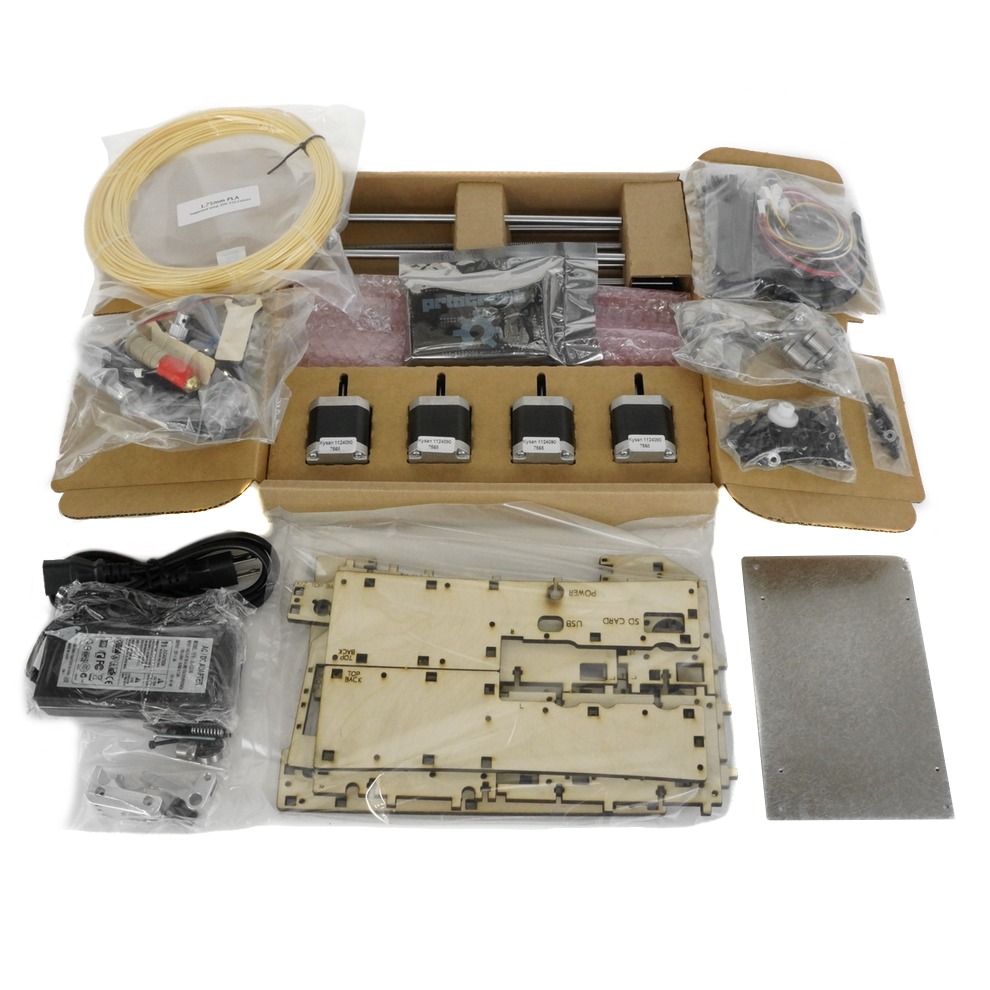

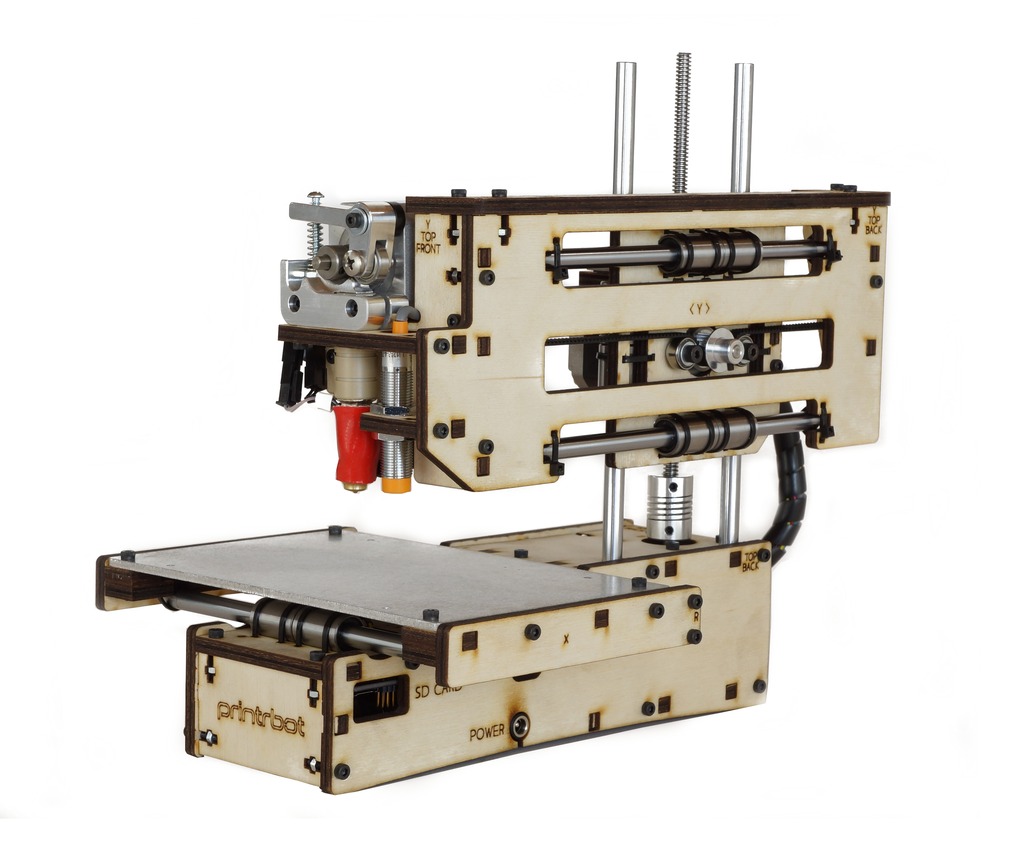

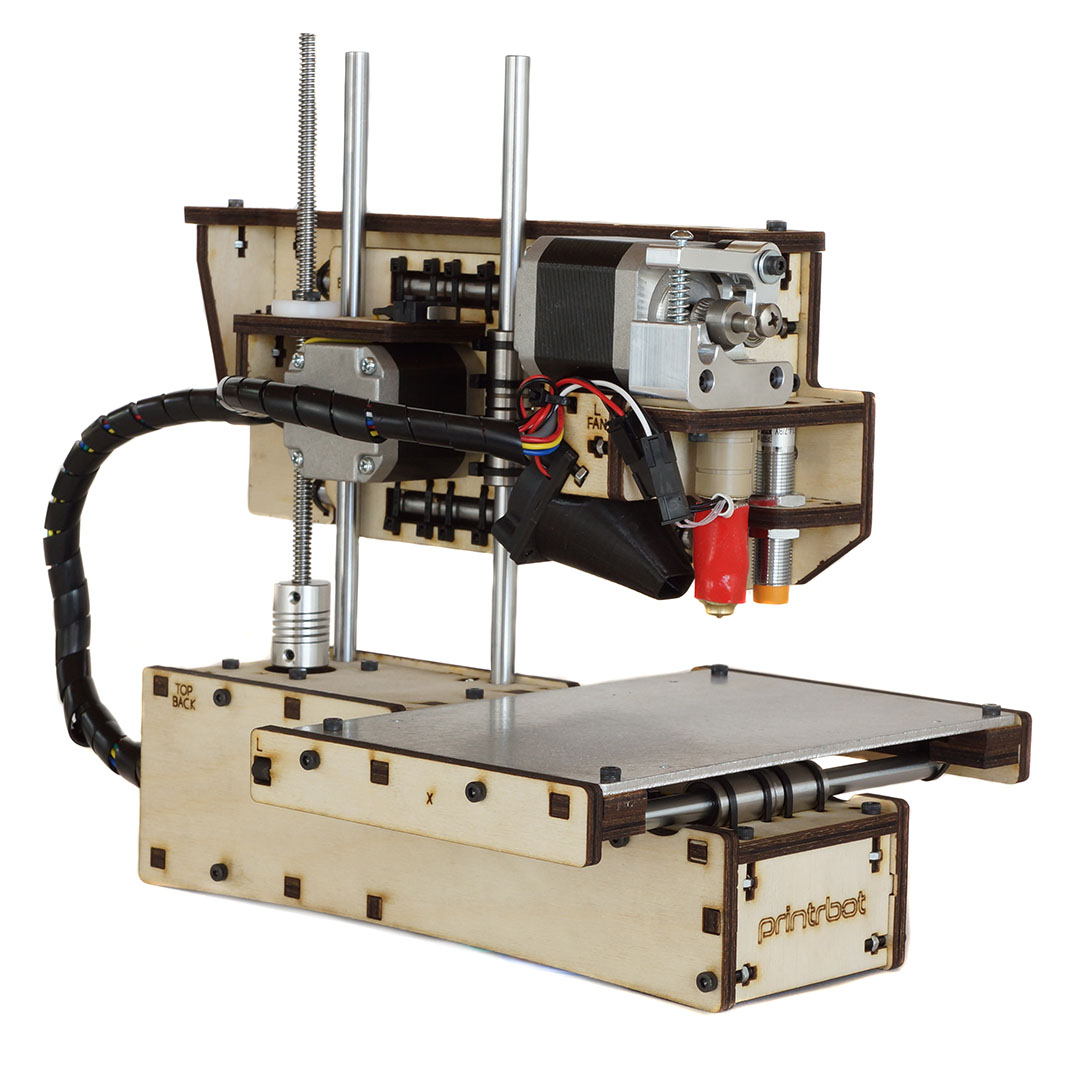

The Printrbot Simple is an exercise in 3D printing minimalism. It includes only what is needed to get started in the world of 3D printing. After building this kit you'll have a fully-functioning 3D printer that weighs only 5 lbs and fits nicely on your desk
Please note! the Printrbot is a kit and not for beginners! You'll get all the parts to assemble your own 3D printer but it does require some technical expertise, time and effort to assemble.
Features of the Printrbot Simple Kit:
- The 2014 model comes standard with Aluminum Extruder and Aluminum print bed
- 0.1mm resolution (and beyond)
- 100mm cube of printing volume (~4″ cube)
- Printrboard electronics
- PLA only (no heat bed)
- Ubis 1.75mm Hotend
- 200lb. test fishing line – the X & Y “belts”
- 12v 5A laptop style power supply
- Outer dimensions: 7″ x 8″ x 9″
- ~5.25lb total weight
- Sample of 1.75mm PLA filament
- Fan and end stops included
- Laser cut wood parts are standard 1/4″ (6mm) thick
Technical Details
- Weight: 8.7 lbs
- Dimensions: 10" x 10" x 4"
- Build Volume: 4" x 4" x 4"
- Filament Type: PLA
- Hot End: UBis 1.75mm
- Print Resolution: 0.1mm
- Tip Size: 0.4mm
- Print Speed: 60-65mm/min
- Actual Footprint of Assembled Printrbot Simple: 8" x 14" x 11"
- Shipping Dimensions: 10" x 10" x 4"
- Shipping Weight: 8 lbs
Assembling Tutorial
http://help.printrbot.com/Guide/Simple+Maker%27s+Edition+%281405%29/123
Windows Driver
http://pjrc.com/teensy/serial_install.exe
Software Download
http://www.repetier.com/download/
Software Setup
http://www.instructables.com/id/How-to-configure-Repetier-settings-for-BEST-Pintrb/
Calibration Guide
http://joshondesign.com/p/books/simpleguide/text.html
