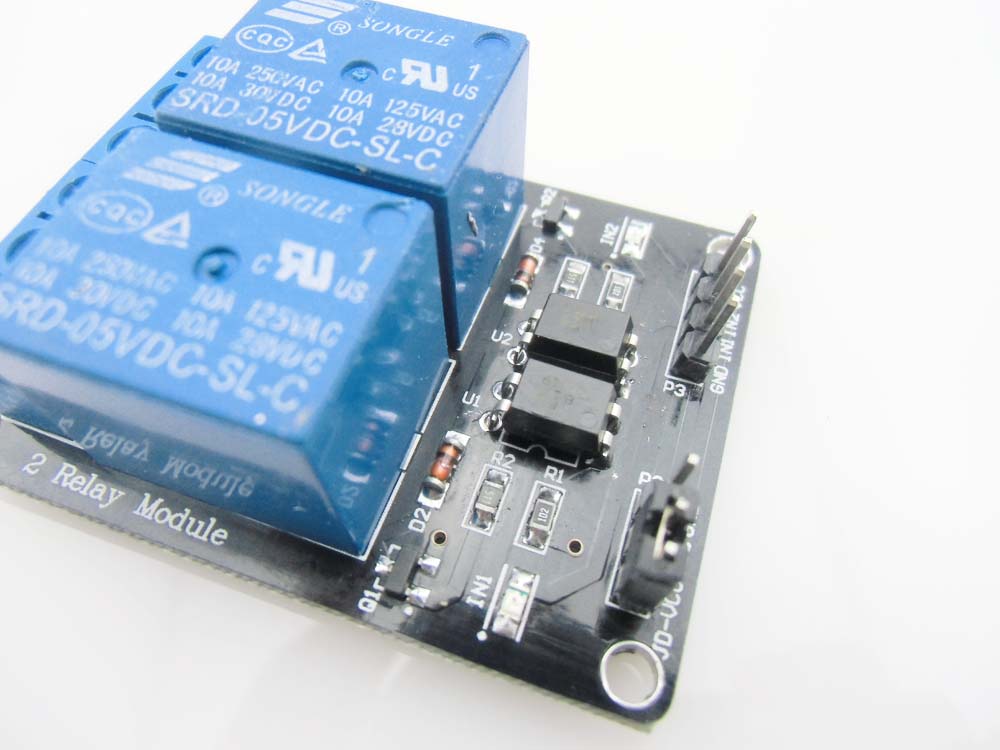

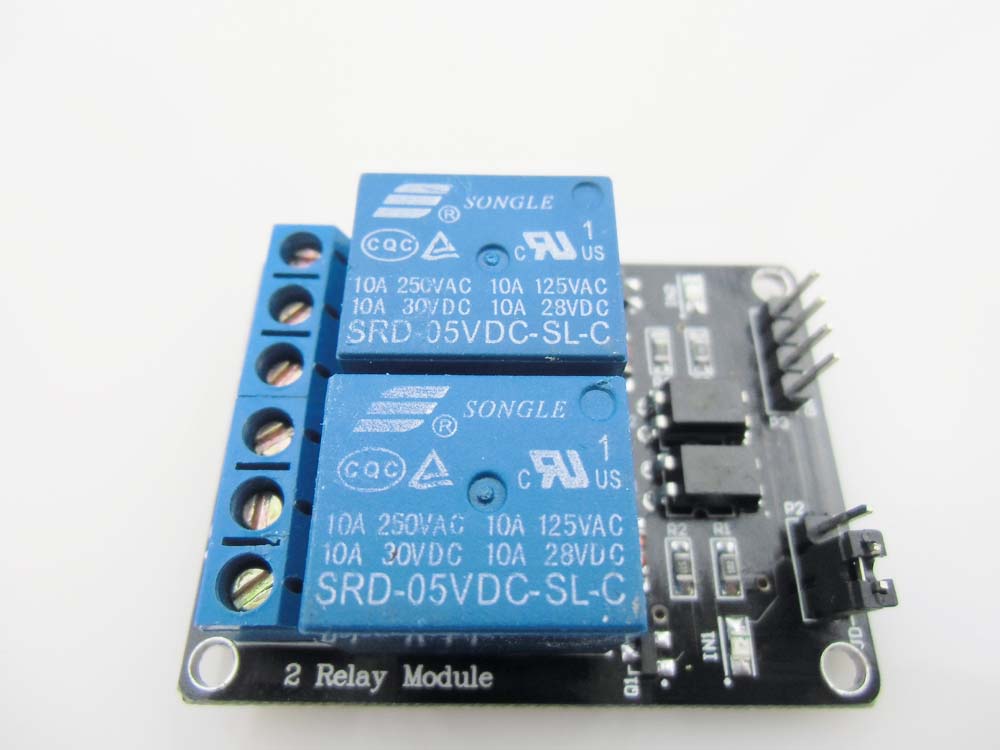

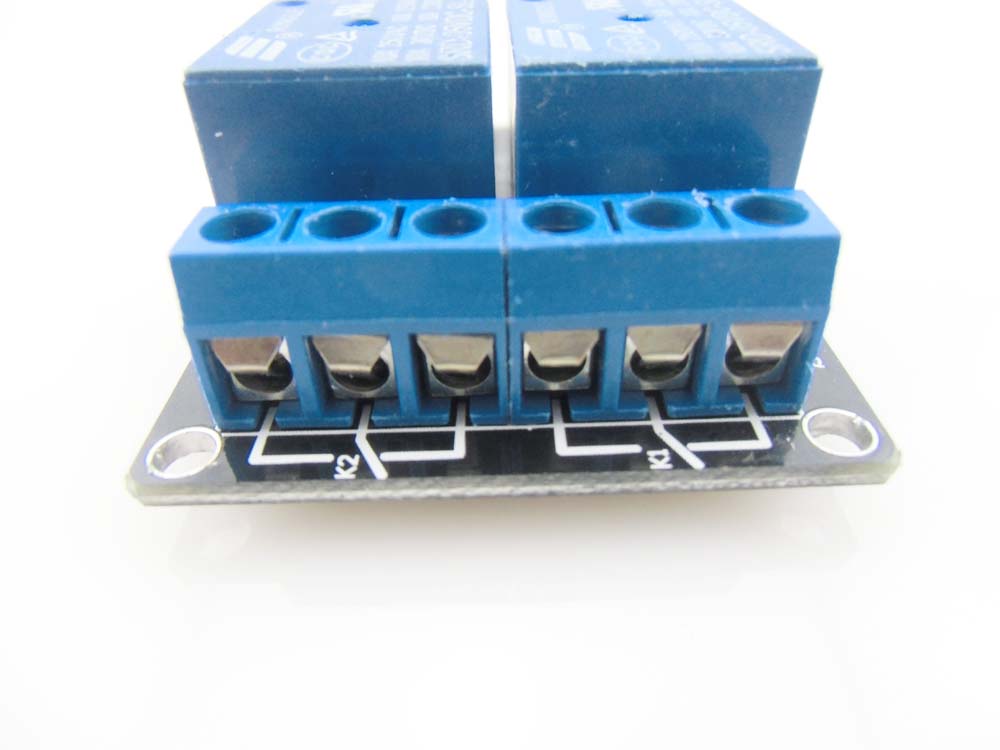

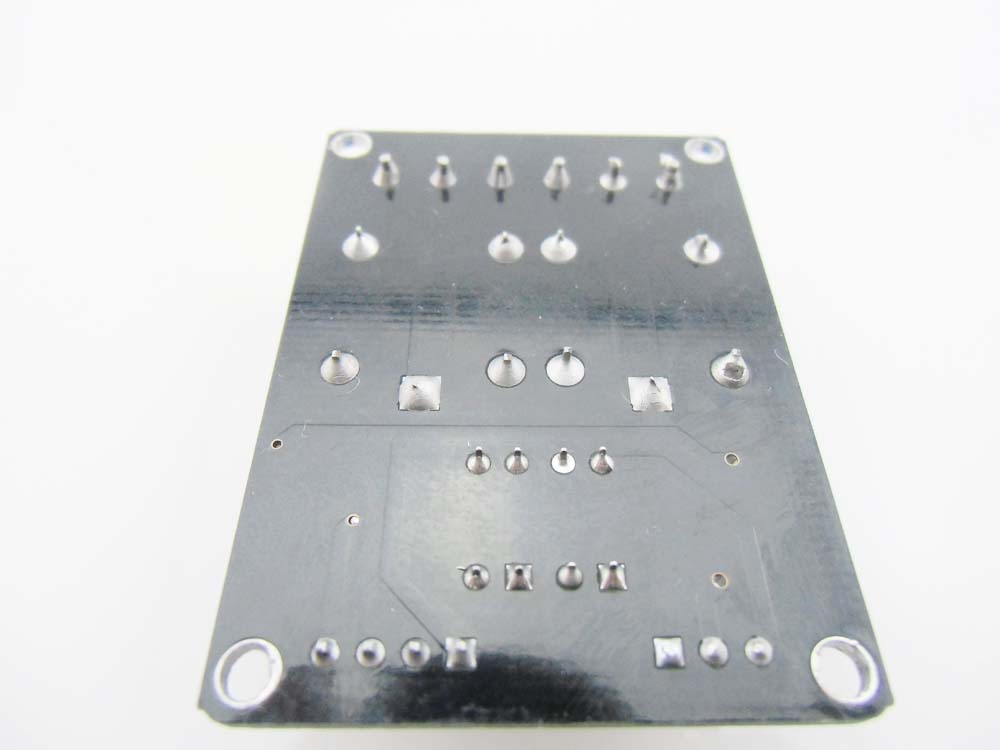

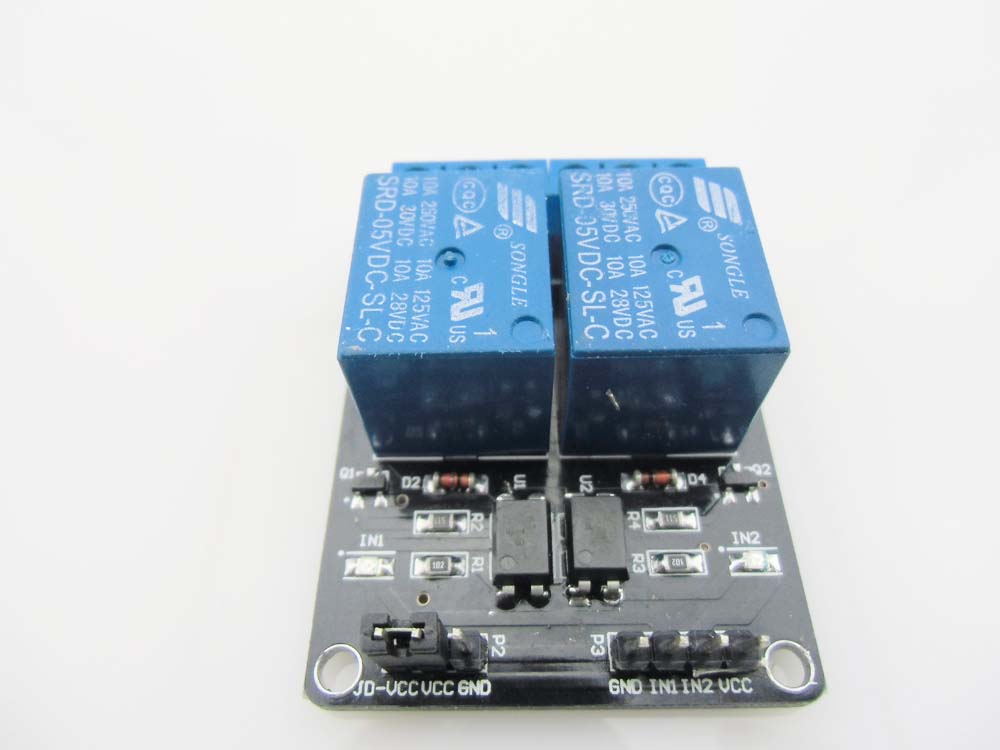

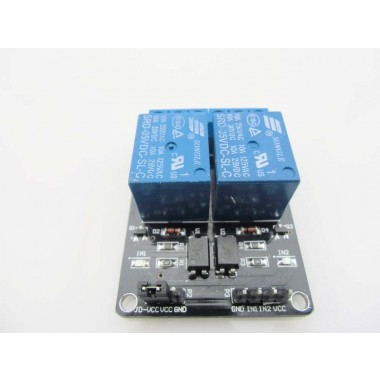

2-Channel Relay Module-10A
Módulo de 2 relés de 5V con soporte de hasta 10A.
COD: EARE00102SL
Peso: 0.040 Kg
Disponibilidad: Sin Stock
ARS 4242.00
El producto no está disponible para la venta en este momento
Características

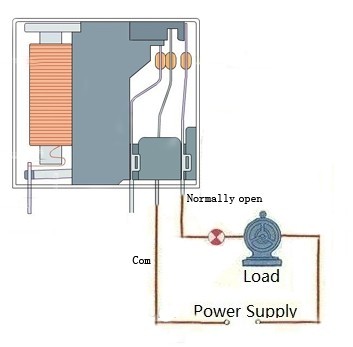

A Relay is a digital switch to control much higher voltages and currents than your normal Arduino boards does. When inputs a logic voltage, the relay will switch to allow current to flow or cutoff, depending on your wiring. A Relay usually consists of a coil, 1 common terminal, 1 normally closed terminal and one normally open terminal. When the coil is energized, the common terminal and the normally open terminal will have continuity.
Why do we want to use a relay and do we really need to? Anytime you want to switch on/off a device which draws more current or works with a high voltage, you'll need to use a relay, such as controlling of headlights, parking lights, horns, etc.
Specification
- Control Voltage: 5V DC
- Max Control Capacity:10A@250VAC or 10A@30VDC
Schematic (49 Kb)
