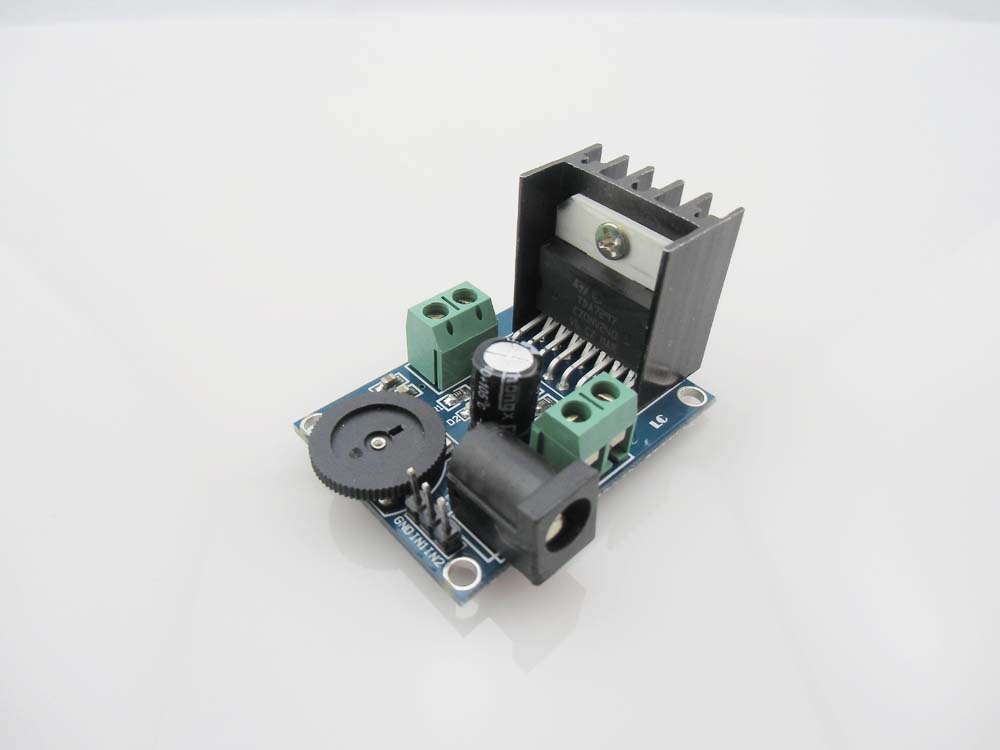

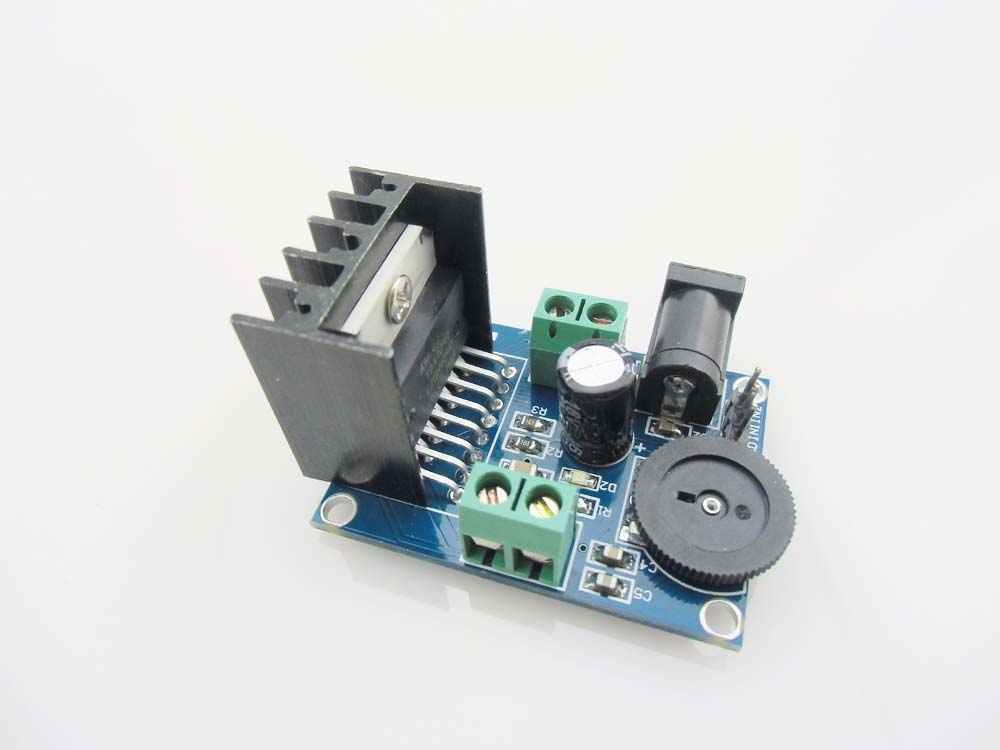

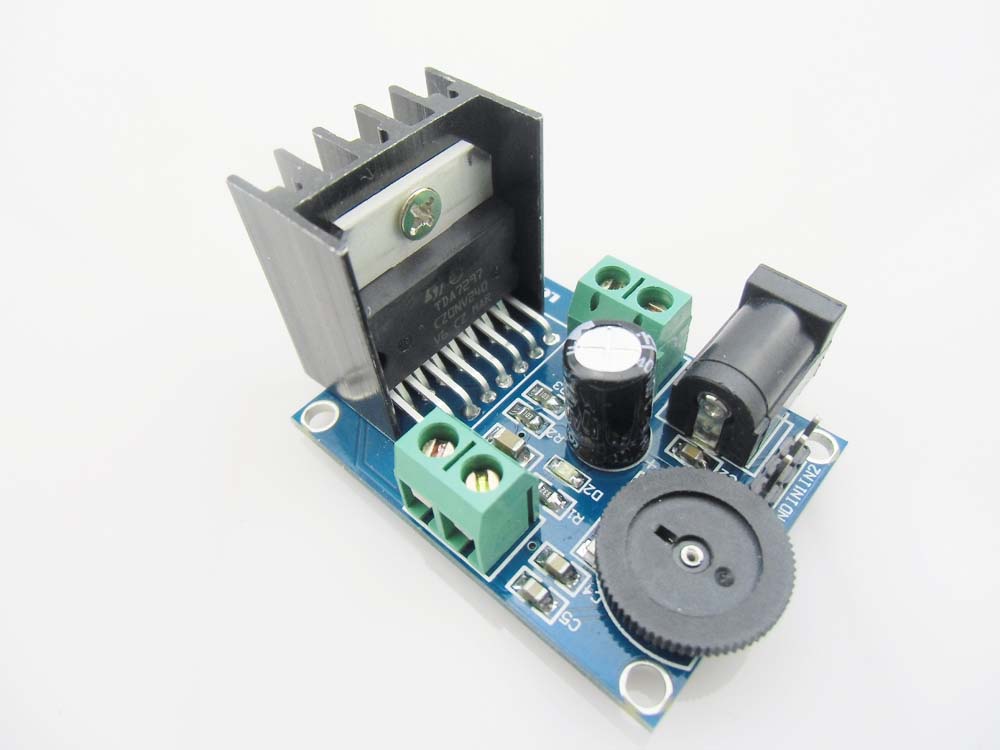

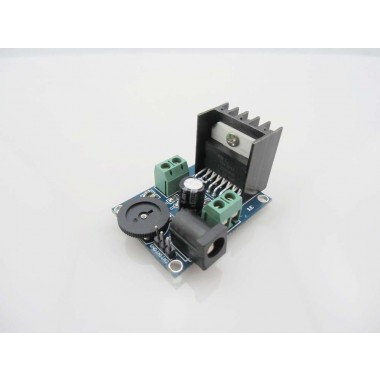

TDA7297 Audio Amplifier Module

TDA7297 Audio Amplifier Module

Módulo amplificador estéreo (15W+15W) basado en TDA7297

COD: EATD7297AA

Peso: 0.060 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 438.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



How to make your speaker more louder or DIY computer speaker? This TDA7297 Audio Amplifier module is just right one for you. This audio amplifier board has no current impact sound when booting, low static noise, and a high quality sound: treble delicate, soft, transparent, no harsh; bass strong, full, strong, and acting freely.

The amplifier has been equipped with a heat sink to solve the heat problem, and there is also potentiometer to adjust the loudness, bind to wire the speakers. This module has a max output power up to 15W+15W.


Features

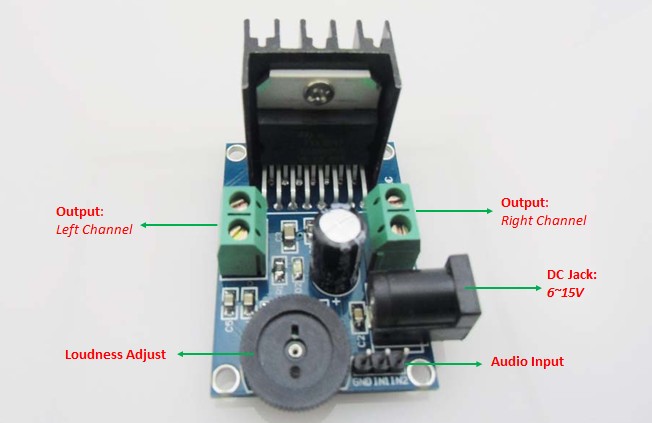

On-board audio amplifier TDA7297 chip, dual-channel 15W +15 W, suitable for 4-8 Euro 10-50W speakers
On-board 2-way 5.08 (mm) pitch 2P terminal for left and right channels
Onboard potentiometer to adjust the volume
DC Powe jack, voltage :6-18V
Board size: 45 (mm) x33 (mm)
