Triple Axis Accelerometer Breakout - ADXL335
Módulo acelerómetro de 3 ejes, con salida digital, basado en el circuito integrado ADXL335 de Analog Devices.
COD: SFSEN09269
Peso: 0.001 Kg
Disponibilidad: En Stock
ARS 33493.00
El producto no está disponible para la venta en este momento
Características

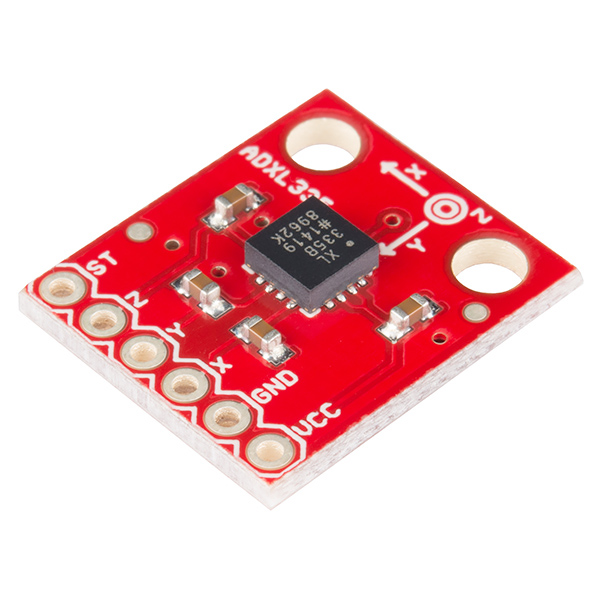

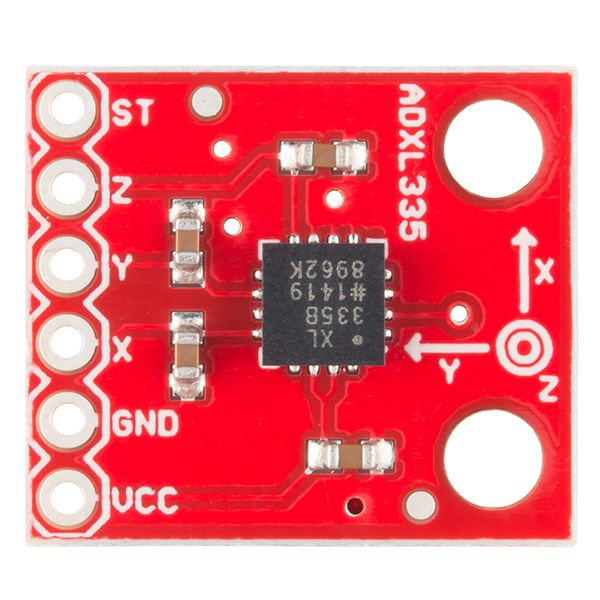

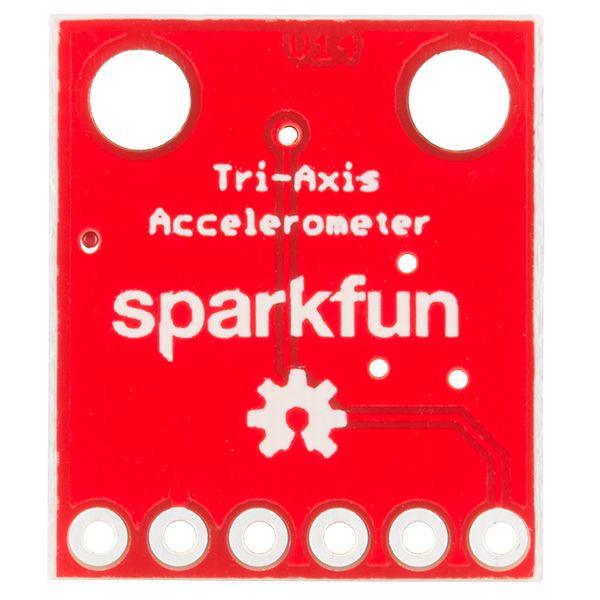

Description: Breakout board for the 3 axis ADXL335 from Analog Devices. This is the latest in a long, proven line of analog sensors - the holy grail of accelerometers. The ADXL335 is a triple axis MEMS accelerometer with extremely low noise and power consumption - only 320uA! The sensor has a full sensing range of +/-3g.
There is no on-board regulation, provided power should be between 1.8 and 3.6VDC.
Board comes fully assembled and tested with external components installed. The included 0.1uF capacitors set the bandwidth of each axis to 50Hz.

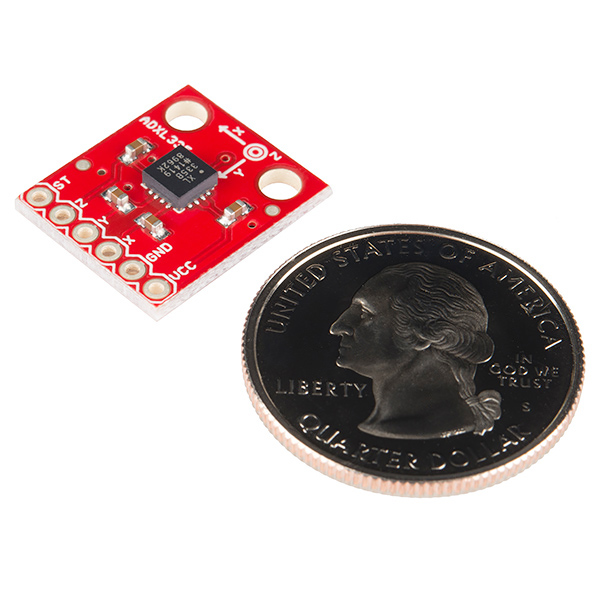

Dimensions: 0.7x0.7"
Documents:
- Schematic
- Eagle Files
- Datasheet (ADXL335)
- Wiring Example
- Bildr Example
- 3D cube project using a PIC
- GitHub
adxl335_7d.pdf (427 Kb)
adxl335_breakout.zip (37 Kb)
