Digital IMU Breakout - IMU3000
Breakout de sensor IMU3000 con giróscopo de 3 ejes. Incluye salida digital y entrada I2C adicional para acelerómetro digital.
COD: SFSEN10251
Peso: 0.001 Kg
Disponibilidad: Sin Stock
ARS 49750.00
El producto no está disponible para la venta en este momento
Características
Description: The IMU 3000 breakout features a 3-axis MEMS digital gyro with programmable ranges from +-250 to +-2000 degrees/sec. In addition, it has a secondary I2C port that interfaces with a digital accelerometer to deliver a complete 6-axis sensor output from its primary I2C port. The fusion output offloads the intensive motion processing computation requirements from the host processor, reducing the need for frequent polling of the motion sensor output and enabling low cost, low power microcontrollers.

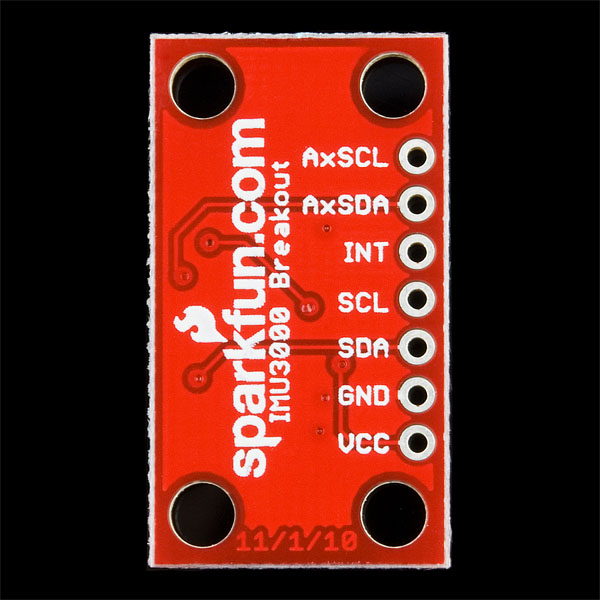

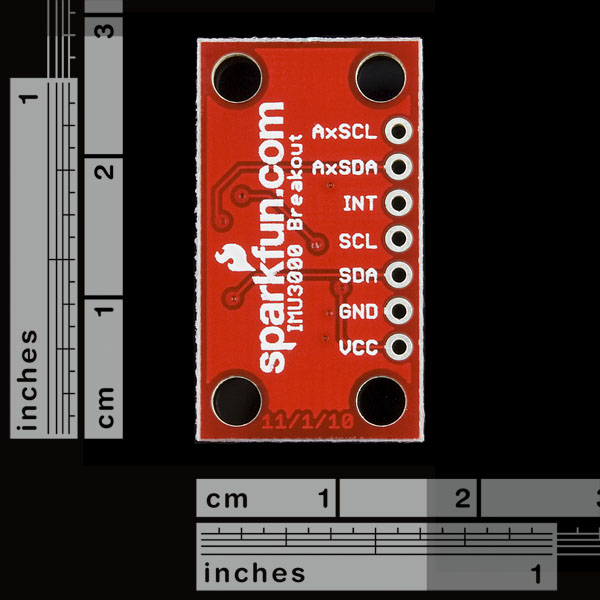

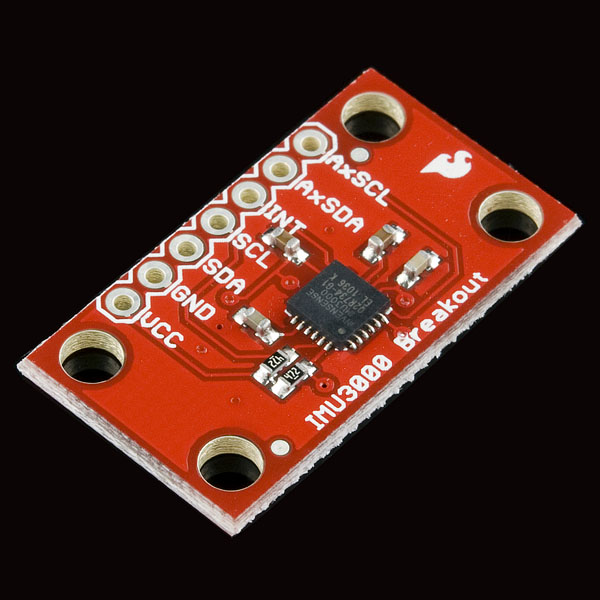

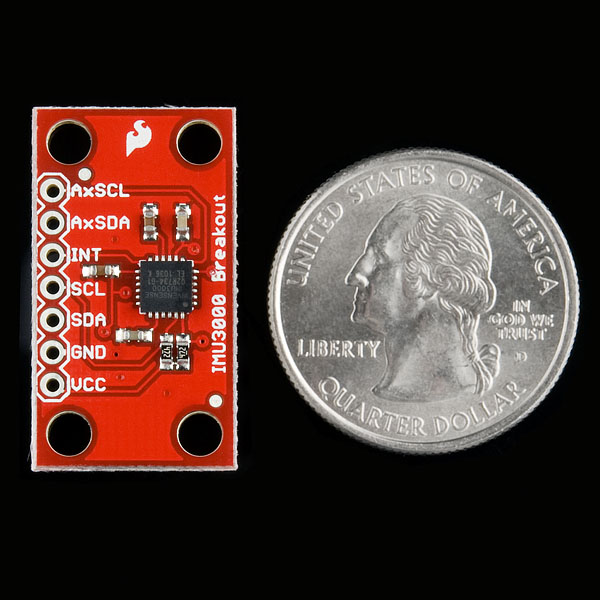

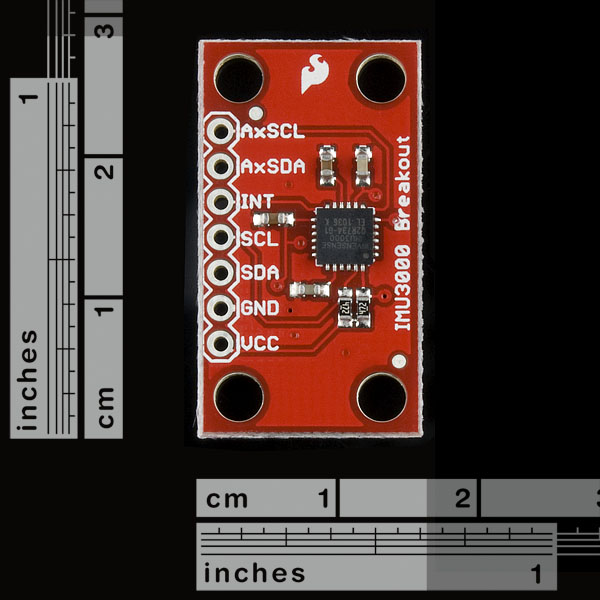

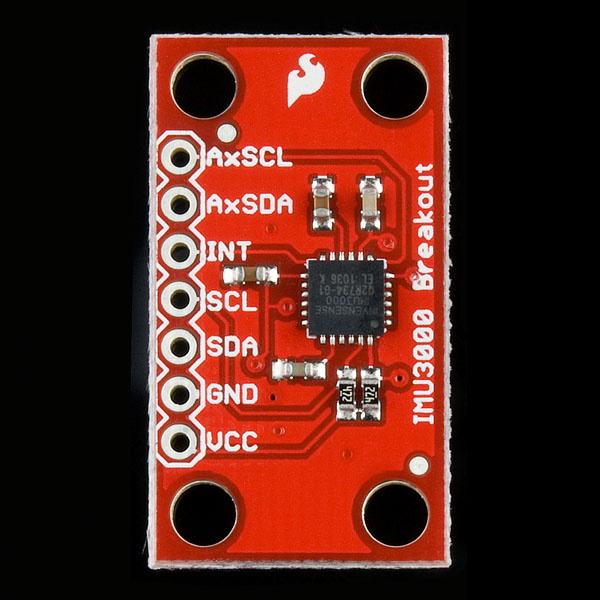

We provide you with a simple board which breaks out the necessary pins on the IMU 3000 and provides for the primary I2C output as well as the secondary I2C input for an external accelerometer.
Documents:
- Product Page (IMU 3000)
Schematic (17 Kb)
Eagle Files (26 Kb)
