Single Axis Accelerometer Breakout - ADXL193 +/-250g
Breakout con sensor ADXL193 analógico de un solo eje de ±250g.
COD: SFSEN09332
Peso: 0.001 Kg
Disponibilidad: En Stock
ARS 45354.00
El producto no está disponible para la venta en este momento
Características

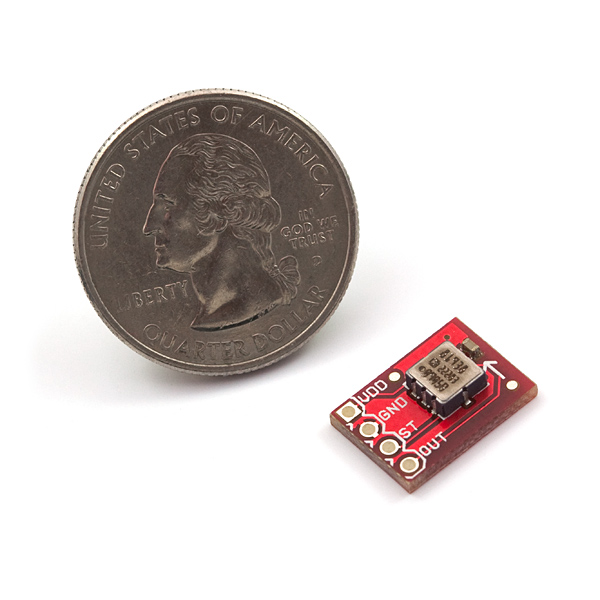

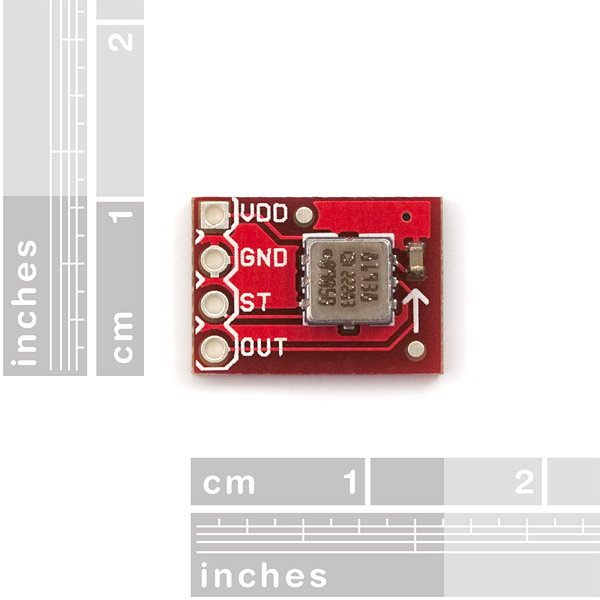

Description: Breakout board for the low power, single axis ADXL193 MEMS accelerometer. The ADXL193 is a high-g sensor with a full scale range of ±250g! The ADXL193 can be powered from 3.5-6V. Access to the self-test pin is also provided.
Note: The ADXL193 outputs an analog voltage. This voltage is in ratio to the measured acceleration and to the supply voltage. You will need some extra hardware to convert this analog signal to a usable digital one. Luckily, many uCs have a built in Analog to Digital converter.

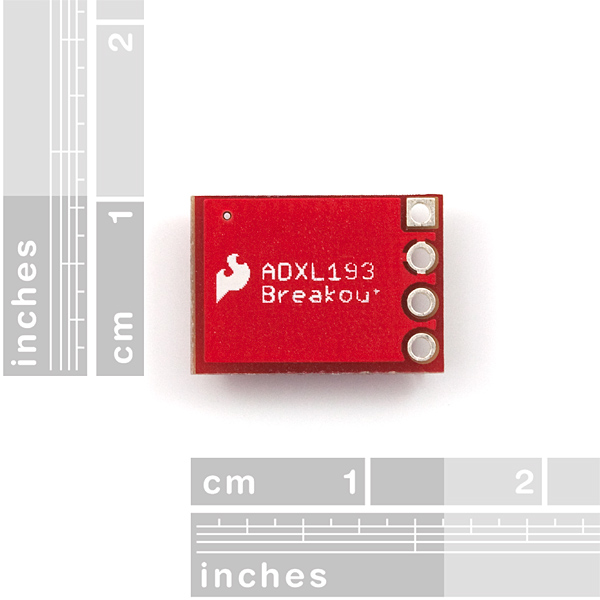

Dimensions: 0.4x0.55"
Features:
- Sensing Range: ± 250g
- Output Signal: Analog (ratiometric)
Schematic (7 Kb)
Eagle Files (19 Kb)
