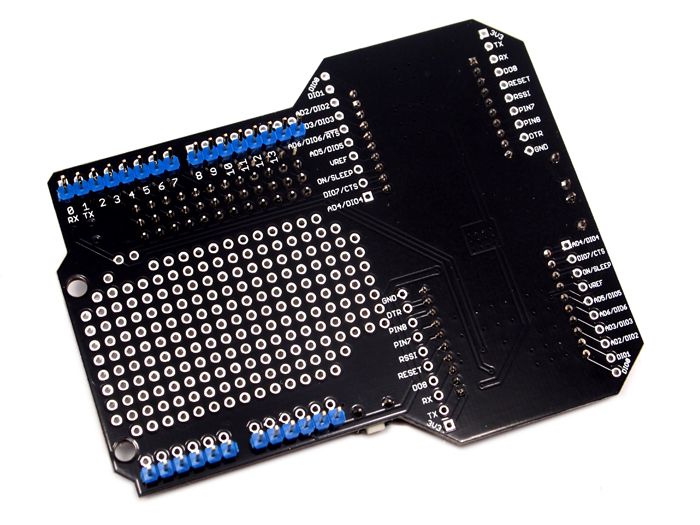

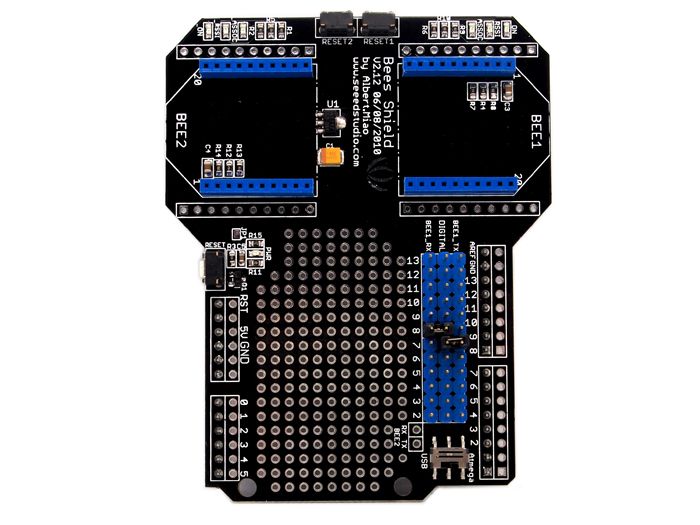

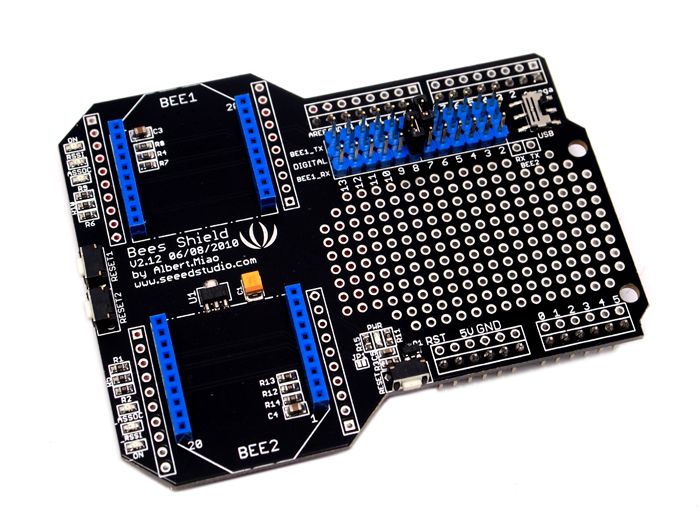

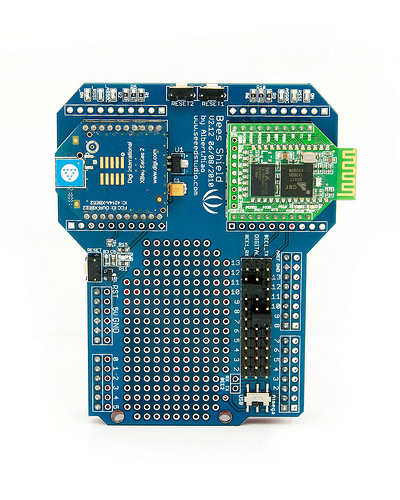

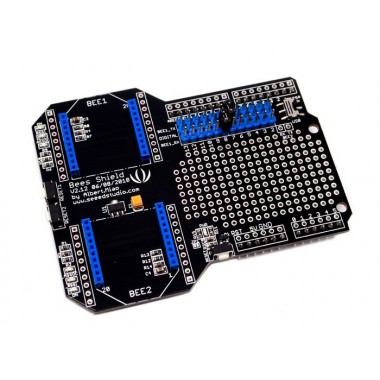

Bees Shield
Shield Arduino con soporte de módulos tipo Bee.
COD: SEINT119B2P
Peso: 0.028 Kg
Disponibilidad: En Stock
ARS 23500.00
El producto no está disponible para la venta en este momento
Características
Bees shield will make interfacing multiple Bee-style (XBee, GPS Bee, Bluetooth Bee and etc) easier than ever before. Aside from dual Bee style 20p 2.0 pitch socket, it also has large proto area, customizable software, serial, port for easier prototyping.
Features
- Dual Bee type socket
- 3 indicator LED(ON/Sleep, RSSI, ASSOC)for each Xbee
- Full size with free drills
- Reset button for each Xbee
- Reset button for base board
- Provide maximal 500mA under 3.3V
- Full break out for each Bee
- Switchable of communication with FTDI-USB /Base board
bees_shield_v2.12_source.zip (113 Kb)
Wiki (1640 Kb)
