Modulo sensor de lluvia/vapor

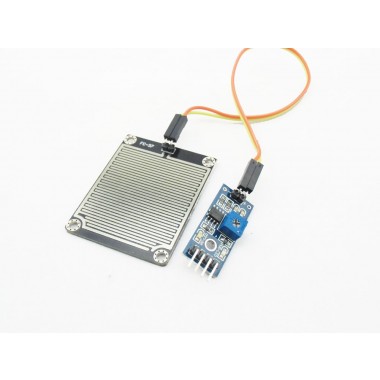

Rain/Steam Sensor

Sensor de agua de lluvia o vapor con salida analógica o digital con umbral ajustable.

COD: ESPM01021S

Peso: 0.012 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 2562.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

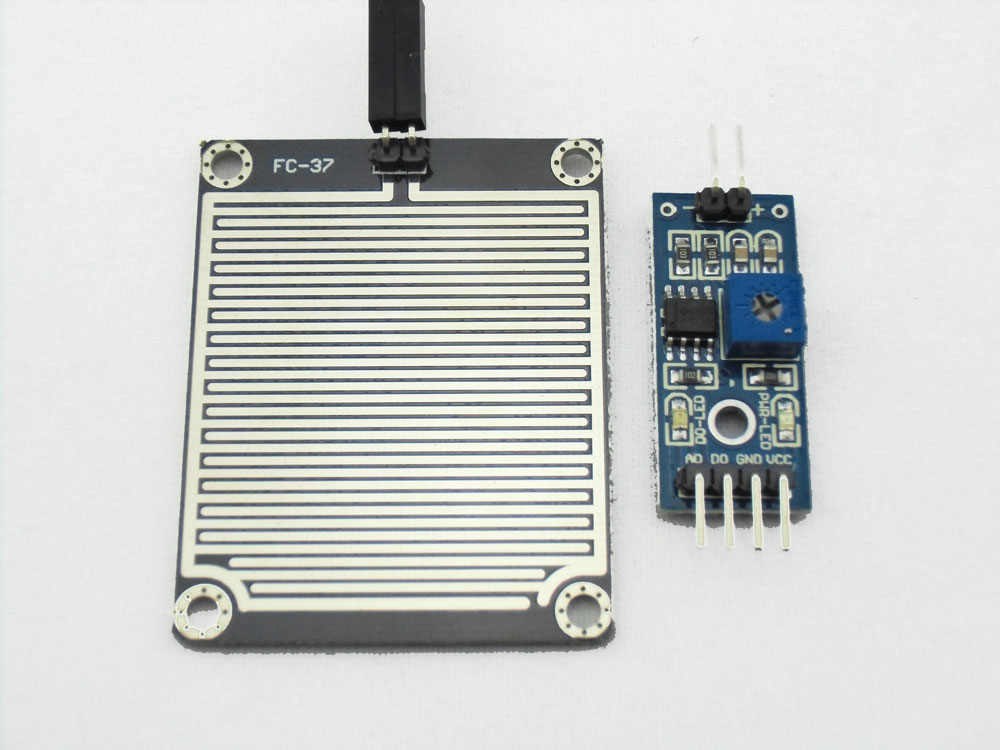

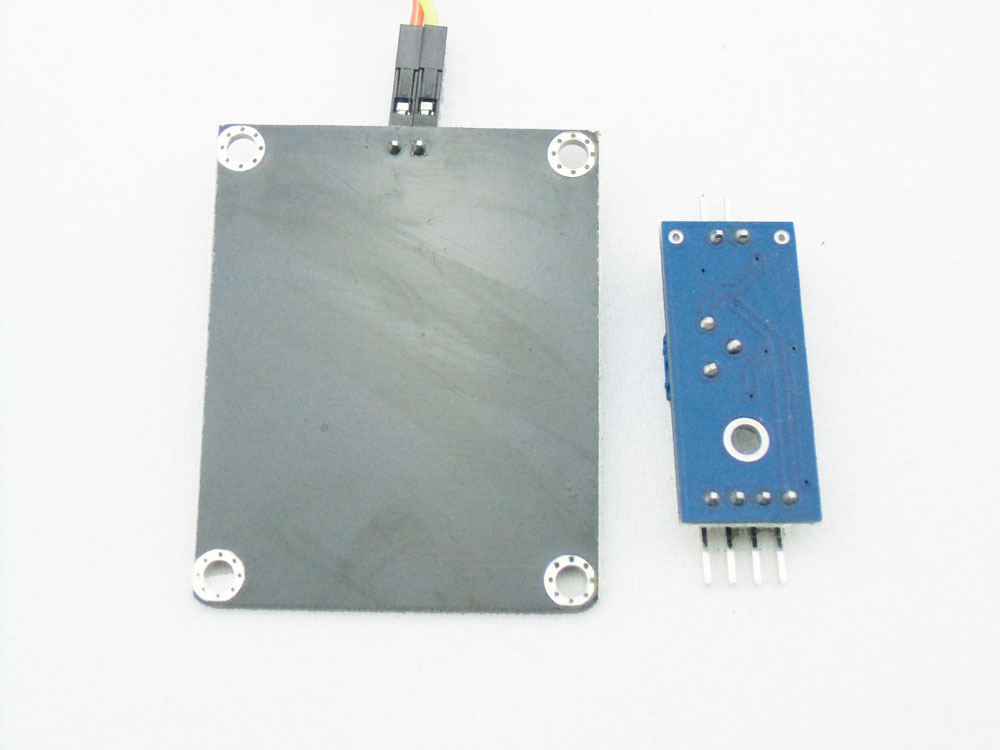

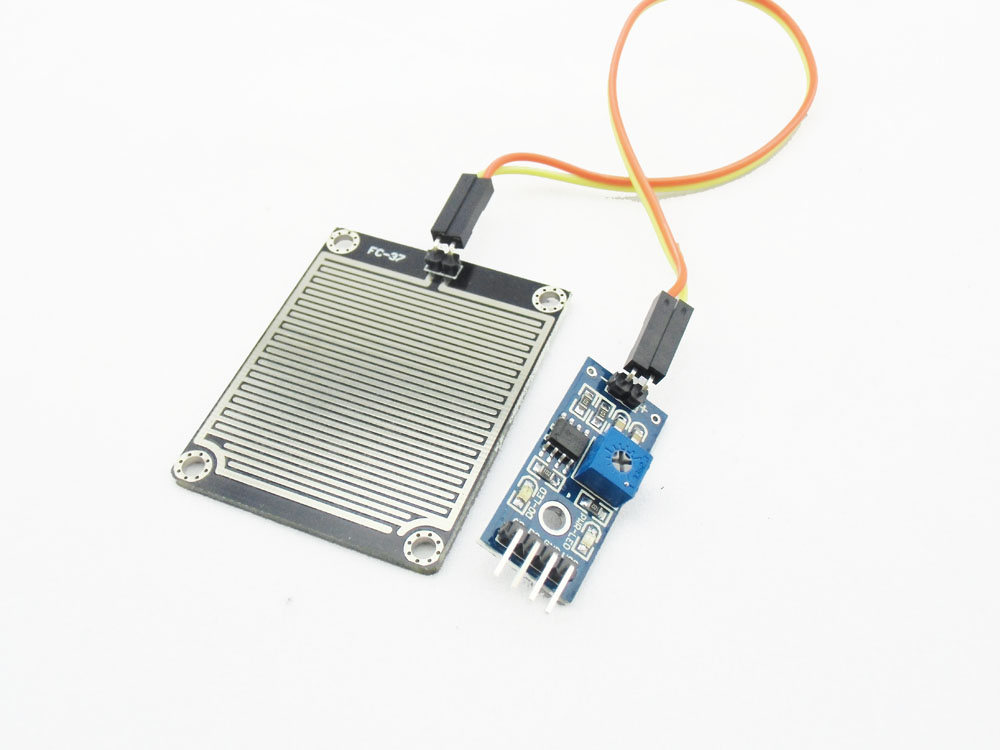

This water sensor works by having a series of exposed traces connected to ground and interlaced between the grounded traces are the sens traces. The sensor board has a dimension of 5.0 x 4.0cm. There is also a on-board potentiometer to adjust the sensitivity, you can get the amount of water induced contact between the grounded and sensor traces. With the comparator LM393, users can get both the analog signal and digital signal.

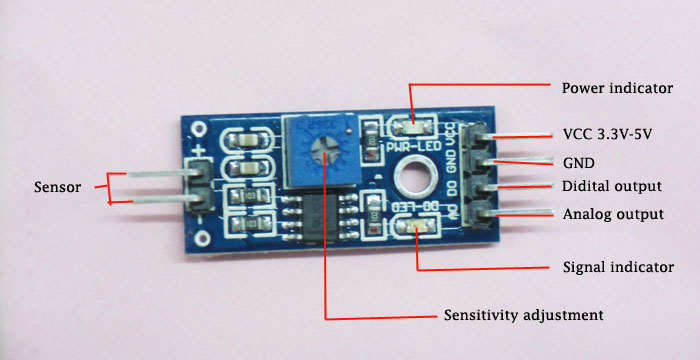

Connect this sensor to 5V power, adjust the sensitive, if there is not water in the sensor, D0 output HGHT(1), and the signal indicator off. if there is water in the sensor, D0 output LOW(0), and the signal indicator on. Aslo can using Arduino to get the analog output by connecting the A0, according to the value to caculate how much of the water.

Application Idea

  • Rainfall detecting
  • Liquid leakage
  • Tank overflow detector

Features

  • Low power consumption
  • Sensitivit adjustable
  • On-board indicator LED to show the results
  • Digital output and Analog output
  • Working voltage: 3.3V-5V
  • Dimension of the board: 3.2cm x 1.4cm

Galería de Imágenes

Archivos

Comentarios

Escribir Comentario

OpenHacks (26/10/2015 - 15:37)

Hola David, podes conectarla al ADC del PIC (siempre que alimentes también al módulo con 5V). Saludos!

David (26/10/2015 - 00:01)

Hola. La señal A0 entiendo que es un valor analógico entre 0 y 5v. Por lo tanto puedo conectar esta salida al ADC de un pic sin problema?

OpenHacks (19/08/2015 - 15:29)

Hola Mariano, nos hemos mudado. Por el momento solo estamos haciendo envíos por cadetería. Saludos!

Mariano Depiante (19/08/2015 - 08:21)

Hola, se mudaron? compré esta placa y quiero pasar a buscarla.
