Super Capacitor - 100F/2.7V

Super Capacitor - 100F/2.7V

Super capacitor de 100 Faradios apto para alimentación ininterrumpida. Dos capacitores en serie pueden mantener un Arduino funcionando durante 4 horas, y recargarse en 30 segundos.

COD: DFFIT0134

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 650.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



Introduction

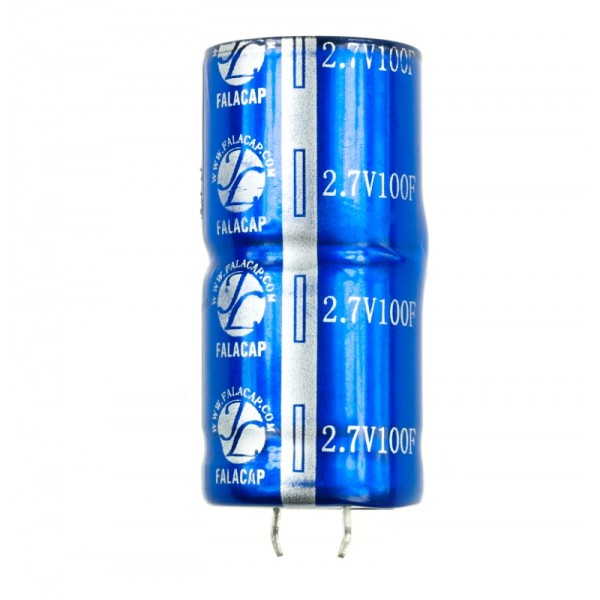

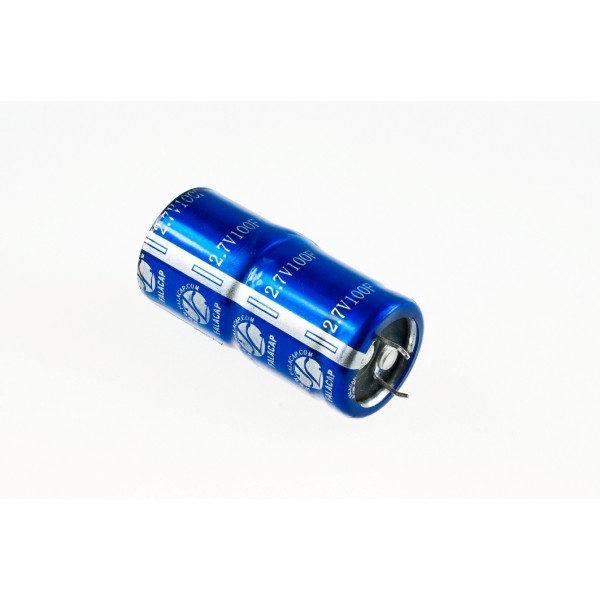

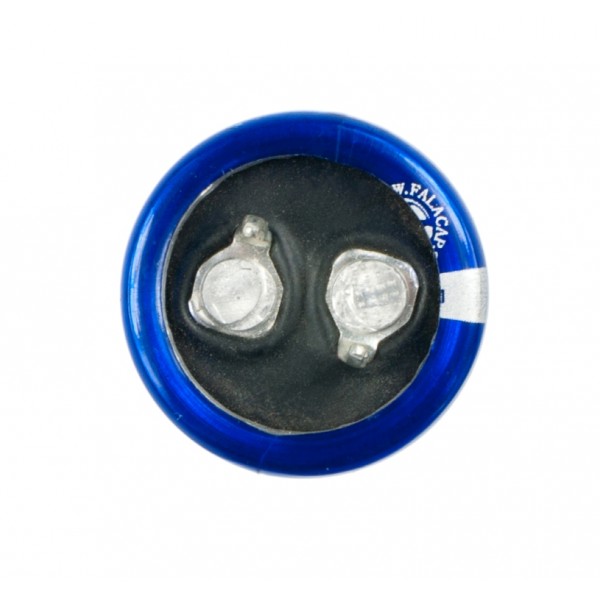

 This is a 100 Farad capacitor. Combine two in series for 50F/5.4V.  Our testing told us that two of these can power Arduino for 4 hours (with one LED). And you can recharge the capacitor just within 30 seconds.

It can be used in Electric toys, wireless modems, motor drivers, portable terminals, duplicators (rapid heating), car audios, remote controllers (self-electric charging), AMR(Automatic Meter Reading), uninterruptible power supply(UPS), electric valves, actuators, wind velocity(pitch control), alarm/security devices

Warning: Do not over voltage or reverse polarize these capacitors.

Specification

  • Rating Voltage:2.7V
  • Capacitance:100 Frad
  • Rating output current: 1A
  • Maximum output current:>60A
  • Leaking current:0.28mA
  • Max. Internal Resistance:10 mOhm
  • Voltage Under 24 hours charging:2.4V
  • 500,000 cycle life (semi-permanent)
  • Size:22x45mm
