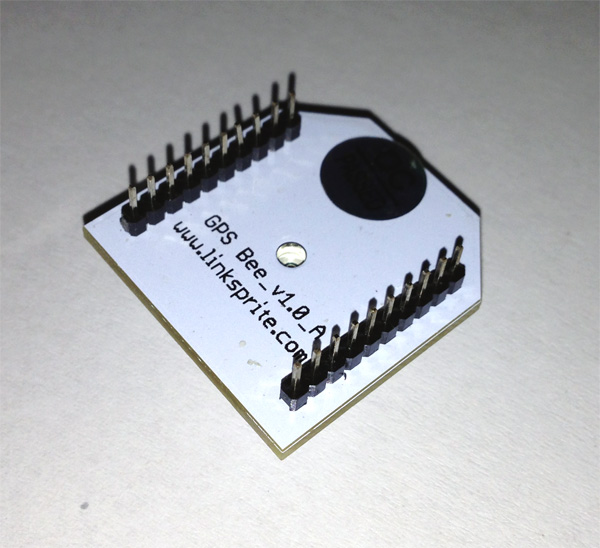

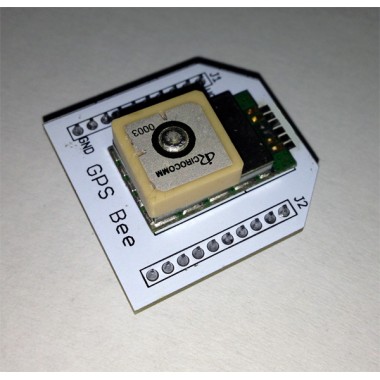

GPS Bee
Módulo GPS integrado con conector en formato "Bee"
COD: LS105201002
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 81829.00
El producto no está disponible para la venta en este momento
Características
SKM58 Description
The SKM58 Series with embedded GPS antenna enables high performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments.
It is based on the high performance features of the MediaTek 3329 single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The 6-pin UART connector design is the easiest and convenient solution to be embedded in a portable device and receiver like PND, GPS mouse, car holder, personal locator, speed camera detector and vehicle locator.
Applications
- LBS (Location Based Service)
- Vehicle navigation system
- PND (Portable Navigation Device)
- GPS mouse and Bluetooth GPS receiver
- Timing application
Features
- Ultra high sensitivity: -165dBm
- 22 tracking/66 acquisition-channel receiver
- WAAS/EGNOS/MSAS/GAGAN support
- AGPS support
- NMEA protocols (default speed: 9600bps)
- One serial port
- Embedded patch antenna 12*12*4 mm
- Operating temperature range: -40 to 85℃
- RoHS compliant (Lead-free)
- Tiny form factor ：20.5mm x12.8mm x 7.8mm
Schematics (15 Kb)
