CubieBoard Kit
Poderosa Board ARM Cortex A10 capaz de correr Linux y Android. Posee Ethernet, salida HDMI y puerto SATA. Nota: los gabinetes pueden variar de color, esta partida incluye gabinetes transparentes.
COD: DFR0227
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 159063.01
El producto no está disponible para la venta en este momento
Características
Introduction

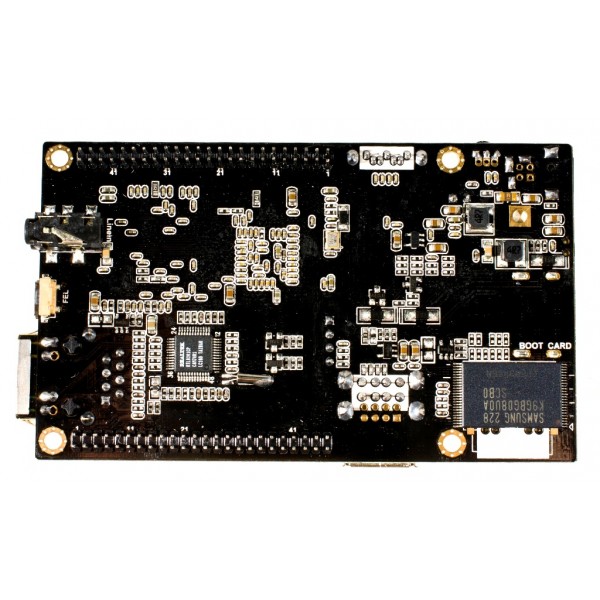

The Cubieboard is a new Allwinner A10 based developer board, with a very wide range of IO options. The board is set apart by offering SATA and an extended pin interface for low level access to the SOC. The new one comes with a case.
Allwinner A10
The Cubieboard is powered by the popular Allwinner A10 SOC combining a low power ARM Cortex A8 CPU and Mali400 GPU.
SATA
The Cubieboard comes with SATA support, making it a great solution for low powered servers
Connectivity
The Cubieboard comes with a range of IO, including USB, HDMI, IR, serial, Ethernet, SATA, and a 96 pin extended interface to the SOC
Specification
- 1G ARM cortex-A8 processor, NEON, VFPv3, 256KB L2 cache
- Mali400, OpenGL ES GPU
- 1GB DDR3 @480MHz
- HDMI 1080p Output
- 10/100M Ethernet
- 4Gb Nand Flash
- 2 USB Host, 1 micro SD slot, 1 SATA, 1 ir
- 96 extend pin including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP..
- Running Android, Ubuntu and other Linux distributions

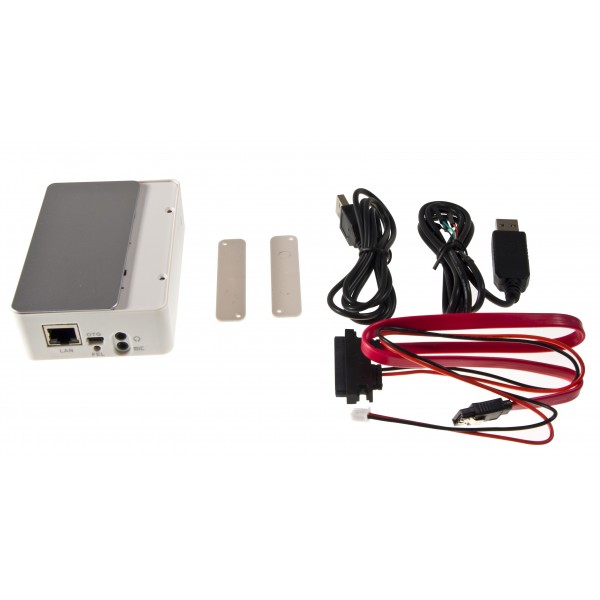

Shipping List
- Cubieboard board x1
- USB power cable x1
- SATA cable x1

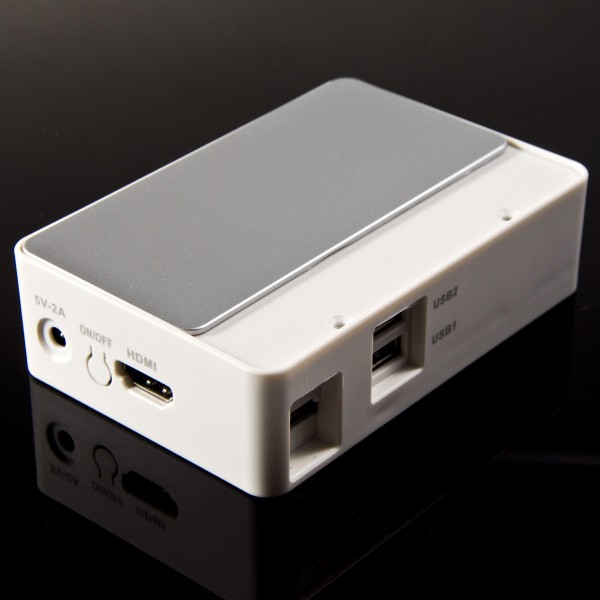

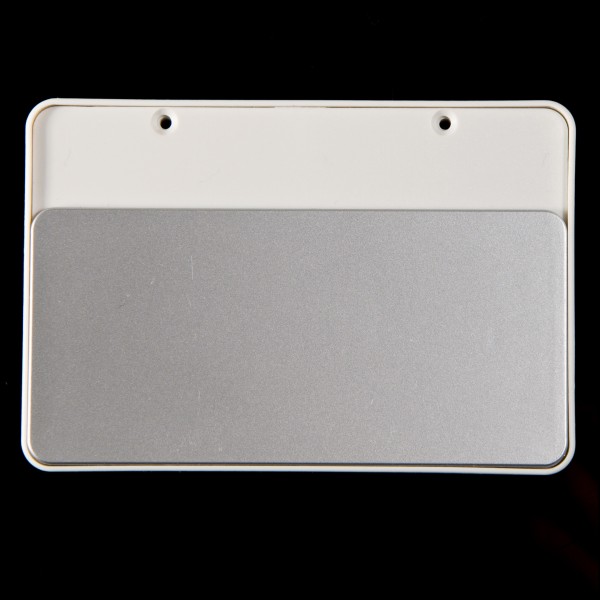

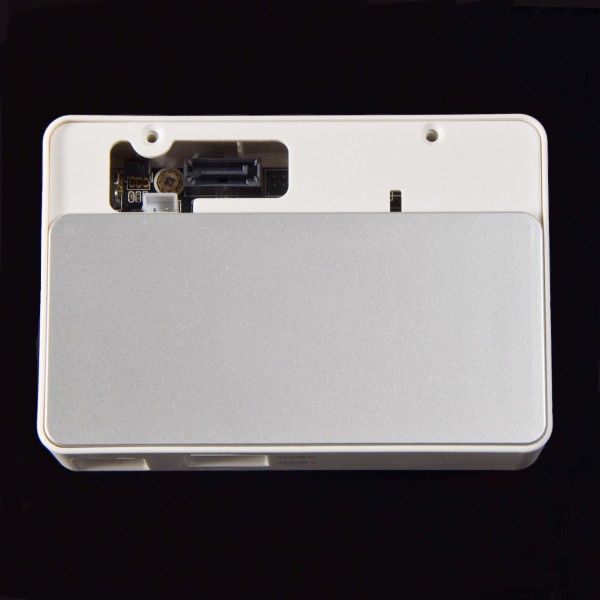

- Cubieboard Case x1
Documents
Galería de Imágenes
Archivos
Cubierboard board dimensions (Autocad DWG format) (283 Kb)
Schematics of the Cubieboard rev. 1.0 2012-08-08 (PDF) (272 Kb)Comentarios
