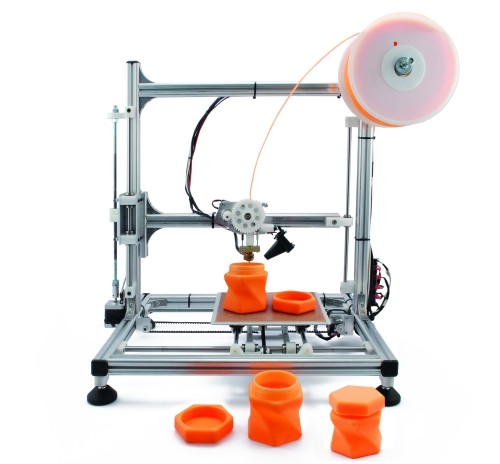

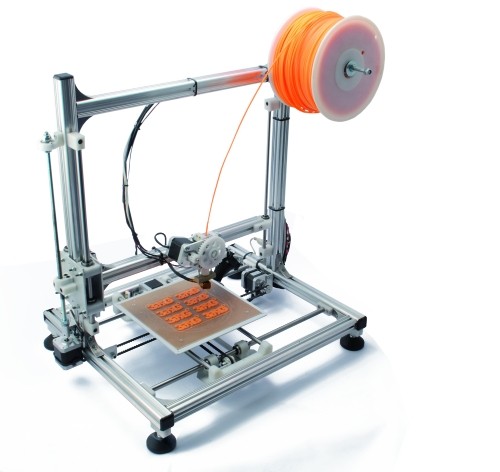

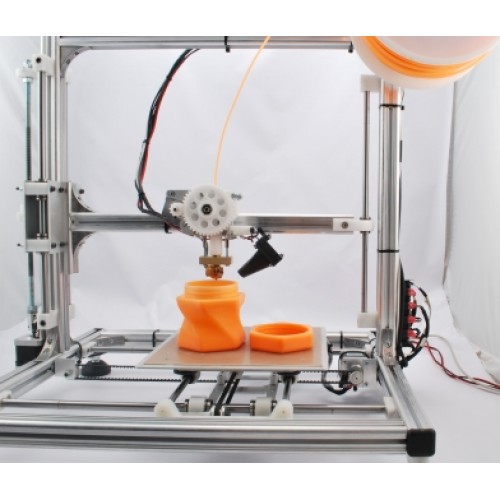

3Drag - 3D printer kit

3Drag - 3D printer – KIT

Kit completo para armar impresora 3D compatible con RepRap. Incluye 1kg de ABS amarillo de 3mm y placa calefactora. Requiere armado.

COD: OE00001

Peso: 8.700 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 2494304.90

Cantidad:

El producto no está disponible para la venta en este momento

Características

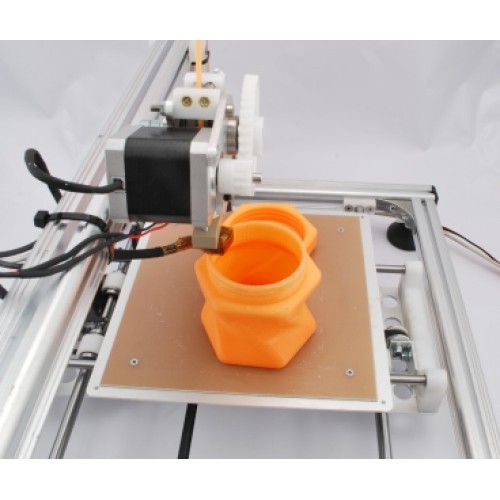

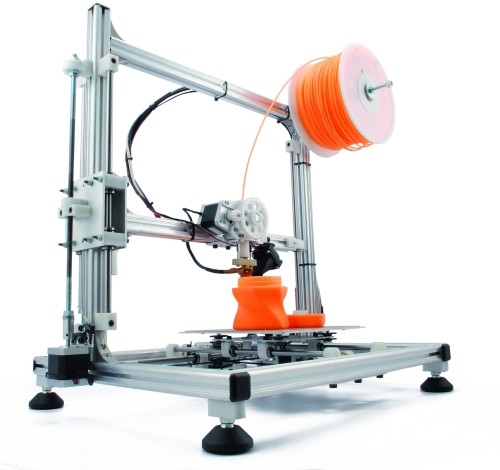

3D printer to print objects of maximum size of 20 x 20 x 20 cm using ABS or PLA 3mm wires. Extremely fast and precise even in prints at higher speeds. Compatible with all free software and firmware RepRap, lets you create items in plastic of any kind. Made of aluminum profiles, easy to mount. Designed and engineered to give lightness and stiffness for the suppression of vibrations and unwanted resonance. The printer uses the X / Y for printing plane and Z for the cart. This particular configuration allows to simplify the extrusion system which no longer have to move on a horizontal axis, is simply fixed to the structure that moves along the Z axis The measurements have been studied to make the printer compact and a low center of gravity, aligned with the two belts. The support for the printing plate is designed to accommodate a "tile" of vetronite which combines a good adhesion with the PLA with considerable dimensional stability.

Structure:

- Extruded aluminum square 27.5 mm wide;
- Linear ball recycling ground bars 8 and 10 mm

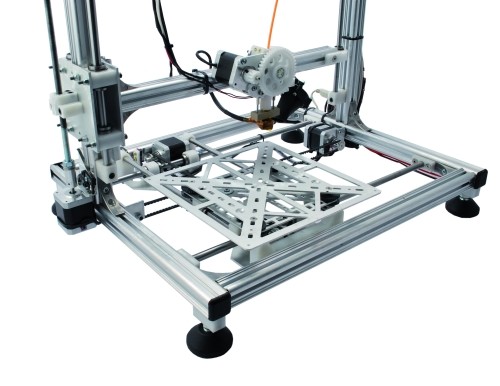

Cart X / Y:

- Basic Plan 3mm perforated aluminum suitable for mass reduction;
- The upper floors in aluminum, from 2 mm suitably perforated to reduce the mass

Support and connection of polyoxymethylene, processed by CNC
Technology: FFF (Fused Filament Fabrication) for PLA and ABS

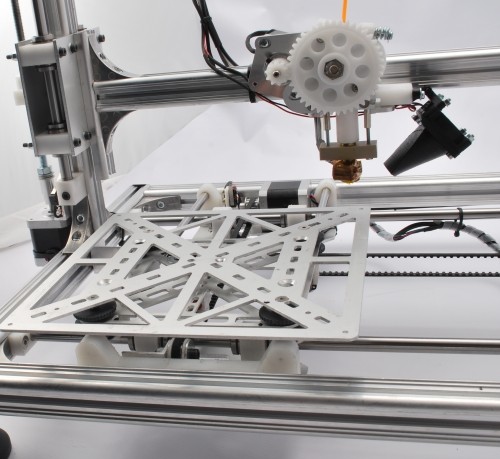

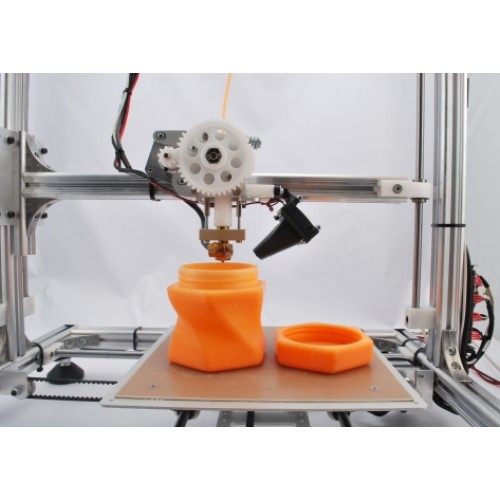

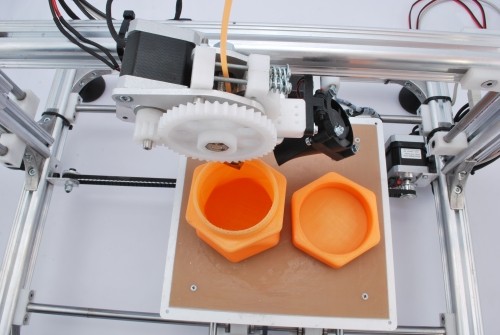

Hot extrusion with nozzle of 0.5 mm, NTC 100K and steppers

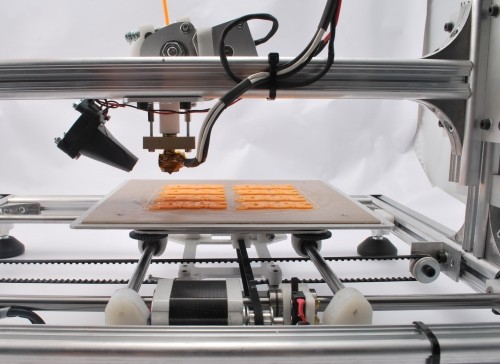

Movement: 3 NEMA 17 stepper motors on the X / Y (printing plate) and Z (arm extruder)

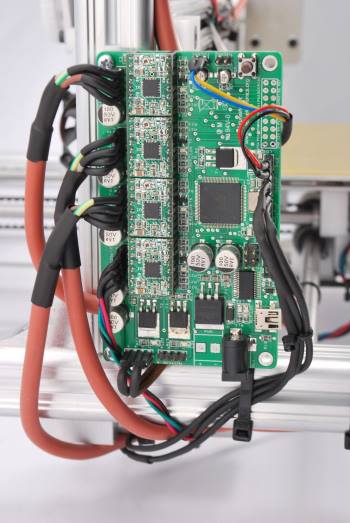

Controller: Sanguinololu 1.3a or compatible
Power supply: 12V 3A max
FTDI USB 2.0 to Serial, Arduino compatible
Dimensions print: 20 x 20 x 20 cm

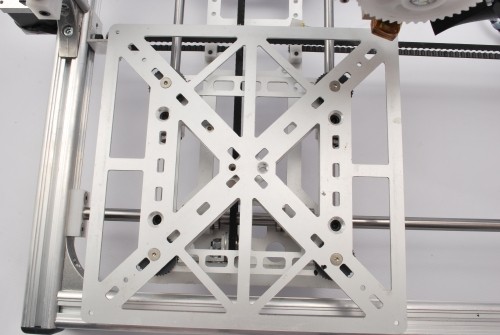

Medium size printing plate: 21.5 x 21.5 cm
Typical printing speed 120 mm / sec
Maximum print speed: 150 to 300 mm / sec
(depending on the object to be printed)
Nominal resolution:
  • X and Y: 0.015 mm
  • Z: 0.781 microns
Dimensions:
  • Width 60 cm
  • Depth: 43 cm
  • Height: 59 cm
  • Weight: 8.7 kg

More information on RepRap WIKI: http://reprap.org/wiki/3drag

Software: Repetier-Host 0.85b
