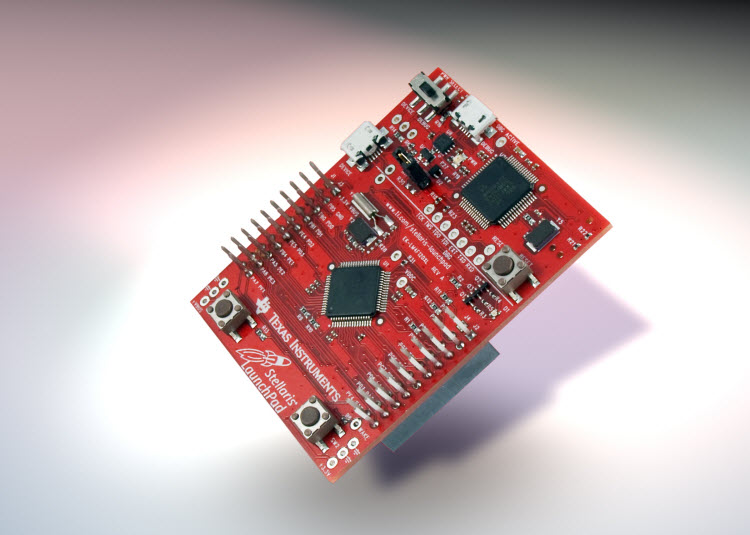

Stellaris® LM4F120 LaunchPad Evaluation Board
Placa de evaluación Stellaris® LM4F120 LaunchPad
COD: N44W8822
Peso: 0.140 Kg
Disponibilidad: Sin Stock
ARS 36004.00
El producto no está disponible para la venta en este momento
Características
Description
The Stellaris® LM4F120 LaunchPad Evaluation Board is a low-cost evaluation platform for ARM® Cortex™-M4F-based microcontrollers from Texas Instruments. The design of the Stellaris LaunchPad highlights the LM4F120H5QR microcontroller with a USB 2.0 device interface and hibernation module.
The EK-LM4F120XL also features programmable user buttons and an RGB LED for custom applications. The stackable headers of the Stellaris LM4F120 LaunchPad BoosterPack XL Interface make it easy and simple to expand the functionality of the Stellaris LaunchPad when interfacing to other peripherals with Stellaris BoosterPacks and MSP430™ BoosterPacks.
Features
The Stellaris LM4F120 LaunchPad Evaluation Kit offers these features:
- A Stellaris LaunchPad Evaluation board (EK-LM4F120XL)
- On-board Stellaris In-Circuit Debug Interface (ICDI)
- USB Micro-B plug to USB-A plug cable
- ReadMe First quick-start guide
More information: http://www.ti.com/tool/EK-LM4F120XL
Stellaris® LM4F120 LaunchPad Evaluation Board - User Manual (528 Kb)
