Proto Kit FRDM-KL25Z

FRDMKL25Z PROTO BUNDLE

Kit de iniciación de plataforma Freedom KL25Z con protoboard y componentes

COD: N46W9881

Peso: 0.160 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 1246.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

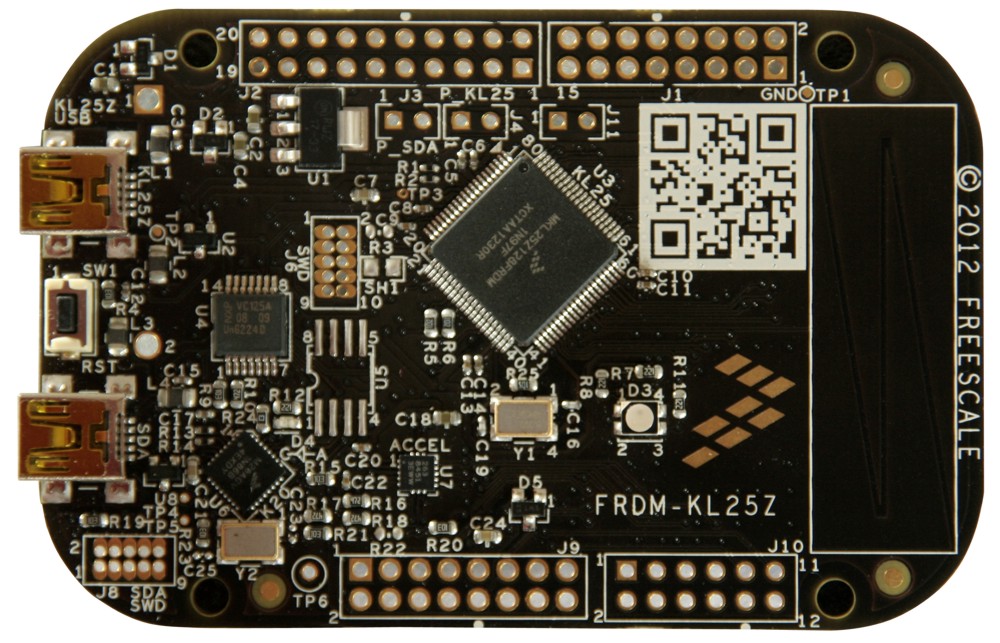

The Freescale Freedom development platform is a low-costevaluation and development platform featuring Freescale'snewest ARM® Cortex™-M0+ based Kinetis KL25Z MCUs

Specifications

  • Silicon Manufacturer : FreescaleCore
  • Architecture : ARMCore
  • Sub-Architecture : Cortex - M0+
  • Silicon Core Number : MKL2
  • Silicon Family Name : Kinetis - KL2

Features:

  • KL25Z128VLK4-Cortex-M0+ MCU with:
    • 128kB flash, 16kB SRAM
    • Up to 48MHz operation
    • USB full-speed controller
  • OpenSDA-sophisticated USB debug interface
  • Tri-color LED
  • Capacitive touch “slider”
  • Freescale MMA8451Q accelerometer
  • Flexible power supply options
    • Power from either on-board USB connector
    • Coin cell battery holder (optional population option)
    • 5V to 9Vvin from optional IO header
    • 5V provided to optional IO header
    • 3.3V to or from optional IO header
  • Reset button
  • Expansion IO form factor accepts peripherals designed for Arduino™-compatible hardware

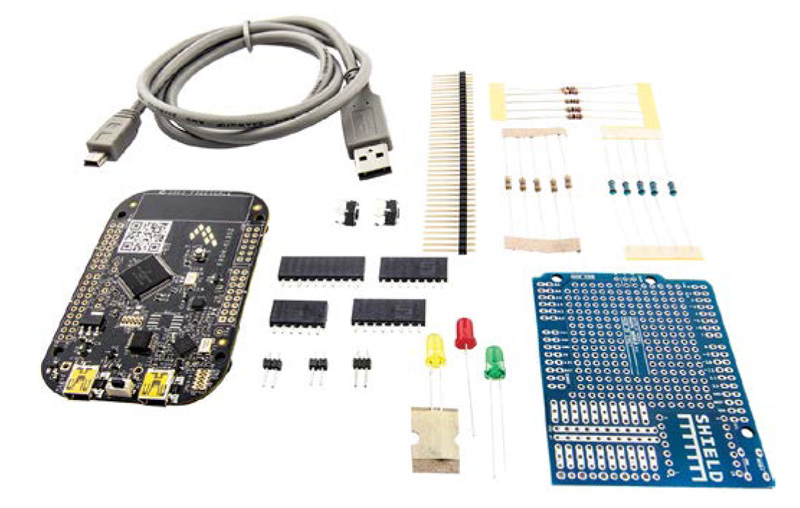

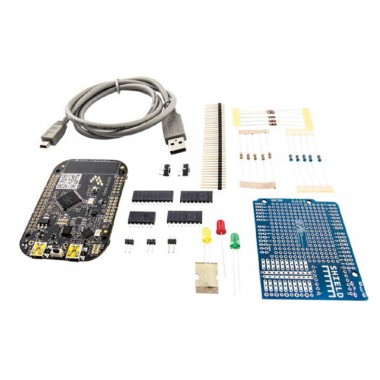

Kit Contents:
  • 1x Samtec Socket, 2.54mm, 1 × 6 Pos
  • 2x Samtec Socket, 2.54mm, 1 × 8 Pos
  • 1x Samtec Socket, 2.54mm, 1 × 10 Pos
  • 3x Samtec Header, 2.54mm, THT VERT, 2 Pos
  • 1x Multicomp Mini USB cable
  • 1x Freescale Freedom Platform
  • 1x Arduino Proto Shield Kit
