RN-52 - Bluetooth Audio Module

RN-52 - Bluetooth Audio Module

Módulo bluetooth de audio estéreo con DSP ideal para sistemas manos libres o control de centro multimedia.


Peso: 0.005 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 52875.00


El producto no está disponible para la venta en este momento

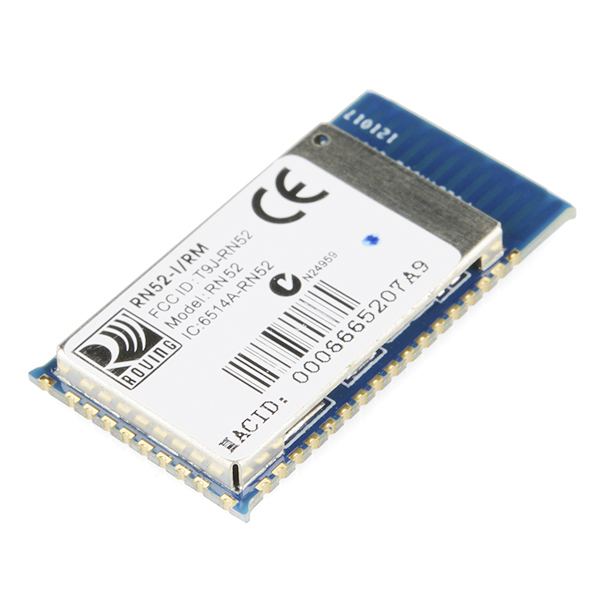

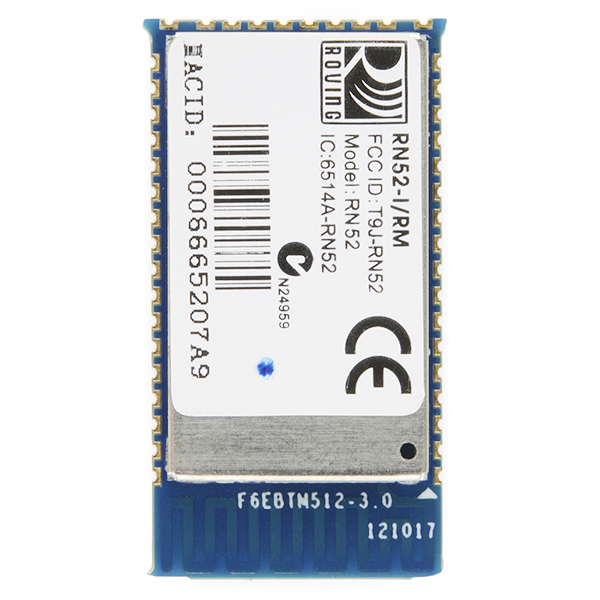

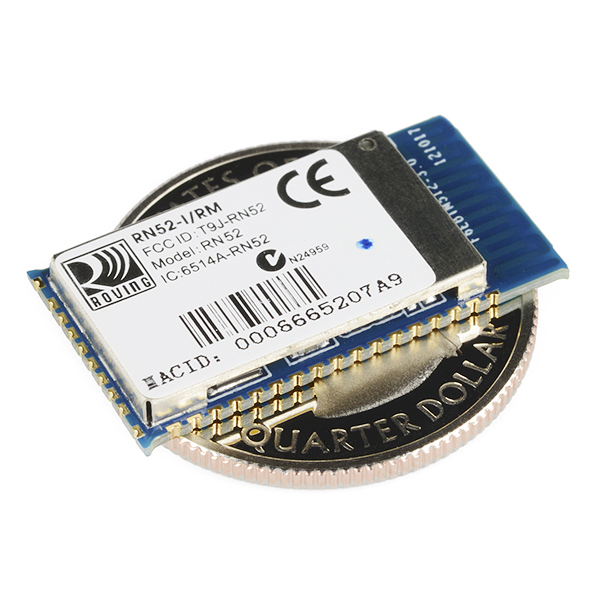

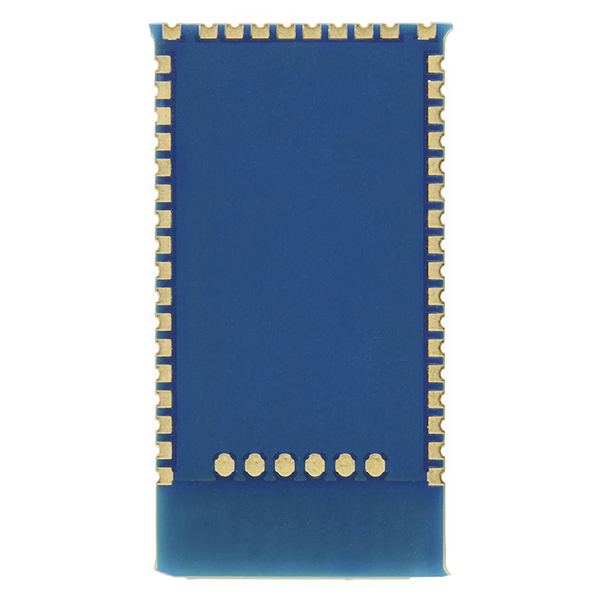

This new RN52 Bluetooth from Roving Network is an audio module that provides a highly integrated solution for delivering high quality stereo audio in a small form factor with little difficulty. This module is perfect for a project involving hands free audio for your car, remote controlling your media center, or streaming 2-channel audio.

The RN52 module combines a class 2 Bluetooth radio with an embedded digital signal processor (DSP). The module is programmed and controlled with a simple ASCII command language. It provides a UART interface, several user programmable I/O pins, stereo speaker outputs, microphone inputs, and a USB port.
  • Fully qualified Bluetooth module
  • FCC Certified
  • Fully configurable UART
  • Dual-channel, differential audio input and output
  • Supports iAP profile
  • Low power sleep mode
  • Maximum over air data rate of 3.0Mbps
  • Compatible with all Bluetooth products that support SPP (almost all do)
  • Embedded Bluetooth stack profiles: A2DP, AVRCP, HFP/HSP, and SPP
  • 3.0 ~ 3.6V operation
  • Bluetooth Technology v3.0 compatible
  • Class 2 power output
