Steam Sensor

Steam Sensor

Sensor de vapor con salida analógica

COD: DFSEN0121

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 91.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



Introduction

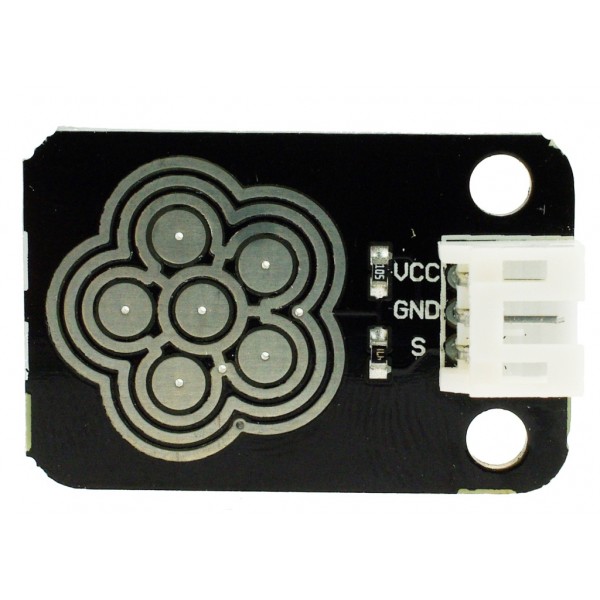

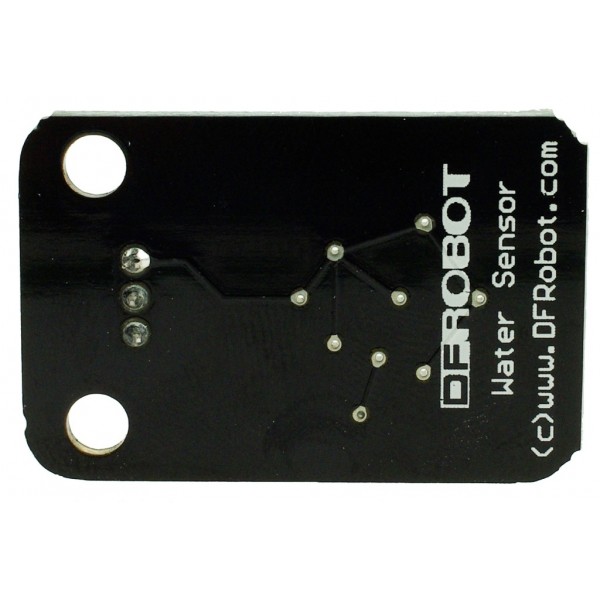

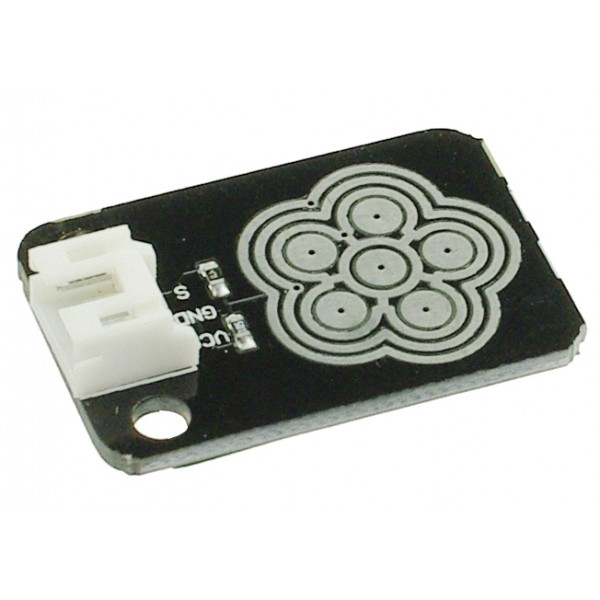

This is a steam sensor from DFRobot.  This steam sensor can be connected to the Arduino IO Expansion shield directly. The output voltage will increase when the humidity of the sensor surface goes up.

Warning: The connector is not waterproof, please be careful not to put the connector directly in water.



Applications

  • Simple rain detector
  • Cheap steam level switch
  • Touch sensor based on humidity


Specification

  • Power supply: 3.3v or 5v
  • Output voltage signal: 0~4.5v(@5v) or 0~3.0v(@3.3v)
  • Pin definition:
  • Analog output(Blue wire)
  • GND(Black wire)
  • Power(Red wire)
  • Size: 30x20x6mm

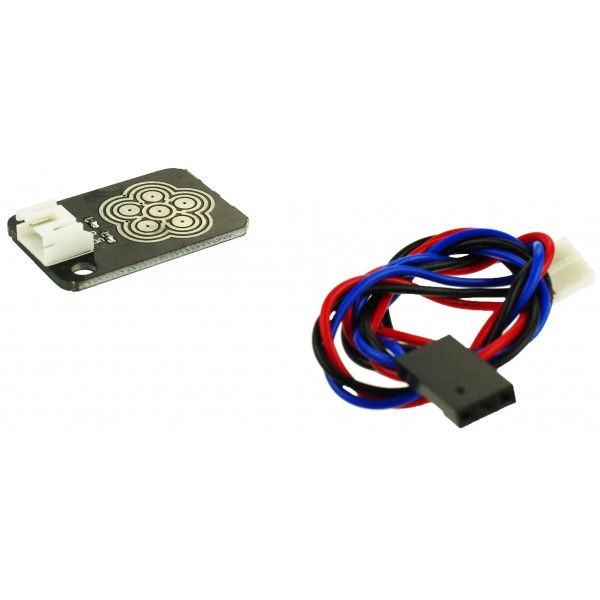

Shipping List

  • Steam sensor (1 unit)
  • Analog Sensor Cable (1 unit)


Documents
