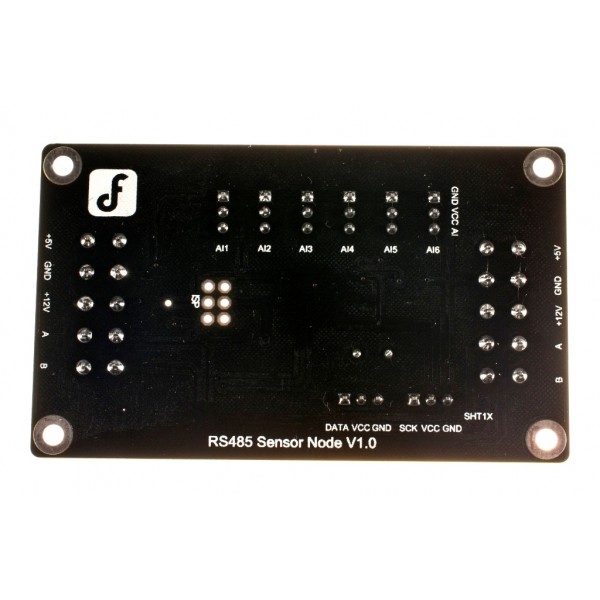

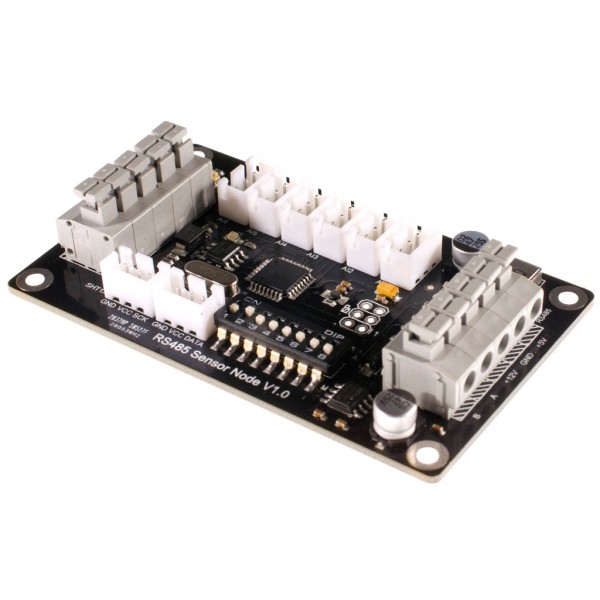

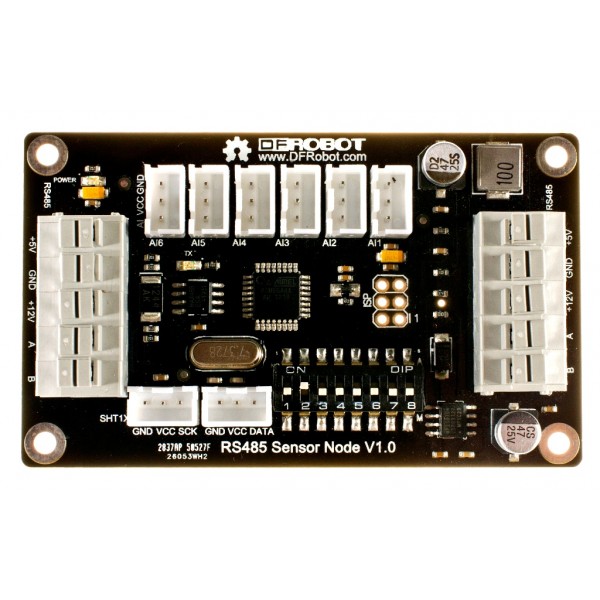

RS485 Sensor Node V1.0

RS485 Sensor Node V1.0

Nodo de entradas analógicas con comunicación RS485

COD: DFR0233

Peso: 0.030 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 74750.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



Introduction

This RS-485 Sensor Node module can be used in various applications such as intelligent agriculture, environment monitoring,home automation...etc. It is a Internet of things device. This RS-485 Sensor node provides 6 channel analog input and 1 SHT1x Humidity & Temperature digital input. The RS485 protocol supports up to 254 nodes at 1200m distance between each node. This allows a wide range cover for monitoring the environment.  A screw free design allows easy connection of cables without scarfice reliable & stable.

RS-485 standard is used effectively over long distances and in electrically noisy environments. Multiple receivers may be connected to such a network in a linear, multi-drop configuration. These characteristics make such networks useful in industrial environments and similar applications.RS-485 enables the configuration of inexpensive local networks and multidrop communications links. It offers data transmission speeds of 35 Mbit/s up to 10 m and 100 kbit/s at 1200 m.

RS-485 bus is the most popular communication method in industry. Compared with RS-232 bus, it is able to transfer information in further distance with lower cost. Establishing an “Internet of Things” by integrating RS-485 with Ethernet, which is the widely available in the world, in the hope that this method will coordinate all devices with low cost and high efficiency.


Applications

  • Intelligent agriculture
  • Public safety
  • Environment monitoring
  • Individual health
  • Home automation


Specification

  • MCU:Atmega8
  • Input Voltage:12V
  • Baud rate:9600
  • Available Slave address: 0x01 - 0x7F
  • RS-485 long distance,reliable & stable conmunication
  • Multiple connection(up to 127 modules)
  • Press to connect cables, quick and easy
  • 1 SHT1x Humidity and Temperature Sensor interface
  • 6 channel analog sensor interface
  • 8 small switches for setting slave address directly
  • Humidity:0-100%RH(±4.5%RH)
  • Temperature:-40-128.8℃(±0.5℃)
  • Size:82x50mm


Shipping List

  • RS485 Sensor Node V1.0                  (1 unit)
