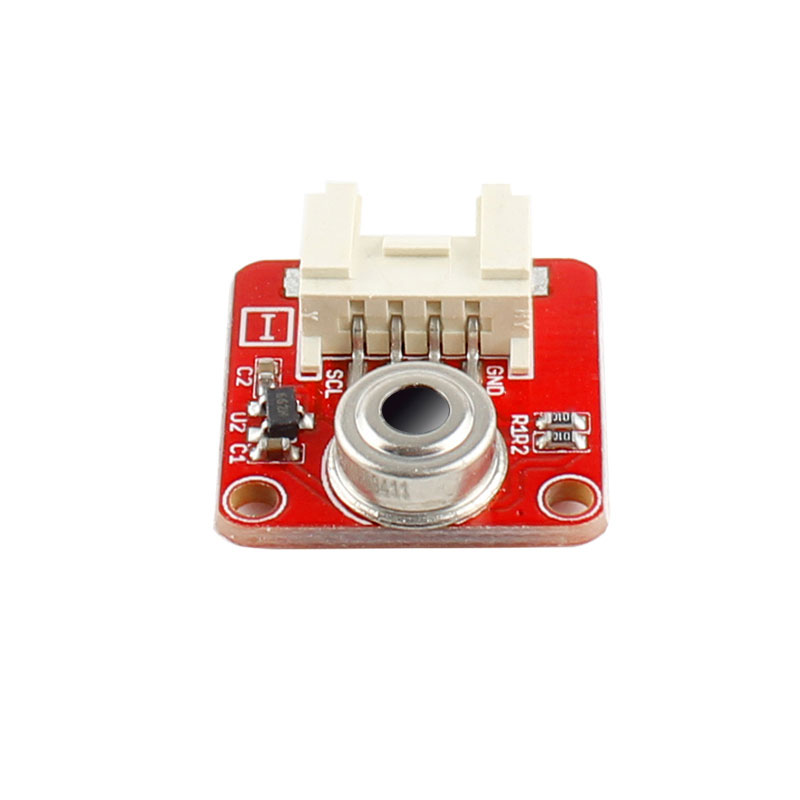

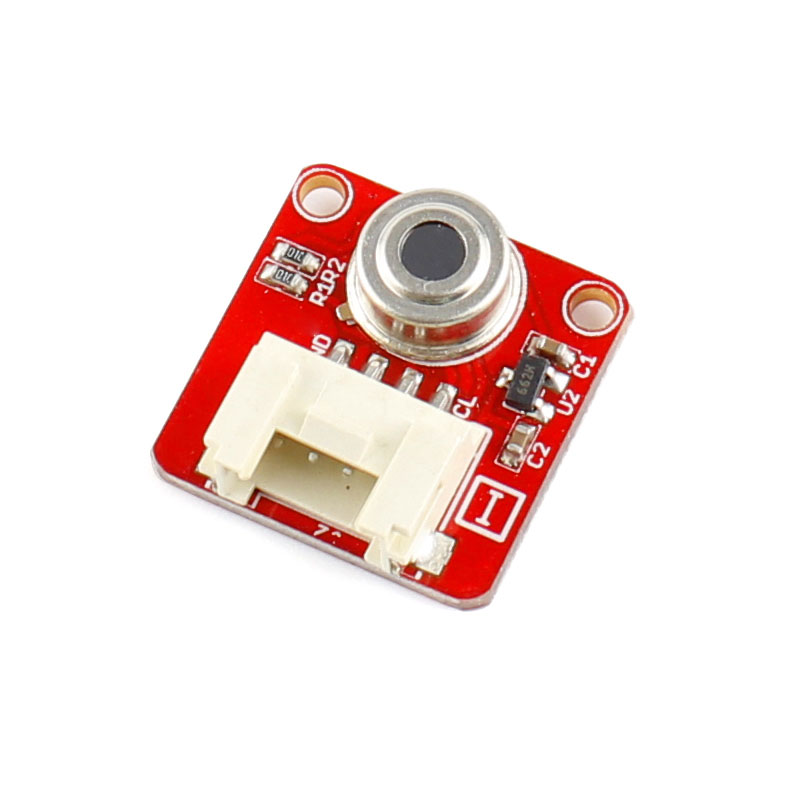

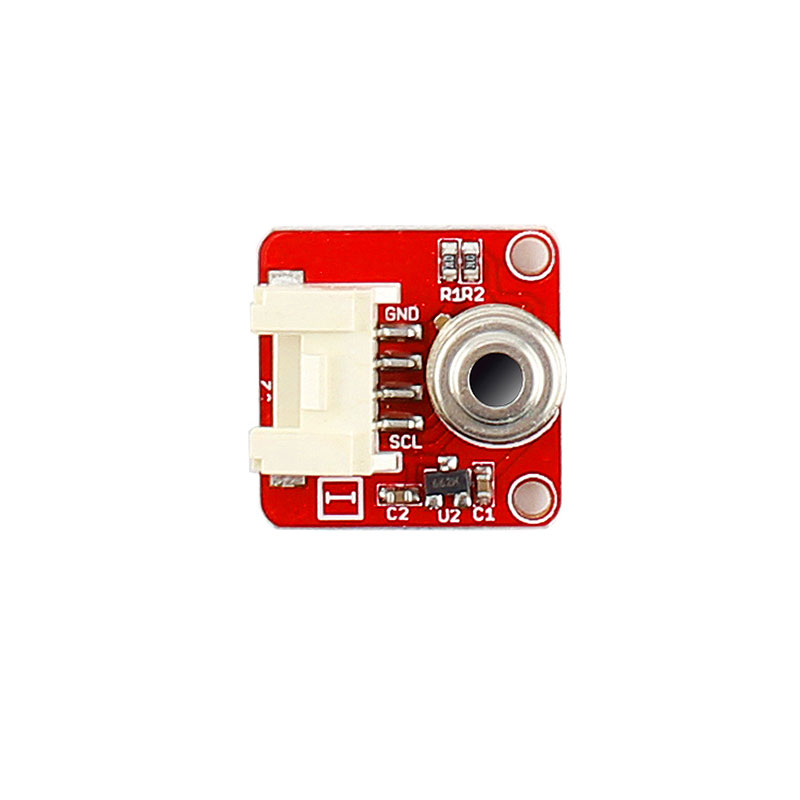

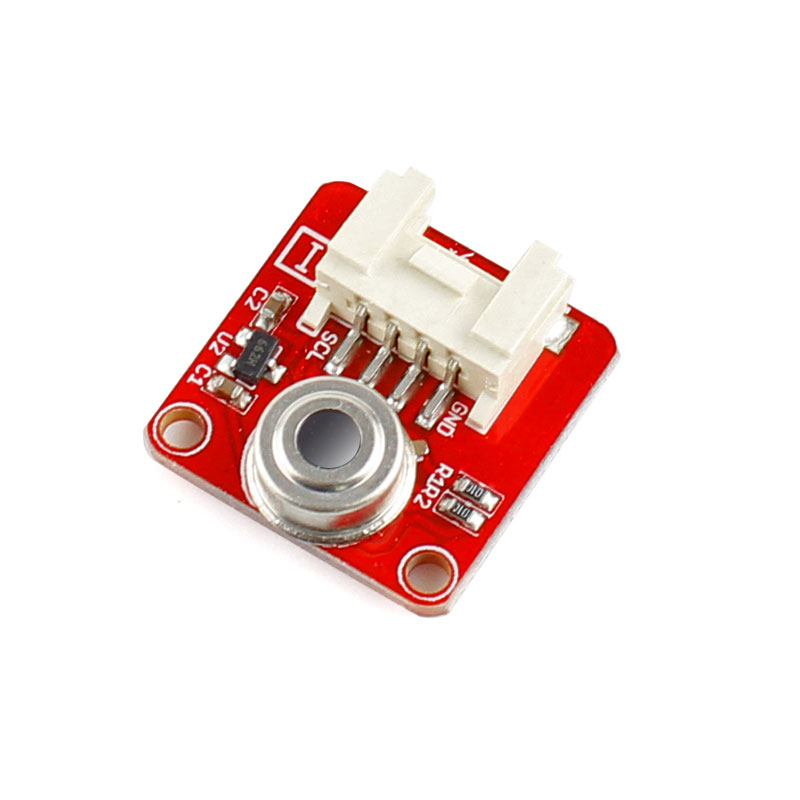

MLX90614 BAA Infrared Temperature Sensor
Termómetro infrarrojo basado en el sensor MLX90614 BAA. Incluye cable para conexión y regulador de tensión para poder alimentarlo con 5V. ATENCION: No apuntarlo al sol, ya que de hacerlo el sensor se estropeará!
COD: ECT0050ITS
Peso: 0.005 Kg
Disponibilidad: En Stock
ARS 29848.00
El producto no está disponible para la venta en este momento
Características
This Infrared temperature sensor is a non-contact temperature measure model by using the MLX90614, which one is in small size and low cost with measurement resolution of 0.02 ºC. Thanks to its low noise amplifier, 17-bit ADC and powerful DSP unit, a high accuracy and resolution of the thermometer is achieved. We also redesign the interface of it so that can work with our Crowtail base board.
Specifications
- Work Voltage: 3.3V ~ 5V
- Temperature measure range: -40~125 ºC
- Measure accuracy: ±0.5 ºC
- Compatible digital interface
- Dimensions(mm):20.0(L)x20.0(W)x6.8(H)
Application ideas
- Motion sensor
- Thief-guarding System
- Switch
- Body distance check
- Industrial automation
- Movement detection
Package list
- Infrared temperature sensor x 1
- Crowtail Cable x 1
mlx90614-datasheet-melexis.pdf (2797 Kb)
