NB-IoT Bee 95G
Módulo NB-IOT de muy bajo consumo y ultra compacto basado en el chip Quectel BC95-G. Soporta múltiples frecuencias (B1/B3/B8/B5/B20/B28). Integra un slot micro SIM. Provee una plataforma flexible y escalable para migrar de GSM/GPRS a redes NB-IoT. Compatible con Arduino.
COD: DRANB95G
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 59537.00
El producto no está disponible para la venta en este momento
Características
NarrowBand-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage. Battery life of more than 10 years can be supported for a wide range of use cases.
New physical layer signals and channels are designed to meet the demanding requirement of extended coverage – rural and deep indoors – and ultra-low device complexity. Initial cost of the NB-IoT modules is expected to be comparable to GSM/GPRS. The underlying technology is however much simpler than today’s GSM/GPRS and its cost is expected to decrease rapidly as demand increases.
Arduino is an open-source electronics platform based on easy-to-use hardware and software, it is an easy tool for fast prototyping, aimed at students without a background in electronics and programming. As soon as it reached a wider community, the Arduino board started changing to adapt to new needs and challenges, differentiating its offer from simple 8-bit boards to products for IoT applications, wearable, 3D printing, and embedded environments. All Arduino boards are completely open-source, empowering users to build them independently and eventually adapt them to their particular needs. The software, too, is open-source, and it is growing through the contributions of users worldwide.

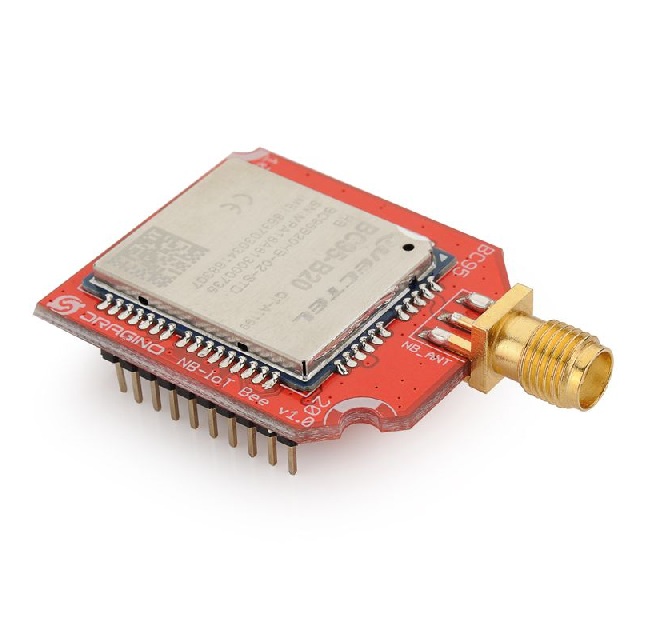

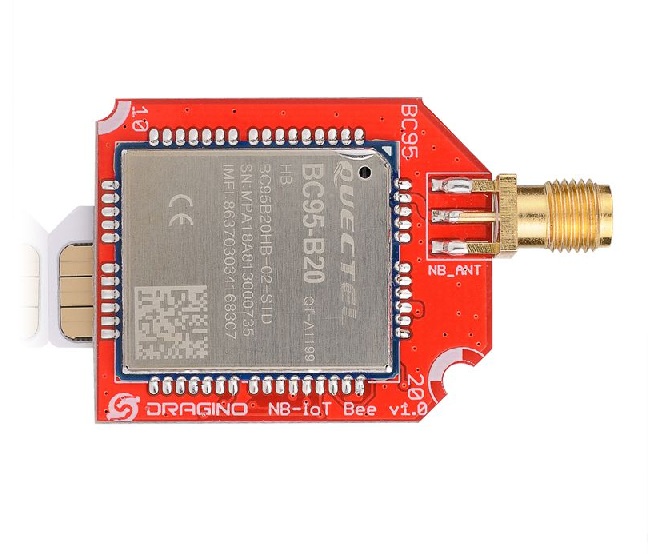

NB-IoT Bee is the core module for NB-IoT Shield, With NB-IoT Shield and Arduino, user can study/evaluate and do POC for NB-IoT solution rapidly. The NB-IoT Bee is in a small form factor. it can be used to build final product directly as well.
The NB-IoT Bee is loaded with offshore NB-IoT module. include:
- Nb-IoT Bee QB05, QB08, QB20, they use Quectel BC95-B5 /B8 and B20 module. The module is designed for only use in NB-IoT network. and difference suffix reference to different NB-IoT Band. (These modules are discontinue. recommend to use NB-IoT Bee 95G as replacement)
- Nb-IoT Bee 95G, it uses Quectel BC95-G module. This module is a global regions module can work on different operators.
- Nb-IoT Bee QG96, it uses Quectel BG96 module. This module supports mutli-bands. Except NB-IoT, It also support LTE Cat M1 & EGPRS.
Features:
- Support global NB-IoT Bands, can use world widely
- Low power consumption
- Wide area coverage
- AT command to control

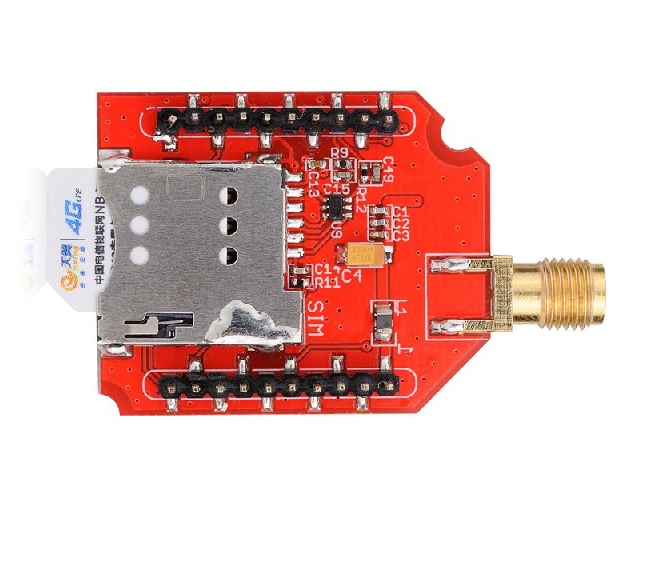

- Built-in micro SIM slot
Applications:
- Smart metering (electricity, gas and water)
- Wireless Alarm and Security Systems
- Home and Building Automation
- Industrial Monitoring and Control
- Long range Irrigation Systems,etc.
Specifications for NB-IoT Bee 95G
Frequency Bands:
- B1 @H-FDD: 2100MHz
- B3 @H-FDD: 1800MHz
- B8 @H-FDD: 900MHz
- B5 @H-FDD: 850MHz
- B20 @H-FDD: 800MHz
- B28 @H-FDD: 700MHz
LTE CatNB1 Connectivity:
- 250mA @Radio Transmission, 23dBm (B1/B28)
- 230mA @Radio Transmission, 23dBm (B3/B8/B5/B20)
- 80mA @Radio Transmission, 12dBm (B1/B3/B8/B5/B20/B28)
- 65mA @Radio Transmission, 0dBm (B1/B3/B8/B5/B20/B28)
- 50mA @Radio Reception
Data Transmission:
- Single Tone: DL:25.2kbps UL:15.625kbps
- Multi Tone:DL: 25.2kbps UL:54kbps
- Extended TBS/2 HARQ: DL: 125kbps UL: 150kbps
Protocol Stacks:
- IPv4
- IPv6
- UDP
- CoAP
- LwM2M
- Non-IP
- DTLS
- TCP
- MQTT
Download Method:
- UART
- DFOTA
Enhanced Features:
- DFOTA: Delta Firmware Upgrade Over-The-Air
- RAI: Release Assistance Indication
- ECID: Enhanced Cell ID
- OTDOA: Observed Time Difference of Arrival
Documents:
- Datasheet for NB-IoT Bee 95G
- User Manual and Case Study (For BC95-B5/B8/B20. BG96)
- User Manual for NB-IoT Bee 95G
- Documents for BC95-G
Package Includes:
- 1 x NB-IoT Bee
- 1 x NB-IoT Antenna
