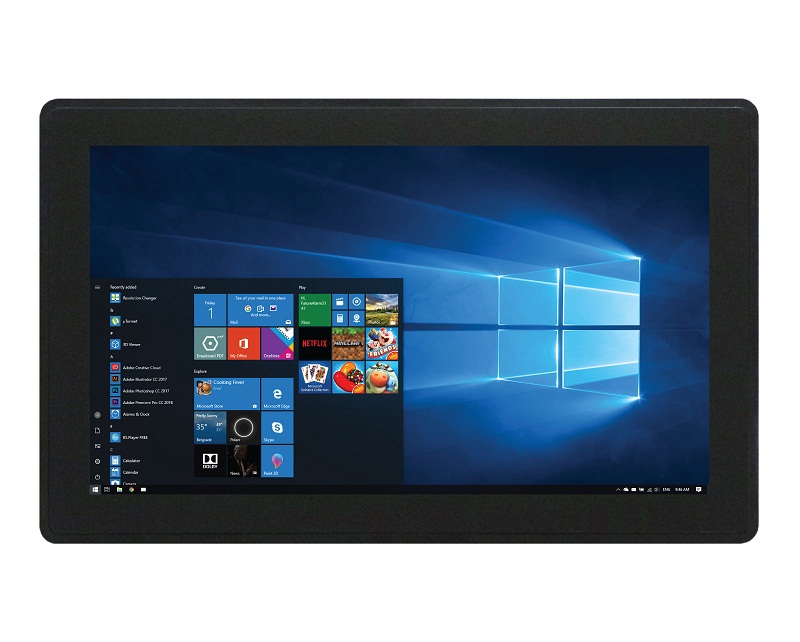

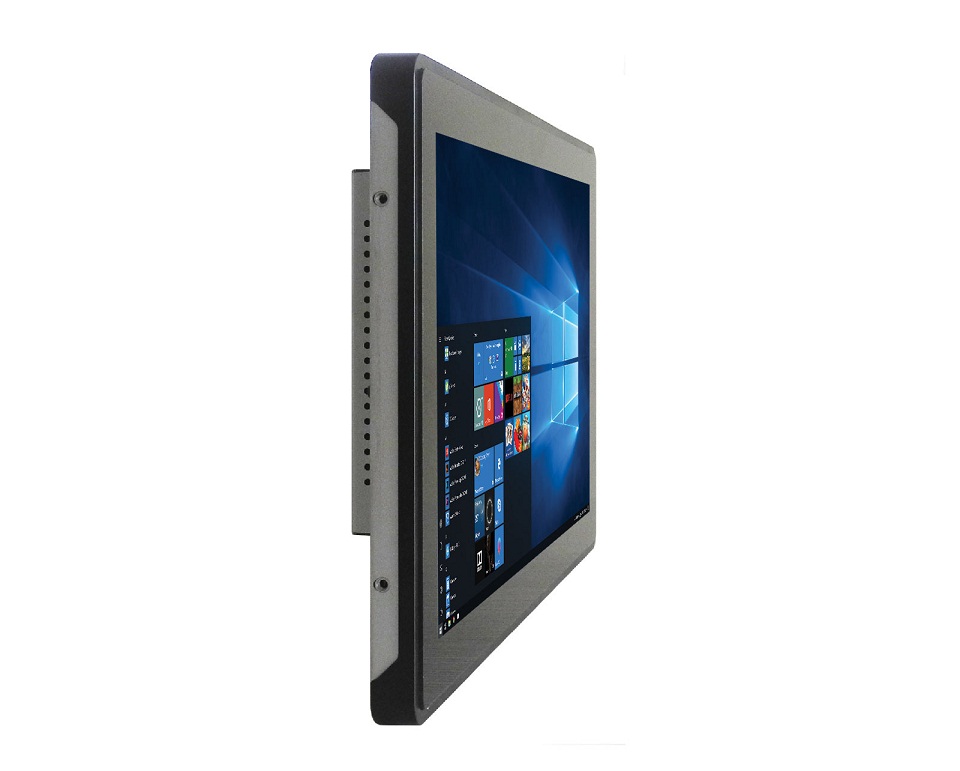

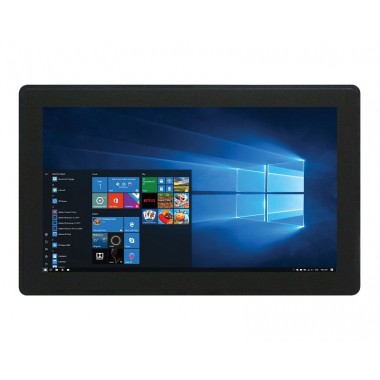

15.6” Industrial display 10-point capacitive touchscreen
Display de tipo industrial con pantalla multitáctil de 15.6 pulgadas y 10 puntos de control. Posee puertos 1x DVI, 1x HDMI, 1x VGA y resolución de 1024*768.
COD: CS-PIM-156-C
Peso: 0.500 Kg
Disponibilidad: Sin Stock
ARS 826540.00
El producto no está disponible para la venta en este momento
Características
PIM-156-C (PN CS-D156) is a 15.6” industrial display that features a 10-point capacitive touchscreen. The 3mm tempered glass cover with black silk-screen ensures that the screen is water and steam resistant.
The typical power consumption is 14W, while in standby mode CS-D156 uses around 2W, making it ideal for all kinds of applications.
This 15.6’’ industrial display features a 10-point capacitive touchscreen. The 1024*768 resolution provides excellent image quality.

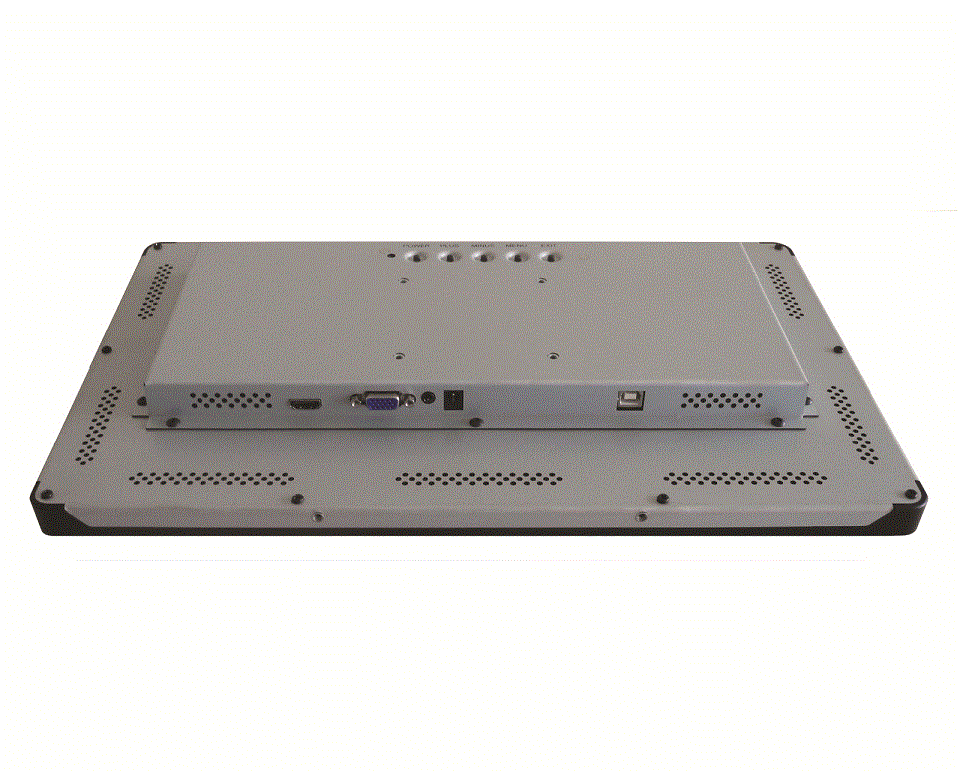

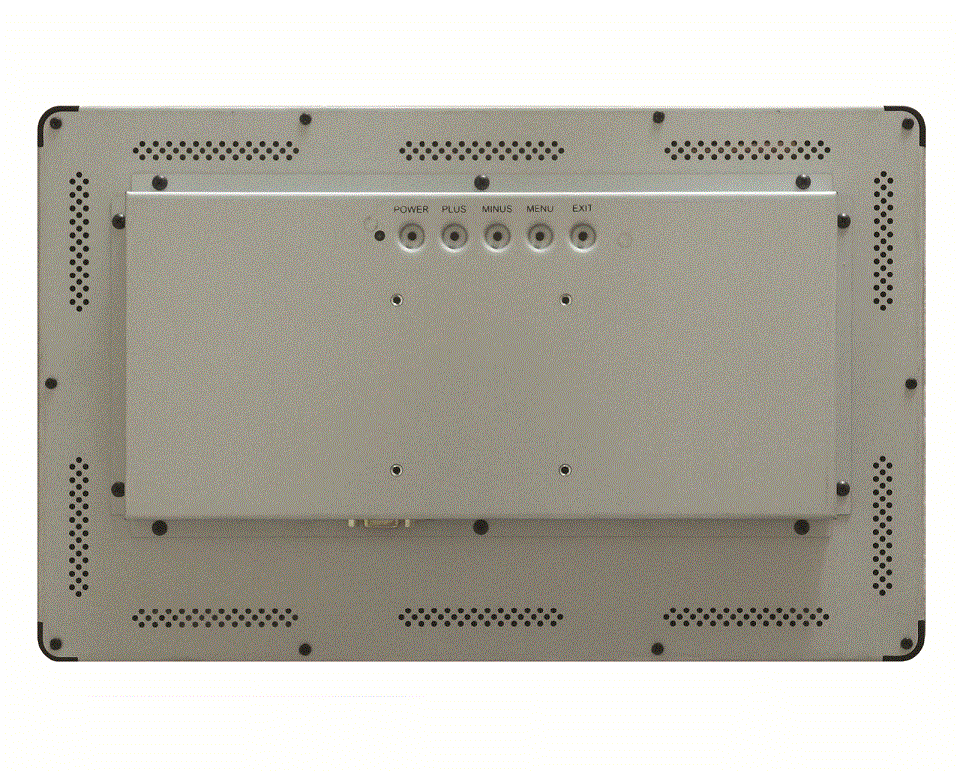

The PIM-156-C features multiple video inputs on the back side – one DVI connector, one HDMI connector, and VGA connector. It also features one USB 2.0 (type B) connector used for handling the touch screen.
Hardware features:
| Weight | 5000 g |
|---|---|
| Display Size (inch.) |
15.6" |
| LCD Backlight |
LED |
| Brightness (cd/m²) |
220 |
| Contrast Ratio |
800:1 |
| Viewing Angle |
Horizontal:170°/ Vertical: 170° |
| Response Time |
35ms(GTG) |
| Color Depth |
16.2M |
| Resolution |
1024*768 |
| Refresh Frequency |
60Hz |
| Wired connectivity |
1x DVI, 1x HDMI, 1x VGA |
| OSD Control |
Button |
| OSD Language |
Chinese, English |
| Glass |
3mm Tempered Glass with Black Silk-screen |
| Touch Screen |
10-Point Capacitive |
| Touch Technology |
Projecting Capacitance (G+G) |
| Type of Pen |
Fingers, Hands with Gloves, Conductive Stylus |
| Waterproof |
Touch surfaces will not be affected by water droplets or steam |
| Calibration |
No Calibration Tool |
| Touch Screen connection |
USB2.0(Type-B) |
| Multi Touch Protocol Support |
Windows |
| Hanging Method |
VESA,MIS-D,100,C |
| Power Input |
DC 12V3A (50/60 Hz) |
| Power Supply |
≤ 14W (typ.) |
| Standby Power |
≤ 2W (typ.) |
| Work Environment |
0℃~ 40℃,90% RH |
| Storage Environment |
-20℃~60℃,90% RH |
| Accessories |
Bracket /Power Line /VGA Line/USB Line/Power Adapter |
