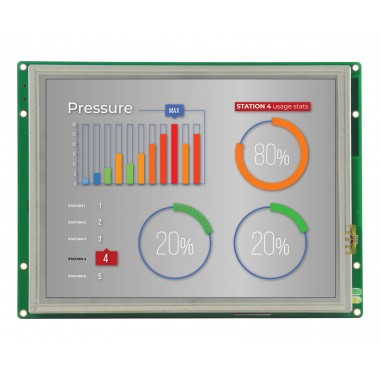

EPC-A8-80-R high-quality industrial embedded computer 8-inch LCD
Computadora de tipo industrial con pantalla táctil resistiva de 8 pulgadas. Cuenta con un procesador ARM Cortex-A8 de alto rendimiento y aceleradora gráfica PowerVR SGX. Corre Linux y Android.
Peso: 0.500 Kg
Disponibilidad: Sin Stock
El producto no está disponible para la venta en este momento
The EPC-A8-80-R (PN CS80600T080E) is a high-quality industrial embedded computer, that features an 8-inch LCD with resistive touchscreen, an ARM Cortex-A8 processor with 512MB DDR3 RAM and 4GB eMMC Flash, 100Mb Ethernet, 4 USB 2.0 ports, 1 CAN port, 2 RS232, 2 RS485 ports, as well as a 3.5mm audio connector.

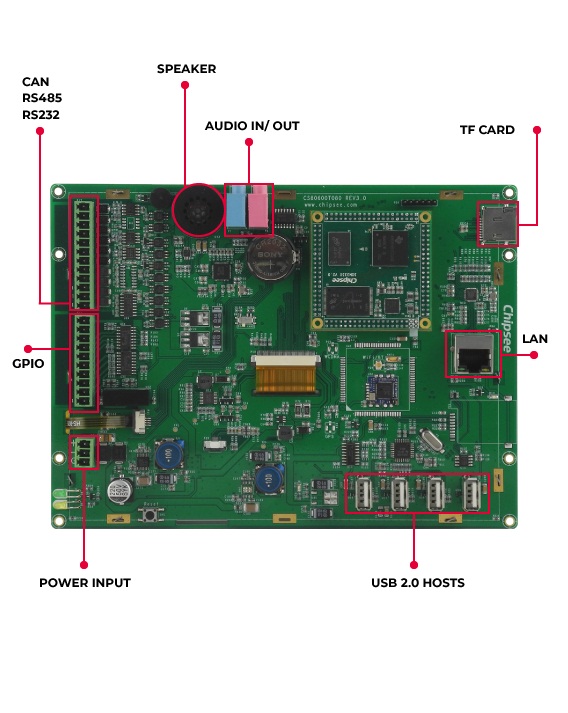

The EPC-A8-80-R has several expansion connectors on the back side – 4 USB 2.0 connectors, 1 LAN connector, 1 CAN connector, 2 RS485 connectors, and 2 RS232 connectors. It also features a 3.5mm audio connector.
Please note a WiFi/Bluetooth module, and a 3G module can be added. Contact us for more information.
The CAN, RS485, RS232 connector is a 12 Pin 3.81mm screw terminal connector (as you can see from the image).
The speed of the RS232 and the RS485 port is up to 115200 Baud.
The EPC-A8-80-R has one channel 100Mb Ethernet port and one TF (uSD) card connector. This device supports a TF card up to 32GB.
When it comes to audio capabilities, the EPC-A8-80-R has one 3.5mm Output/input connector and a 2W internal speaker.
The typical power consumption is 6W.
|Dimensions||199 × 149 × 29 mm|
|Display Size (inch.)||
Onboard WiFi optional
WCDMA + GPS
1x LAN 1000M
4x USB 2.0 HOST, Only 1 USB 2.0 can be customized to HOST or SLAVE
4x Input GPIO, 4x Output GPIO
1x CAN (can change to 2 channels)
Android, Angstrom,Debian, Linux（TI DVSDK）
TF (microSD) Card Slot
3.5mm Output/input Connector, Internal Speaker
-20°C ~ 70°C.
This System-on-Module makes it possible to integrate a whole computer into a device, significantly simplifying the customization of the device. This is why we are able to offer fast turnaround customization of all our products.
At the core of each Chipsee product lies a System-on-Module. This means all the products share the same core. It makes your application easily upgradable – without needing to rewrite a single line of code your application is upgraded, thanks to the same System-on-Module.

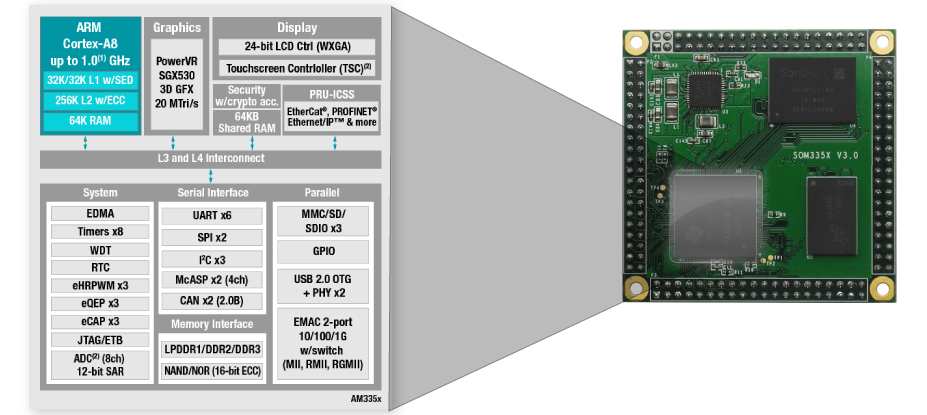

This product features the CS-SOM335X-V3 System-on-Module, based on the AM3354 ARM Cortex-A8 processor.
The AM3354 microprocessor is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS).
The microprocessor unit (MPU) subsystem is based on the ARM Cortex-A8 processor and the PowerVR SGX™ Graphics Accelerator subsystem provides 3D graphics acceleration to support display and gaming effects.
Display and Touchscreen:

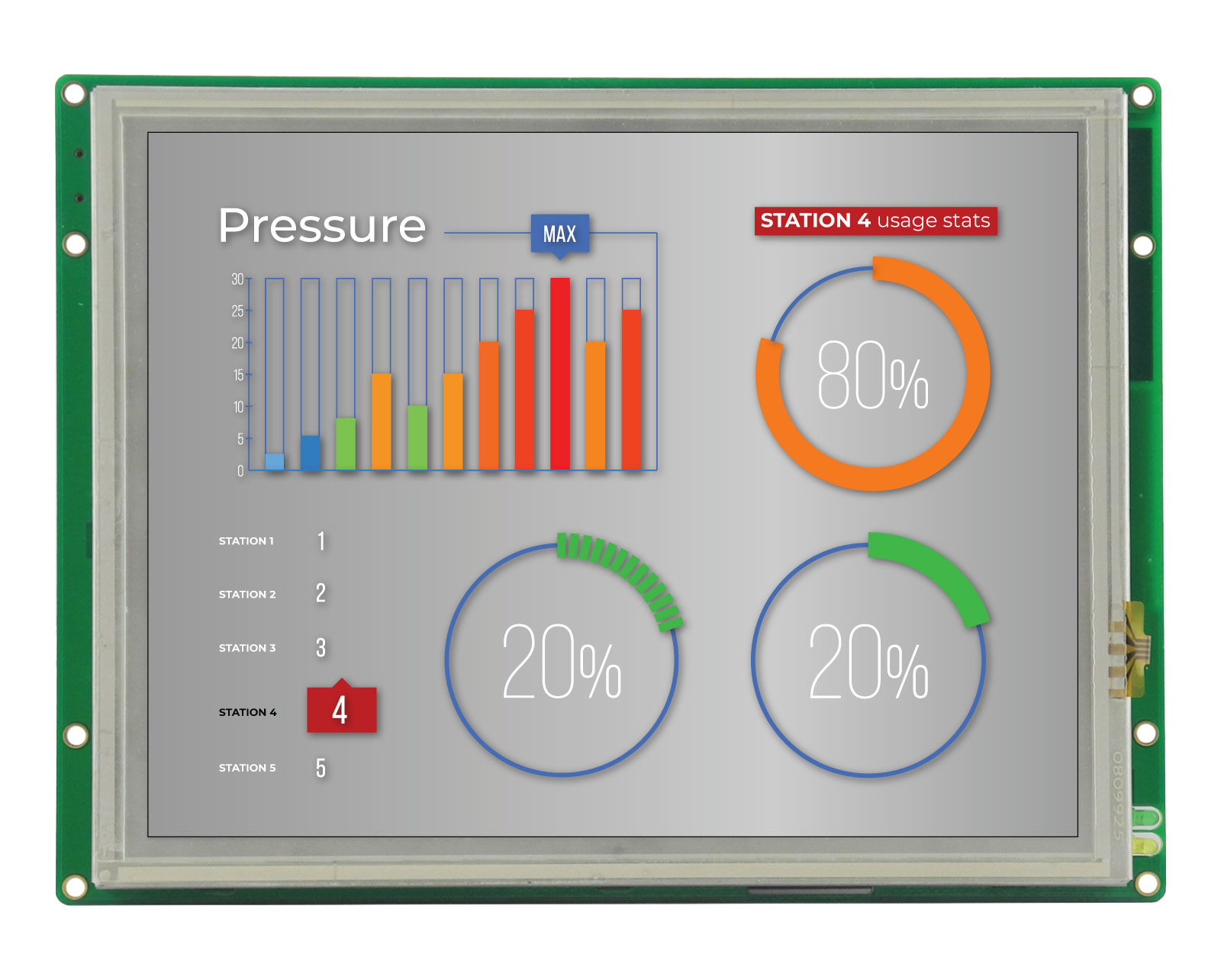

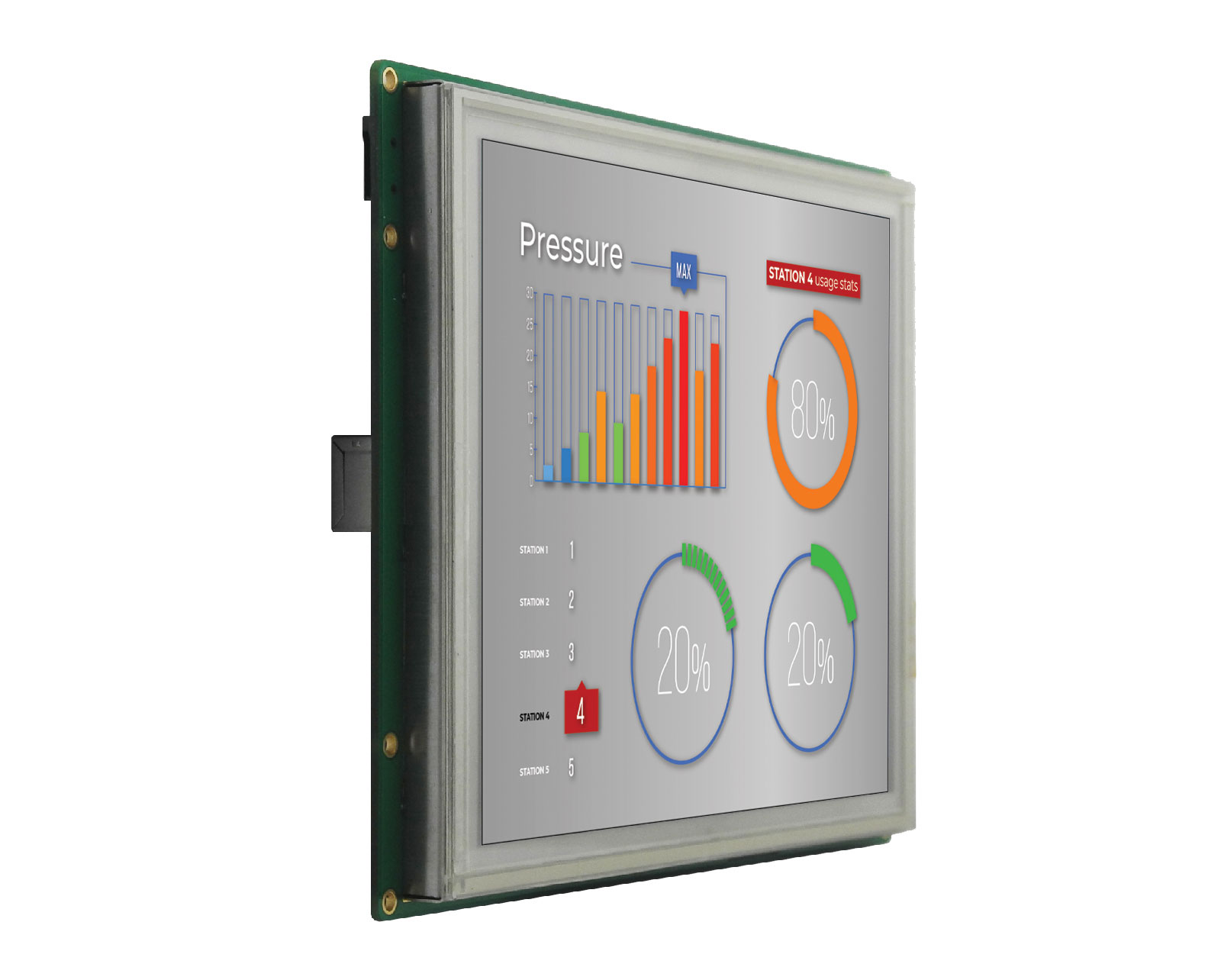

EPC-A8-80-R features a 8’’ resistive display with a 800×600 pixel resolution, and brightness of 250 nits.
When it comes to the viewing angle, the screen offers various angles: top, bottom, left, and right view.
Software and OS:
This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.
It supports the following operating systems:
- Android 4.1
- Linux with Qt 4.8
- Linux with Qt 5.5
- Debian 7.4
- Debian 8.4
- Angstrom v2012.12
Chipsee software engineers have created all the drivers, so every hardware feature is readily available for any standard development tool.
Of course, if your project requires an OS that is not on the list, please contact us, and we’ll make a customized version that suits your needs.
If you have any doubts, read our Product Selection guide.
