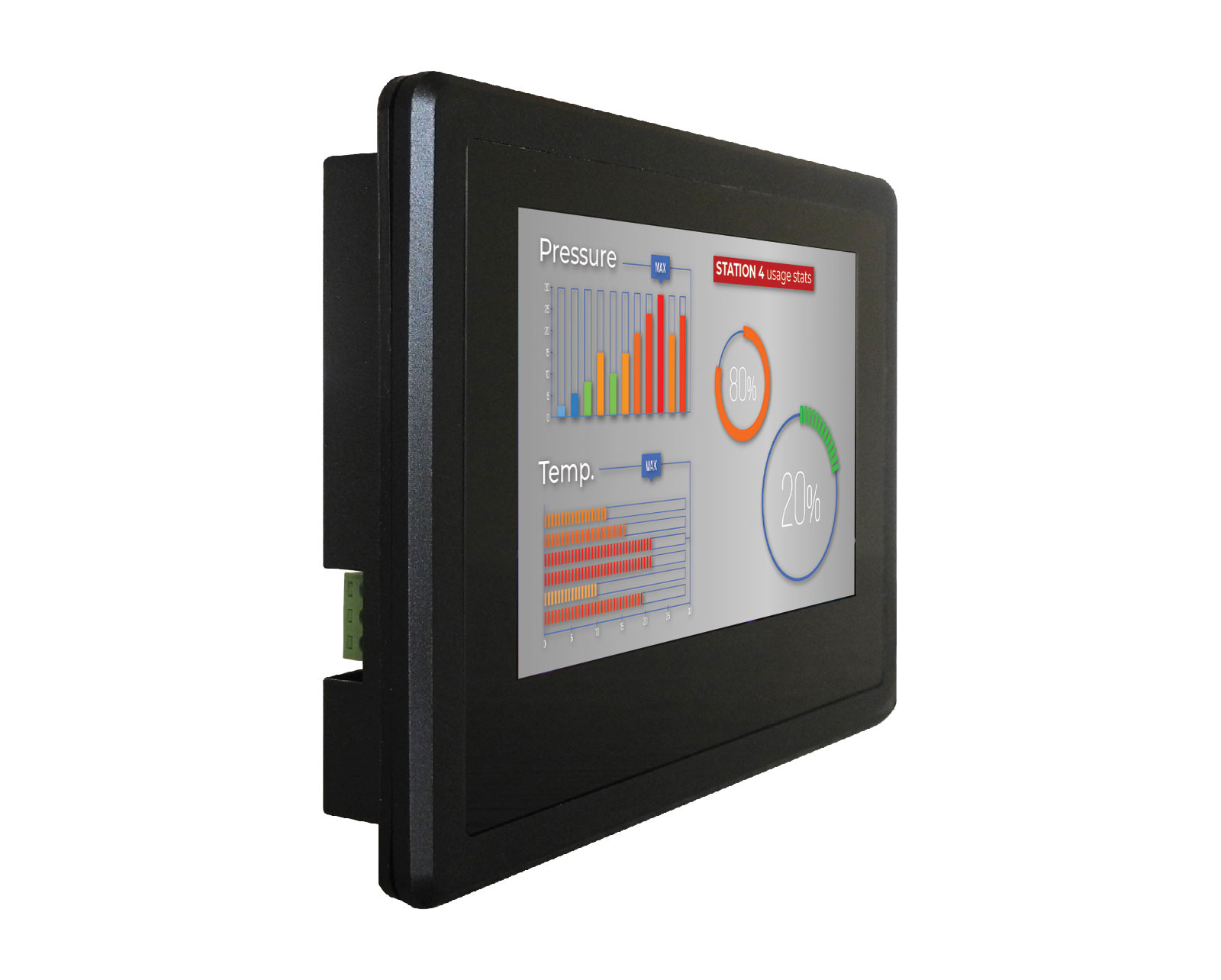

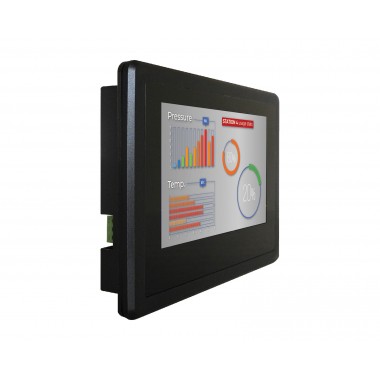

PPC-A8-50-C high-quality industrial panel computer 5-inch LCD
Computadora de tipo industrial de panel con pantalla táctil capacitiva de 5 pulgadas. Cuenta con un procesador ARM Cortex-A8 de alto rendimiento y aceleradora gráfica PowerVR SGX. Corre Linux y Android. Incluye carcasa.
Peso: 0.020 Kg
Disponibilidad: Sin Stock
El producto no está disponible para la venta en este momento
The PPC-A8-50-C (PN CS80480T050P) is a high-quality industrial panel computer, that features a 5-inch LCD with capacitive touchscreen, an ARM Cortex-A8 processor with 512MB DDR3 RAM and 4GB eMMC Flash, 100Mb Ethernet, 2 USB 2.0 ports, 1 CAN port, 2 RS232, 2 RS485 ports, as well as a 3.5mm audio connector.

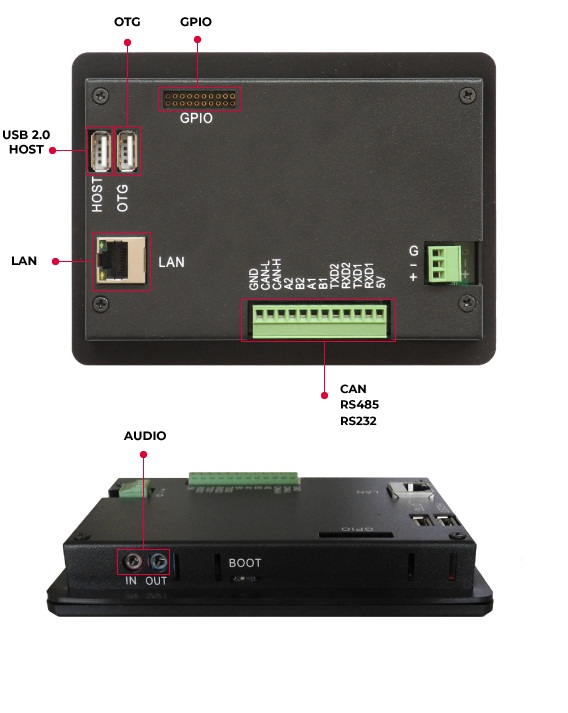

The PPC-A8-50-C has several expansion connectors on the back side – 2 USB 2.0 connectors, 1 LAN connector, 1 CAN connector, 2 RS485 connectors, and 2 RS232 connectors. It also features a 3.5mm audio connector.
Please note a USB WiFi/Bluetooth module can be added. Contact us for more information.
The CAN, RS485, RS232 connector is a 12 Pin 3.81mm screw terminal connector (as you can see from the image).
Since this display has 4 UART channels, they can be configured as RS232 or RS485. Please contact us if you require a different configuration.
The speed of the RS232 and the RS485 port is up to 115200 Baud.
The PPC-A8-50-C has one channel 100Mb Ethernet port and one TF (uSD) card connector. This device supports a TF card up to 32GB.
When it comes to audio capabilities, the PPC-A8-50-C has one 3.5mm Output/input connector and a 2W internal speaker.
The typical power consumption is 3.5W.
|Dimensions||150 × 110 × 26.5 mm|
|Display Size (inch.)||
External USB WiFi
1x LAN 1000M
1x USB 2.0 HOST, 1x USB 2.0 OTG customized to HOST or SLAVE
1x CAN (can change to 2 channels)
Android, Angstrom,Debian, Linuxï¼ˆTI DVSDKï¼‰
TF (microSD) Card Slot
-20°C ~ 70°C.
This System-on-Module makes it possible to integrate a whole computer into a device, significantly simplifying the customization of the device. This is why we are able to offer fast turnaround customization of all our products.
At the core of each Chipsee product lies a System-on-Module. This means all the products share the same core. It makes your application easily upgradable – without needing to rewrite a single line of code your application is upgraded, thanks to the same System-on-Module.

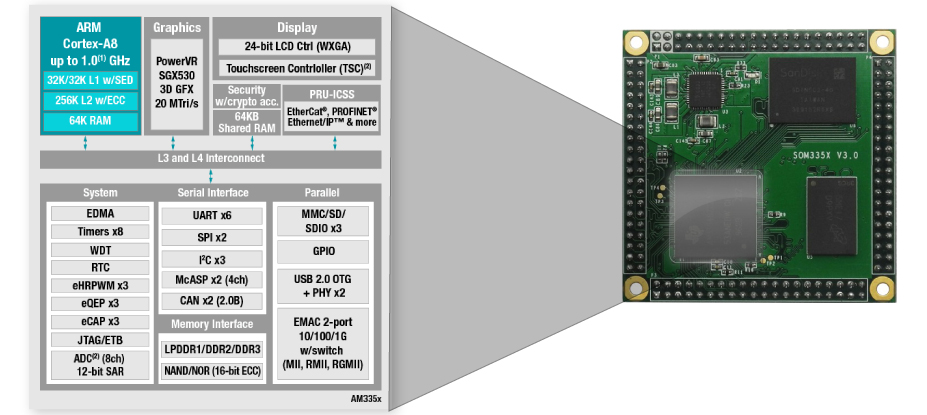

This product features the CS-SOM335X-V3 System-on-Module, based on the AM3354 ARM Cortex-A8 processor.
The AM3354 microprocessor is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS).
The microprocessor unit (MPU) subsystem is based on the ARM Cortex-A8 processor and the PowerVR SGX™ Graphics Accelerator subsystem provides 3D graphics acceleration to support display and gaming effects.
Display and Touchscreen:

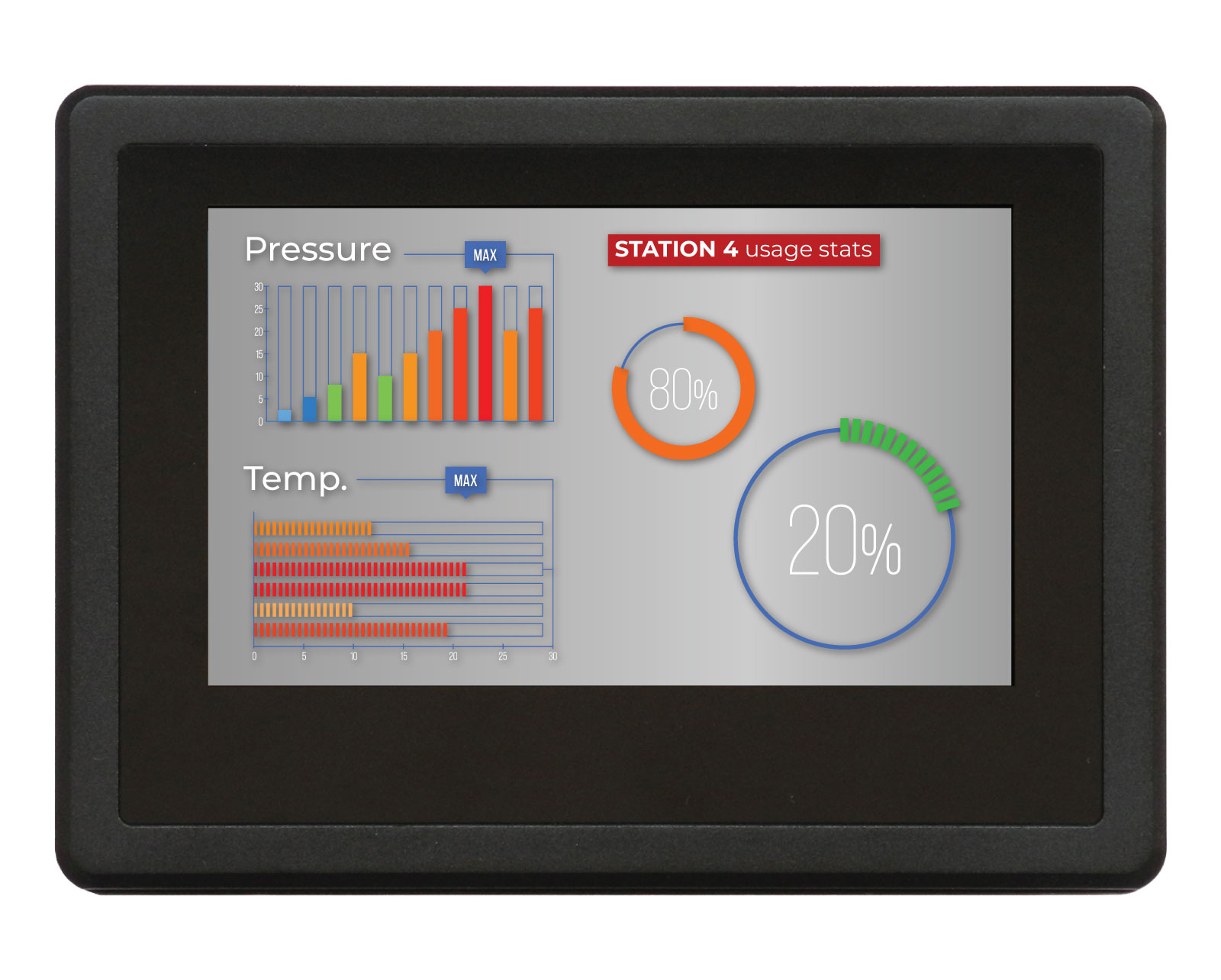

PPC-A8-50-C features a 5’’ display with an 800*480 pixel resolution, and a 5-point capacitive touch screen. 5-point capacitive touchscreens offer a stable and accurate control over the device, as well as great image clarity.
When it comes to the viewing angle, the screen offers various angles: top, bottom, left, and right view
Software and OS:
This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.
It supports the following operating systems:
- Android 4.1
- Linux with Qt 4.8
- Linux with Qt 5.5
- Debian 7.4
- Debian 8.4
- Angstrom v2012.12
