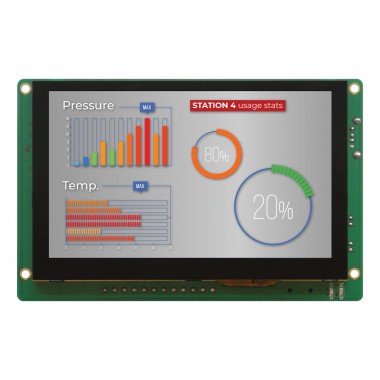

EPC-A8-50-C high-quality industrial embedded computer 5-inch LCD

Computadora de tipo industrial de panel con pantalla táctil capacitiva de 5 pulgadas. Cuenta con un procesador ARM Cortex-A8 de alto rendimiento y aceleradora gráfica PowerVR SGX. Corre Linux y Android.

COD: CS-EPC-A8-50-C

Peso: 0.200 Kg

Disponibilidad: Sin Stock

ARS 490620.00

El producto no está disponible para la venta en este momento

Características

The EPC-A8-50-C (PN CS80480T050E) is a high-quality industrial embedded computer, that features a 5-inch LCD with capacitive touchscreen, an ARM Cortex-A8 processor with 512MB DDR3 RAM and 4GB eMMC Flash, 100Mb Ethernet, 2 USB 2.0 ports, 1 CAN port, 2 RS232, 2 RS485 ports, as well as a 3.5mm audio connector.

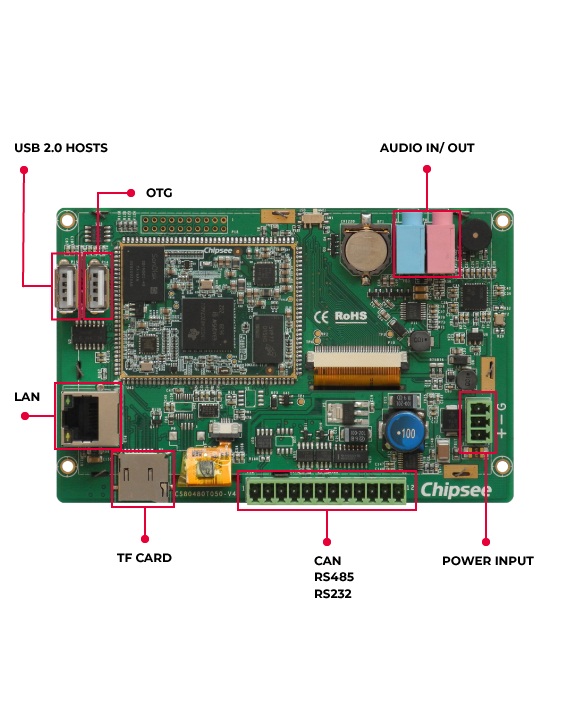

The EPC-A8-50-C has several expansion connectors on the back side – 2 USB 2.0 connectors, 1 LAN connector, 1 CAN connector, 2 RS485 connectors, and 2 RS232 connectors. It also features a 3.5mm audio connector.

Please note a USB WiFi/Bluetooth module can be added. Contact us for more information.

The CAN, RS485, RS232 connector is a 12 Pin 3.81mm screw terminal connector (as you can see from the image).

Since this display has 4 UART channels, they can be configured as RS232 or RS485. Please contact us if you require a different configuration.

The speed of the RS232 and the RS485 port is up to 115200 Baud.

The EPC-A8-50-C has one channel 100Mb Ethernet port and one TF (uSD) card connector. This device supports a TF card up to 32GB.

When it comes to audio capabilities, the EPC-A8-50-C has one 3.5mm Output/input connector and a 2W internal speaker.

The typical power consumption is 3.5W.

Hardware features:

Weight	500 g
Dimensions	134.2 × 86.82 × 28 mm
Form-factor	Embedded
Display Size (inch.)	5"
CPU	Cortex-A8
RAM	512MB
FLASH	4GB
Resolution	800*480
WiFi	External USB WiFi
USB	1x USB 2.0 HOST, 1x USB 2.0 OTG customized to HOST or SLAVE
Ethernet	1x LAN 100M
GPIO	8x GPIO
RS485	2x RS485
CAN	1x CAN (can change to 2 channels)
RS232	2x RS232
Buzzer	Yes
Power Consumption	3.5W
Certification	CE
OS	Android, Angstrom,Debian, Linuxï¼ˆTI DVSDKï¼‰
External storage	TF (microSD) Card Slot
Touch Screen	Capacitive, Resistive
Audio	3.5mm Output/input Connector
Power Input	6~36V DC
Working Temperature	-20°C ~ 70°C.

System-on-Module:

This System-on-Module makes it possible to integrate a whole computer into a device, significantly simplifying the customization of the device. This is why we are able to offer fast turnaround customization of all our products.

At the core of each Chipsee product lies a System-on-Module. This means all the products share the same core. It makes your application easily upgradable – without needing to rewrite a single line of code your application is upgraded, thanks to the same System-on-Module.

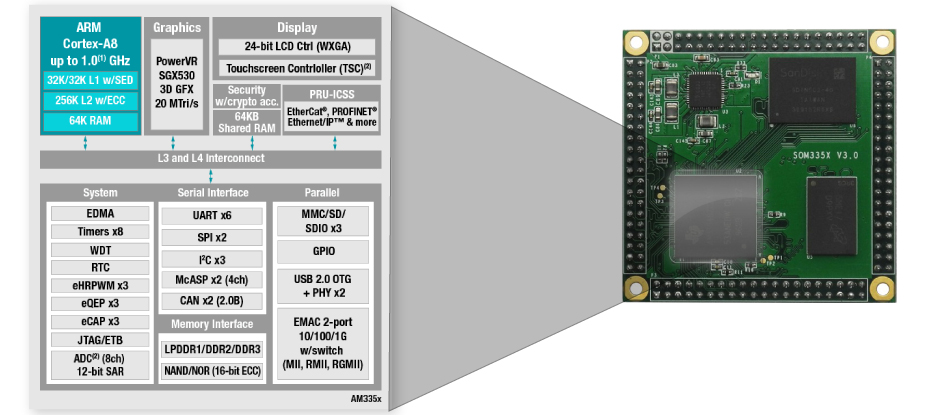

This product features the CS-SOM335X-V3 System-on-Module, based on the AM3354 ARM Cortex-A8 processor.

The AM3354 microprocessor is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS).

The microprocessor unit (MPU) subsystem is based on the ARM Cortex-A8 processor and the PowerVR SGX™ Graphics Accelerator subsystem provides 3D graphics acceleration to support display and gaming effects.

Display and Touchscreen:

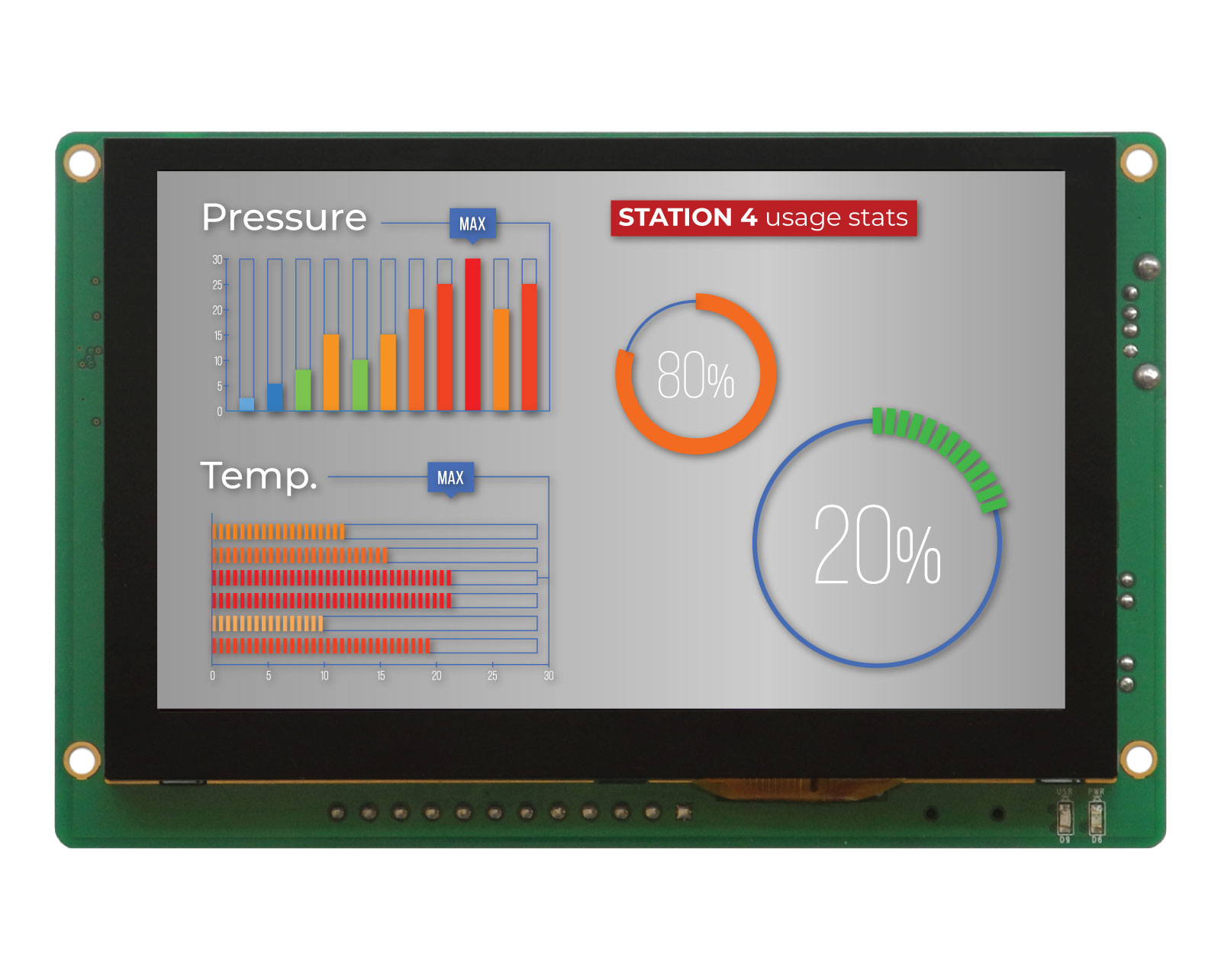

EPC-A8-50-C features a 5’’ display with an 800*480 pixel resolution, and a 5-point capacitive touch screen. 5-point capacitive touchscreens offer a stable and accurate control over the device, as well as great image clarity.

When it comes to the viewing angle, the screen offers various angles: top, bottom, left, and right view.

Software and OS:

This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.

It supports the following operating systems:
