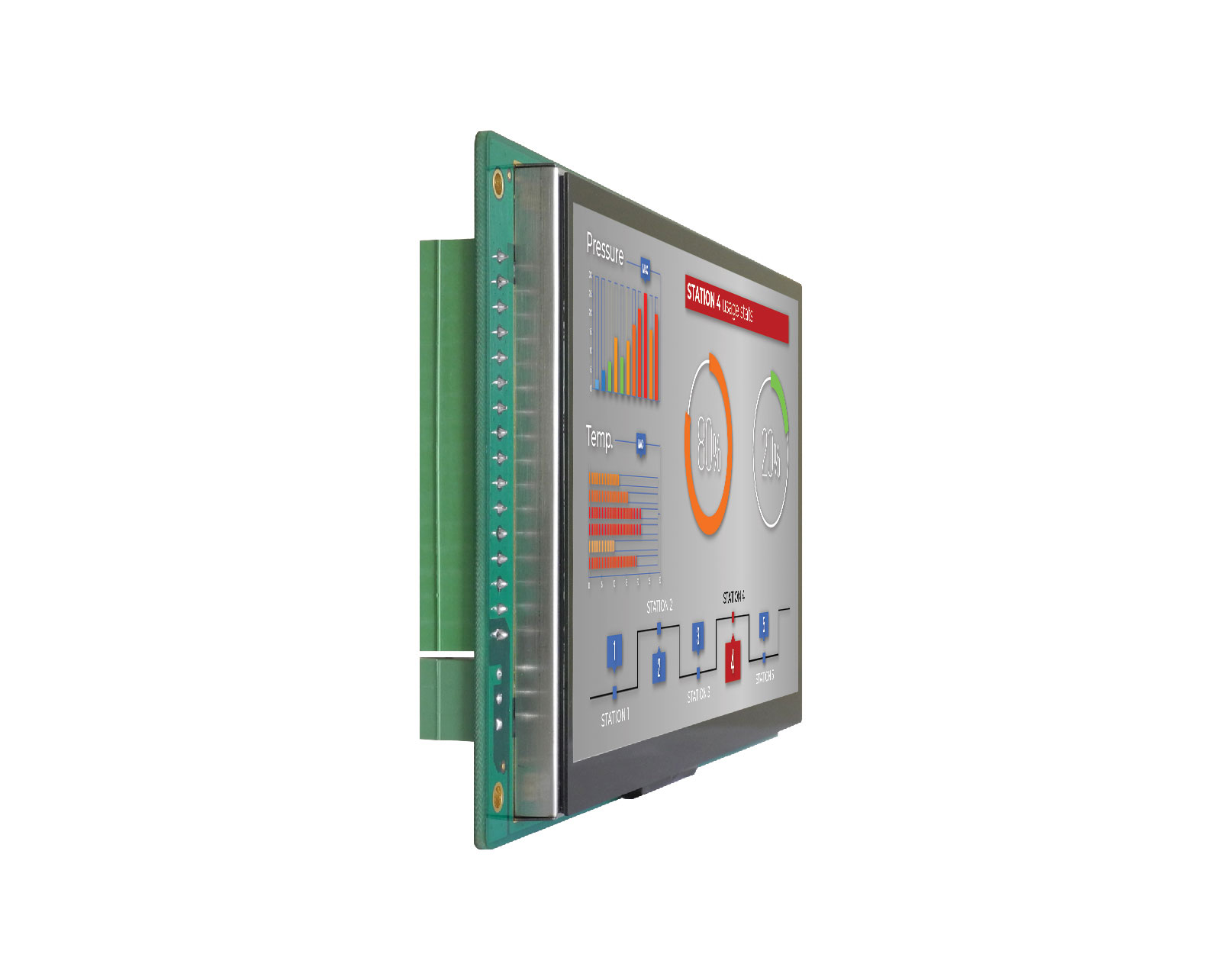

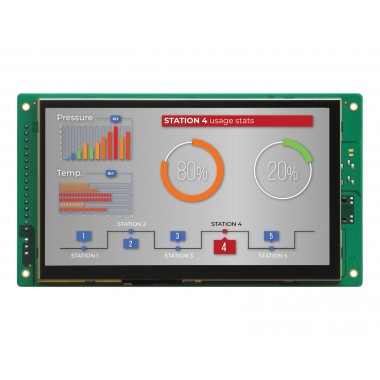

EPC-A7-70HB-C high-quality industrial embedded computer 7-inch LCD

EPC-A7-70HB-C high-quality industrial embedded computer

Computadora de tipo industrial de panel con pantalla táctil capacitiva de 7 pulgadas, de alto brillo. Está basada en el micro iMX6UL ARM Cortex-A7 de alto rendimiento y corre Linux (preinstalado). Integra un módulo para gestión de energía.

COD: CS-EPC-A7-70HB-C

Peso: 0.200 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 23587.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

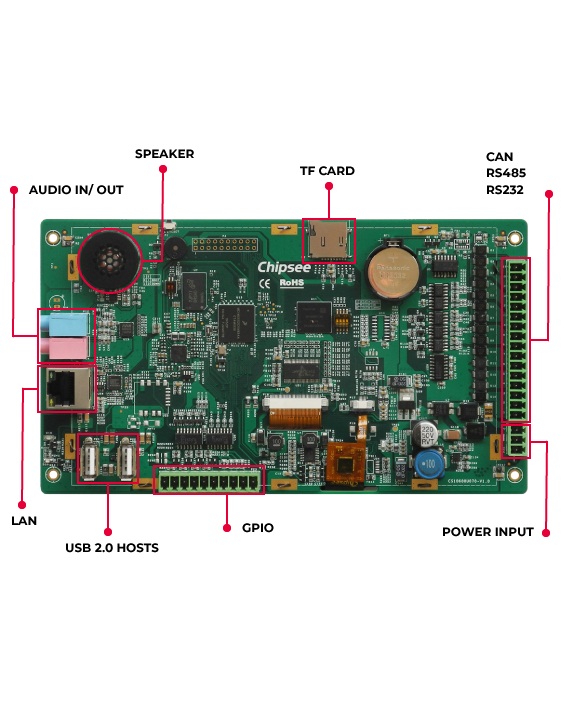

The EPC-A7-70HB-C with High Brightness has several expansion connectors on the back side – 2 USB 2.0 connectors, 1 LAN connector, 2 CAN connectors, 3 RS485 connectors, and 2 RS232 connectors. It also features a 3.5mm audio connector and a TF card slot.

Please note a WiFi/Bluetooth module can be added. Contact us for more information.

The CAN, RS485, RS232 connector is a 12 Pin 3.81mm screw terminal connector (as you can see from the image).

The speed of the RS232 and the RS485 port is up to 115200 Baud.

The EPC-A7-70HB-C with High Brightness has one channel 100Mb Ethernet port and one TF (uSD) card connector. This device supports a TF card up to 32GB.

When it comes to audio capabilities, the EPC-A7-70HB-C with High Brightness has one 3.5mm Output/input connector and a 2W internal speaker.

The typical power consumption is 5W.



Hardware features:

Weight 500 g
Dimensions 190 × 112 × 28 mm
Form-factor

Embedded

Display Size (inch.)

7"

CPU

Cortex-A7

RAM

512MB

FLASH

8GB

Resolution

1024*600

Brightness (cd/m²)

500

Bluetooth

Onboard Bluetooth

WiFi

Onboard WiFi optional

Ethernet

1x LAN 100M

USB

2x USB 2.0 HOST (1 Channel can change to OTG)

GPIO

4x Isolated Input, 4 Isolated Output 5~24V (can drive 500mA current)

RS485

3x RS485

CAN

2x CAN

RS232

2x RS232

Buzzer

Yes

Power Consumption

5W

Certification

CE

OS

Debian, Linux

External storage

TF (microSD) Card Slot

Touch Screen

Capacitive

Audio

3.5mm Output/input Connector, Internal 2W Speaker

Power Input

6~36V DC

Working Temperature

-20°C ~ 70°C.



Processor:

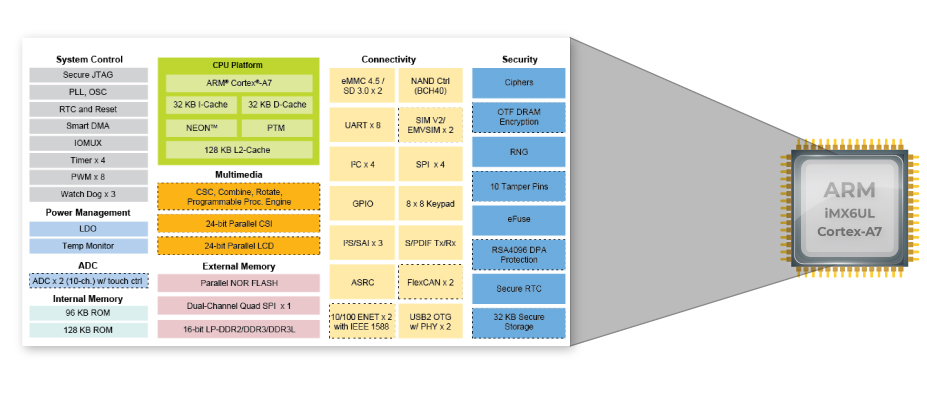

This product features the iMX6UL ARM Cortex-A7 processor – a high performance, ultra-efficient processor family featuring an advanced implementation of a single Arm® Cortex®-A7 core, which operates at speeds up to 696 MHz. The i.MX 6UltraLite applications processor includes an integrated power management module that reduces the complexity of external power supply and simplifies power sequencing.



Display and Touchscreen:

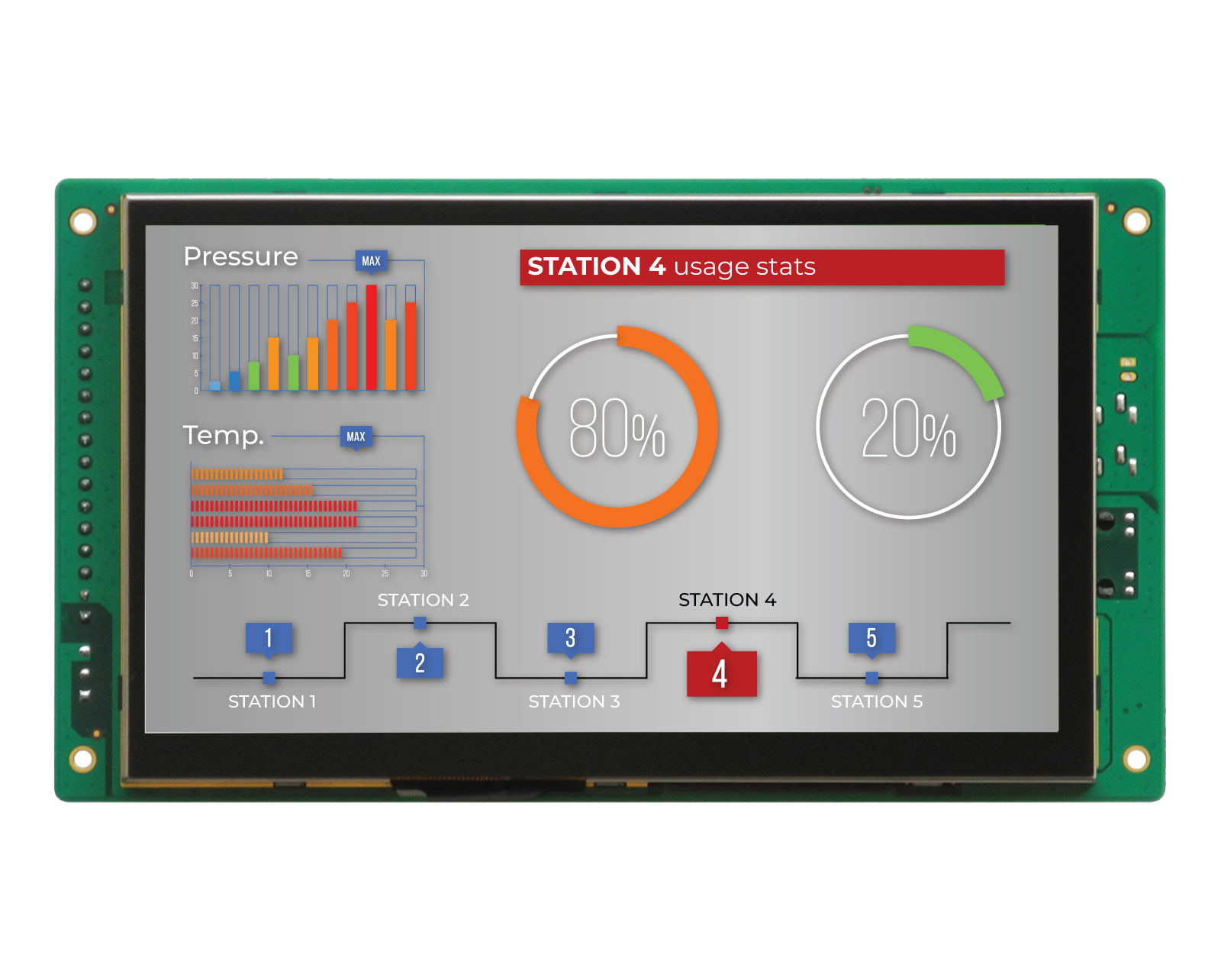

The EPC-A7-70HB-C has a 7’’ 5-point capacitive touch screen, with a 1024×600 resolution. 5-point capacitive touchscreens offer a stable and accurate control over the device.

The HMI connector on the back of the panel allows the device to work in a double monitor configuration.

Capacitive touchscreens offer great image clarity. They are also very durable and resistant to environmental contaminants like dust and water. These types of screens work best with either a finger or a stylus with a conductive tip.



Software and OS:

This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.

It supports the following operating systems:

  • Chipsee Linux Qt 5.5
  • Debian 8.10

* Chipsee Linux is based on NXP Yocto framework that we have integrated with:

  1. A Chipsee Hardware Test Application.
  2. An initialization script for GPIO/Buzzer/Audio.
  3. Multiple libraries, such as the libQt5Sql to develop Qt application with SQL.
  4.  Various packages, such as the ntfs-3g to use NTFS.
