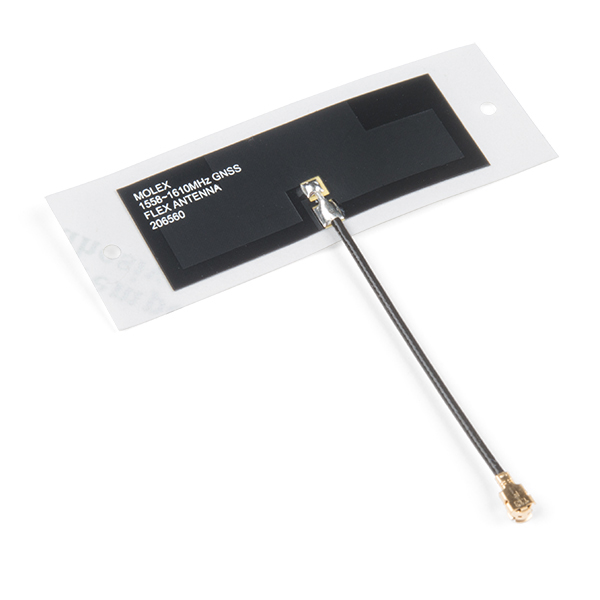

Molex Flexible GNSS Antenna - U.FL (Adhesive)

Molex Flexible GNSS Antenna - U.FL (Adhesive)

Antena adhesiva para aplicaciones GNSS con cable de 5 cm y conector U.FL. Soporta GPS, Galileo, BeiDou, y GLONASS.

COD: SFGPS15246

Peso: 0.001 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 8729.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The Molex GNSS Flex antenna is a great option for basic GNSS applications and will work with any of our GNSS boards equipped with a U.FL at a fraction of the cost of many of its big brothers. This antenna supports GPS, Galileo, BeiDou, and GLONASS in three different frequency bands (1561 +/-3MHz, 1575 +/-3MHz, 1602 +/-3MHz).

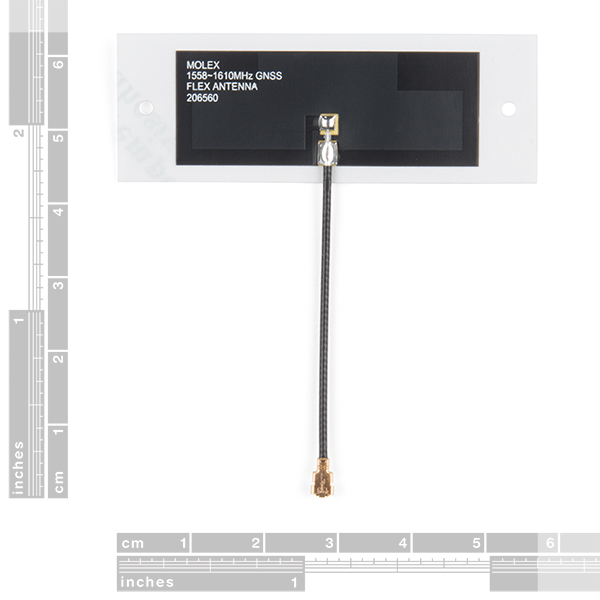

The Molex Flexible GNSS Antenna has an incredibly small footprint at 40.40mm x 15.40mm, while the adhesive pad is a bit bigger at 56.40mm x 20mm. Even better, the antenna is only 0.1mm thick (or about the thickness of a piece of paper). Simply remove the backing and stick this to any surface, or leave the backing on (just be careful of the fragile U.FL connector).

Features:

  • Cable length: 50mm

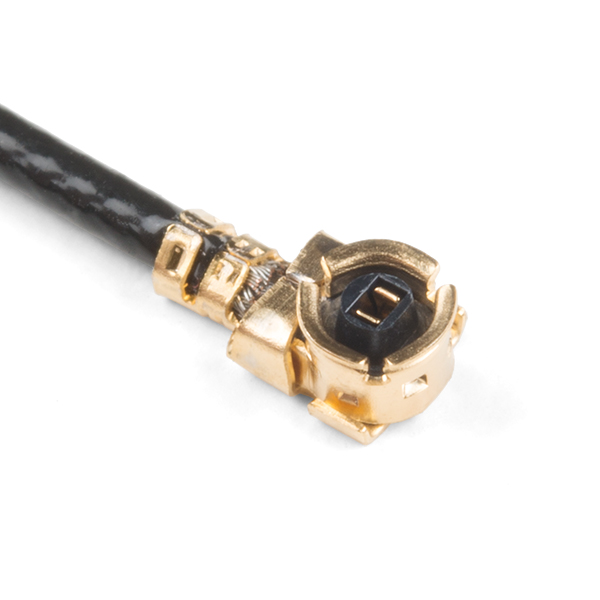

  • Connector: U.FL
  • Radiation Pattern: Omnidirectional
  • Polarization: Linear
  • Weigth: 0.466 g
  • Mounting Style: Adhesive
  • Protocol: BeiDou, Galileo, GLONASS, GPS
  • Return Loss: < -8dB
  • Peak Gain (Max): 1.1 dBi+
  • Efficiency: >74%
  • Input Impedance 50 Ohms
