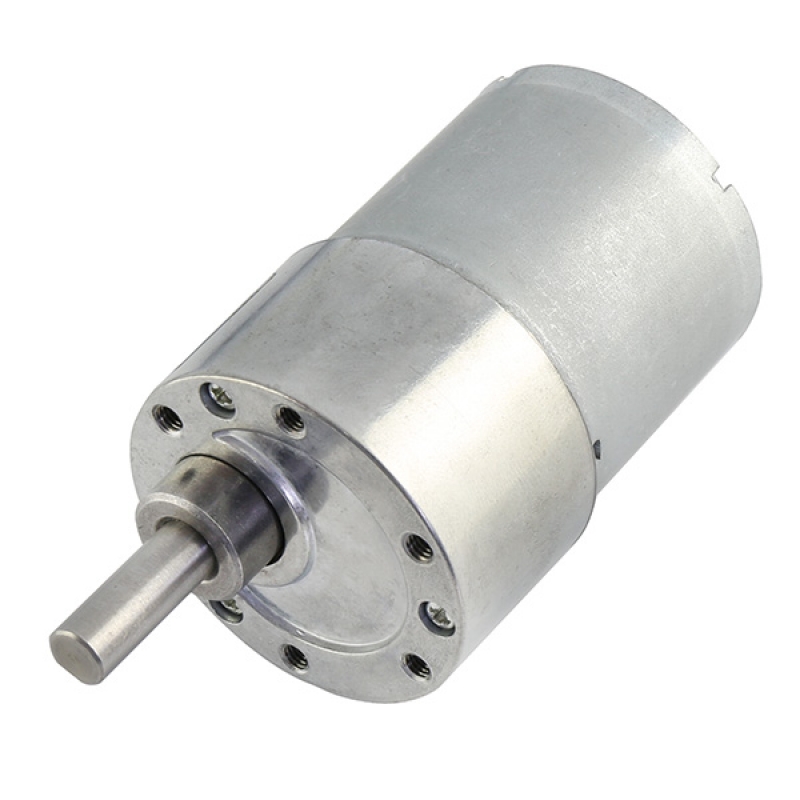

30:1 Metal Gearmotor 37Dx52L mm

30:1 Metal Gearmotor 37Dx52L mm

Motorreductor DC de 12V/330 RPM, de relación de engranajes 30:1. Posee un torque de 14kg.cm e incorpora un eje tipo D de 6 mm de diámetro y 16mm de largo.

COD: P001103

Peso: 0.190 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 43978.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

General specifications:

Gear ratio: 30:1
No-load speed @ 12V: 330 rpm
No-load current @ 12V: 0.15 A
Stall current @ 12V: 5.5 A3
Stall torque @ 12V: 14 kg·cm3
Max output power @ 12V: 12 W
No-load speed @ 6V: 170 rpm4
No-load current @ 6V: 0.1 A4
Stall current @ 6V: 3.0 A5
Stall torque @ 6V: 7.9 kg·cm5



Performance at maximum efficiency:

Max efficiency @ 12V: 54 %
Speed at max efficiency: 280 rpm
Torque at max efficiency: 1.8 kg·cm
Current at max efficiency: 0.78 A
Output power at max efficiency: 5.1 W



Dimensions:

Size: 37D × 52L mm1
Weight: 185 g
Shaft diameter: 6 mm2



File downloads:

Dimension diagram of the Pololu 37D mm Metal Gearmotors (461k pdf)

3D models of 37D mm gearmotors (5MB zip) This file contains 3D models (in the step file format) of the 37D mm gearmotors with and without encoders.
