Laser Diode - 5mW 650nm Red

Laser Diode - 5mW 650nm Red

Diodo láser de baja potencia, ideal para guías.

COD: D001054

Peso: 0.012 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 18501.00


El producto no está disponible para la venta en este momento

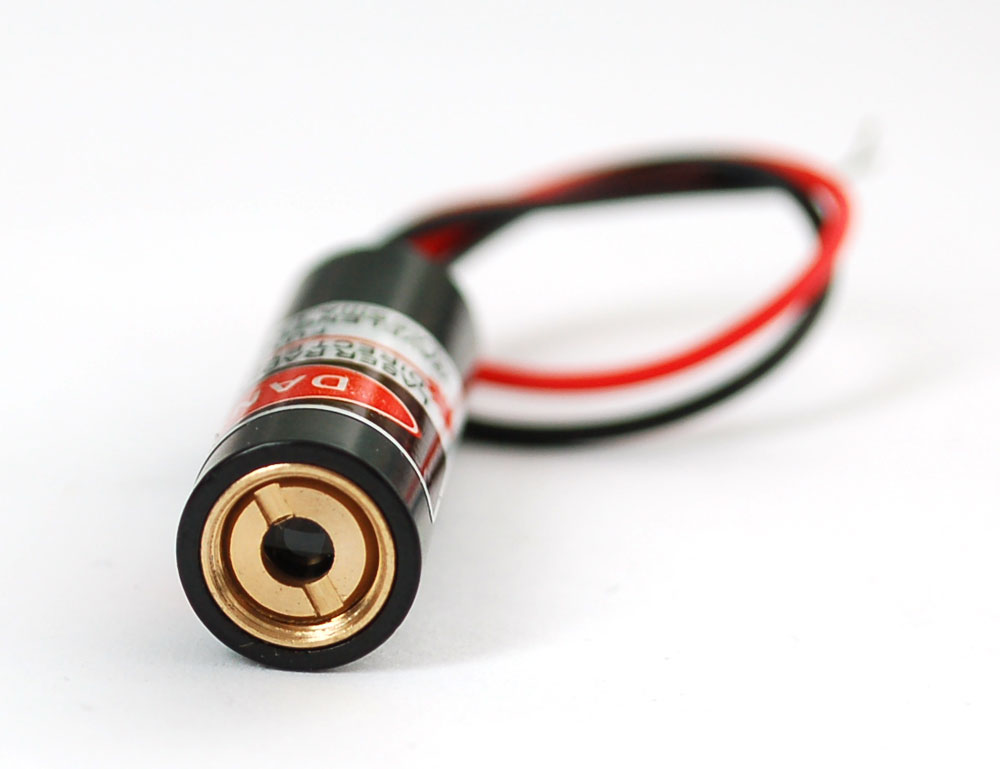

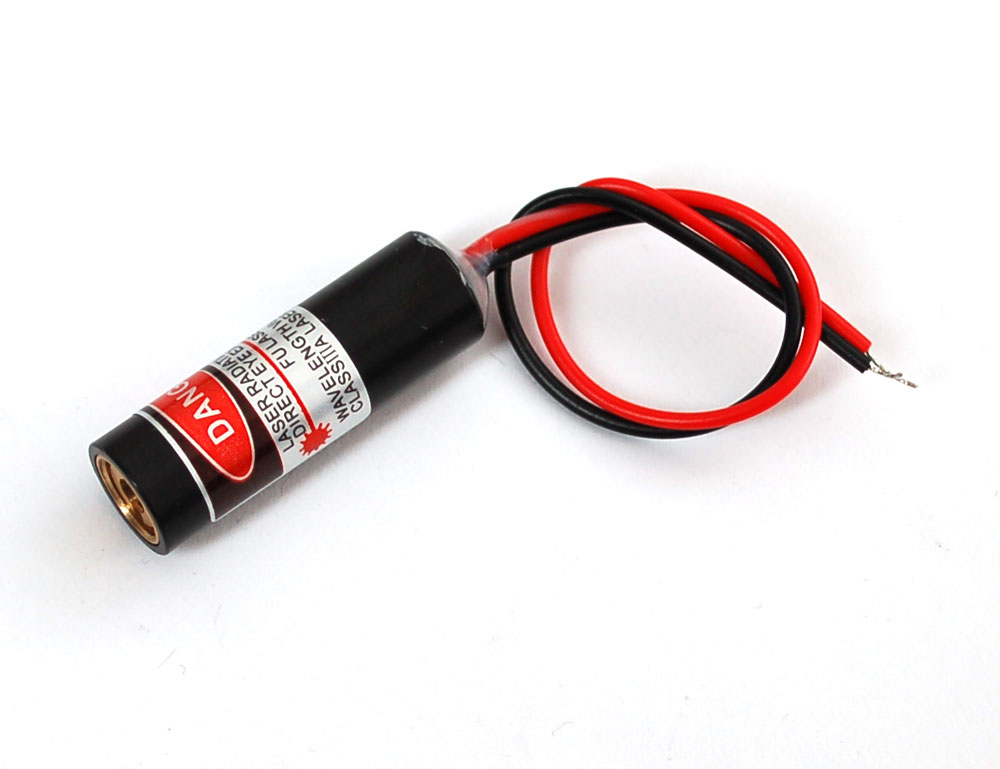

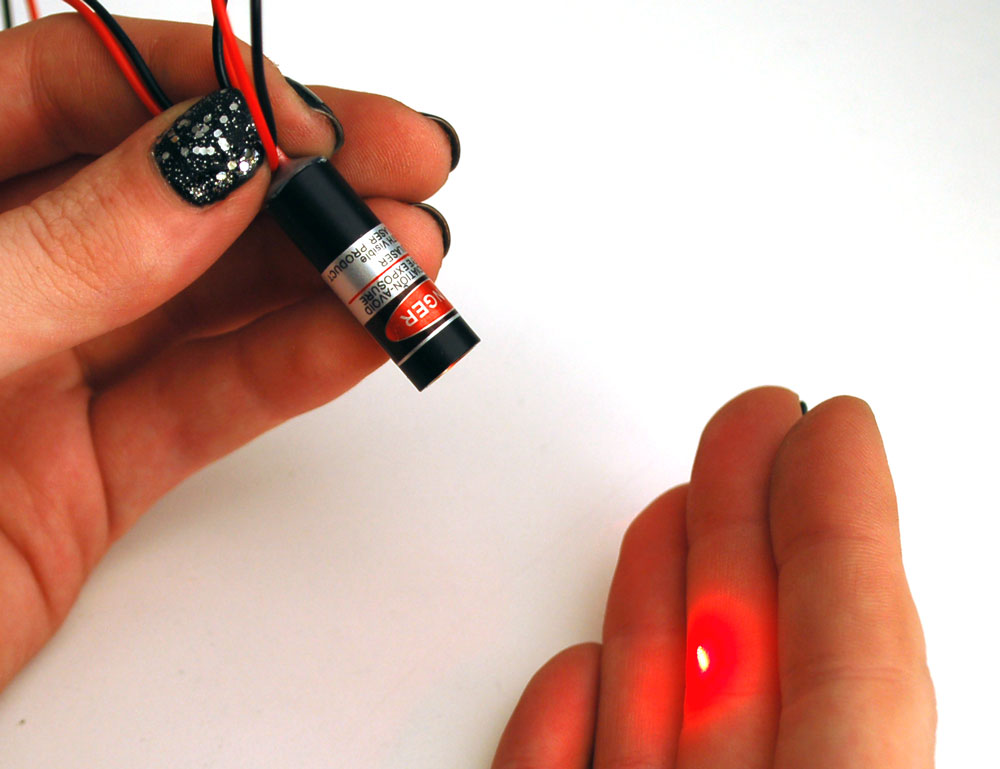

You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing! These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project. You can use these for laser harps, electronic 'trip wires', laser-vision guidance, and more! Simply connect power to the red and black wires and you will be lasing in no time.

Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them. For more information on laser safety and ratings check out the Wikipedia page

  • Weight: 11.85g
  • Diameter: 10.11mm
  • Length: 32.82mm
  • Wire length: 100mm
  • 650nm wavelength
  • 2.8 - 5.2V DC voltage input
  • 25mA max current draw
  • Operating temperature -10°C to 40°C

Galería de Imágenes


Escribir Comentario

OpenHacks (27/05/2016 - 09:49)

Hola Marcelo, el láser de esta publicación es de muy baja potencia como para realizar grabados. Éste es el adecuado: . Está por ingresar pronto en stock. Saludos!

Marcelo (26/05/2016 - 14:33)

Hola queria saber si con este laser se pueden realizar grabados en madera y/o acrilico. Gracias
