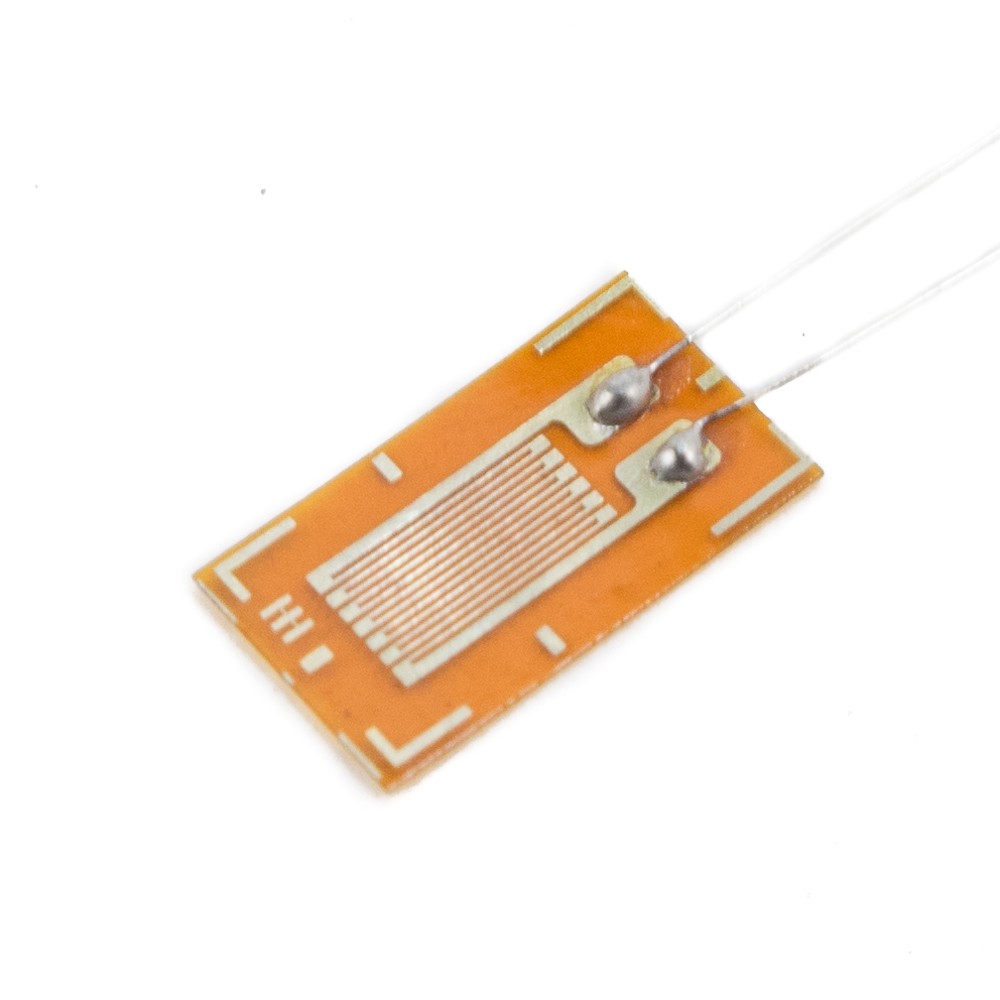

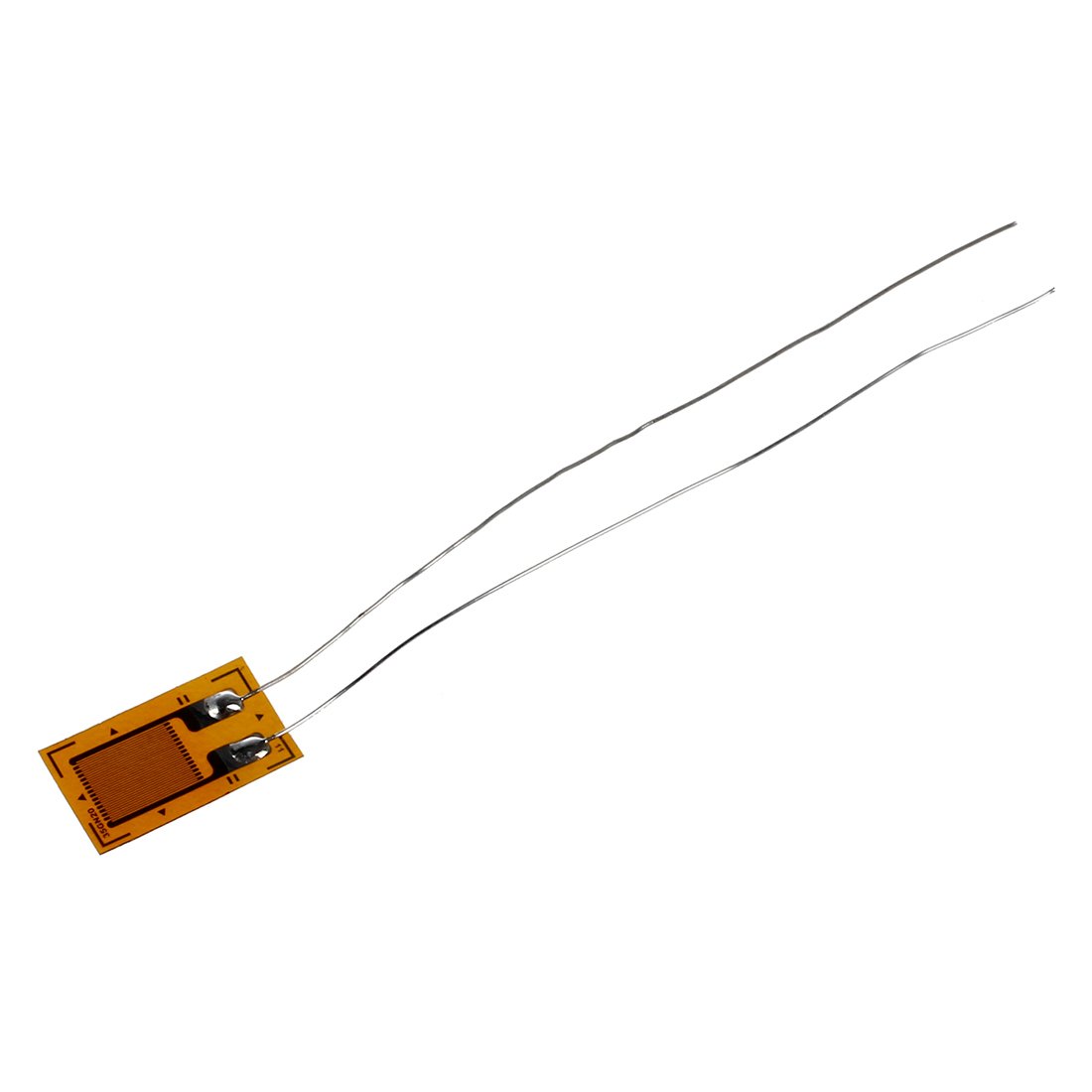

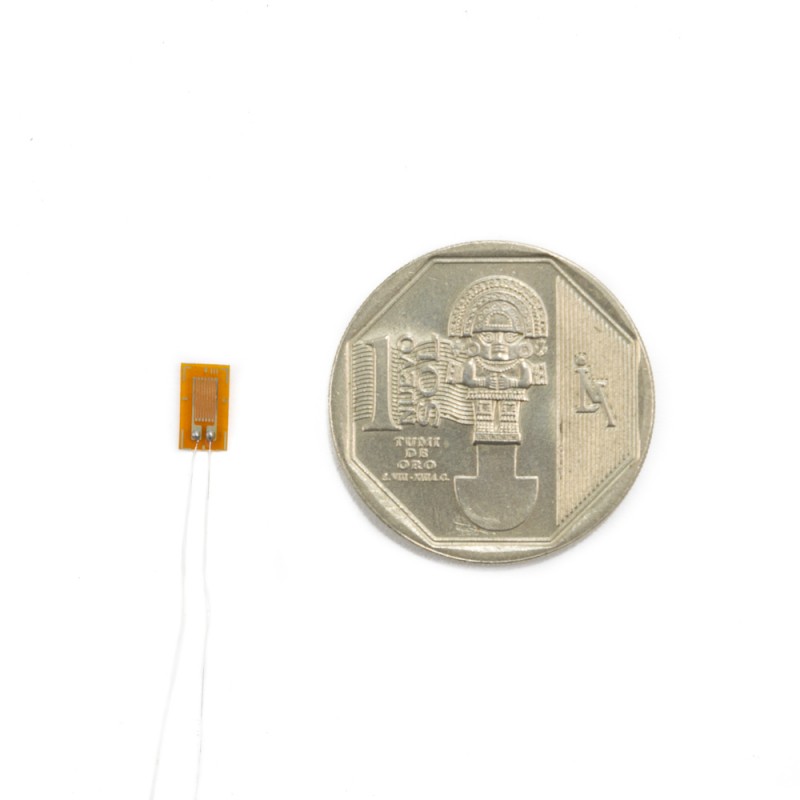

Resistive Strain Gauge Foil [Type] - R1 BX
![Resistive Strain Gauge Foil [Type] - R1 BX](/uploadsproductos/galga-extensiometrica-bx120-3aa.jpg)
OFERTA POR RENOVACION DE STOCK!!! Galga Extensiométrica de tipo resistiva de 120 Ohm.
COD: TROSMO1037
Peso: 0.005 Kg
Disponibilidad: En Stock
ARS 1990.00
El producto no está disponible para la venta en este momento
Características
Description:
R1-BX
- Resistive value 120 ohm
- Input voltage 3-10V
- Gauge Factor sensitivity：2.0－2.20
- Precision level: 0.02
- Size 6.6*3.6 mm
- maximum strain : 20000 um/m
- Temperature -30~60 degree.
- Each end has two very tiny solder cable lead out. Siliver wires, without insulated materials covered.
The sensor should be glued on target medium, see more details about strain gauge on wikipedia.
