XL6009 DC-DC ADJ Adjustable Boost Module 4.5-32V To 5-52V

XL6009 DC-DC ADJ Adjustable Boost Module 4.5-32V To 5-52V

Fuente switching step-up (elevadora) de alta eficiencia. Admite tensiones de entrada tan bajas como 3 VDC, y permite obtener hasta 35 VDC a la salida, con una corriente máxima de entrada de 4A. Basada en el XL6009.

COD: HTHR0214-54

Peso: 0.025 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 502.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

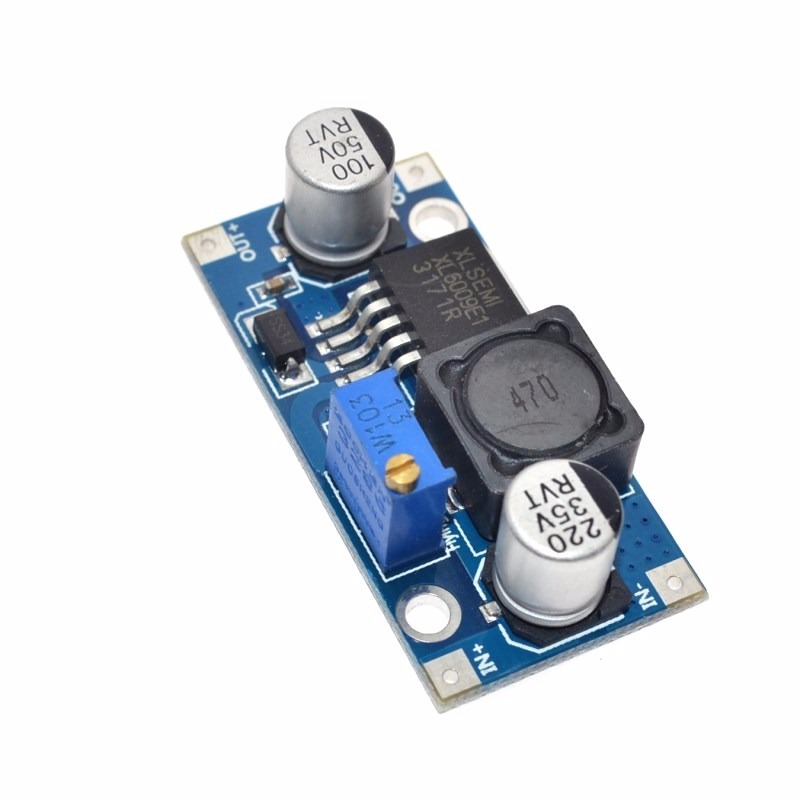

This is a high-performance switching current 4A boost (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip, performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.

  • Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
  • Wide output voltage 5V ~ 35V;
  • Built-4A efficient MOSFET switch, so that the efficiency up to 94%; (LM2577 current is only 3A)
  • Ultra-high switching frequency 400KHz, you can use a small-capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller. (LM2577 frequency only 50KHz)



Features:

  • Model: XL6009 boost module.
  • Module Properties: non-isolated step-up (BOOST).
  • Rectification: Non-Synchronous Rectification.
  • Input range: 3V ~ 32V.
  • Output range: 5V ~ 35V.
  • Input Current: 4A (max), empty load current 18mA (5V input, 8V output, empty load current 18mA, the higher the voltage, the greater the empty load current).
  • Conversion efficiency: <94% (the greater the pressure, the lower the efficiency).
  • Switching Frequency: 400KHz.
  • Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple).
  • Load regulation: ± 0.5%.
  • Voltage regulation: ± 0.5%.
  • Working temperature: -40 ºC ~ +85 ºC.

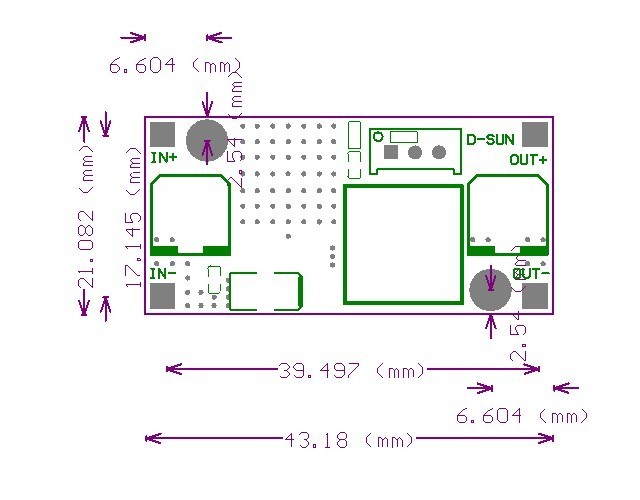

  • Dimensions: 43mm * 21mm * 14mm (L * W * H).
