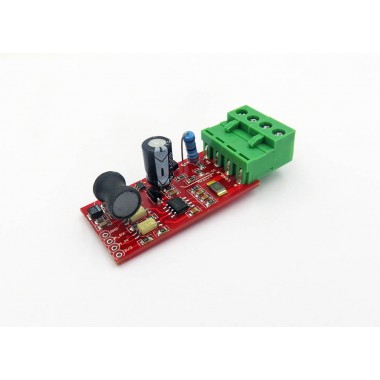

Energy Meter HLW8032 Breakout Board

Energy Meter HLW8032 Breakout Board

Medidor de tensión (AC), corriente (AC), potencia activa, potencia aparente, y factor de potencia de alta precisión y bajo consumo basado en el HLW8032. Provee interfaz de comunicación UART. Se alimenta con 5V. Posee salida aislada del resto de la red. Ver documentación adjunta para más información.

COD: TROSVC1031

Peso: 0.050 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 1331.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

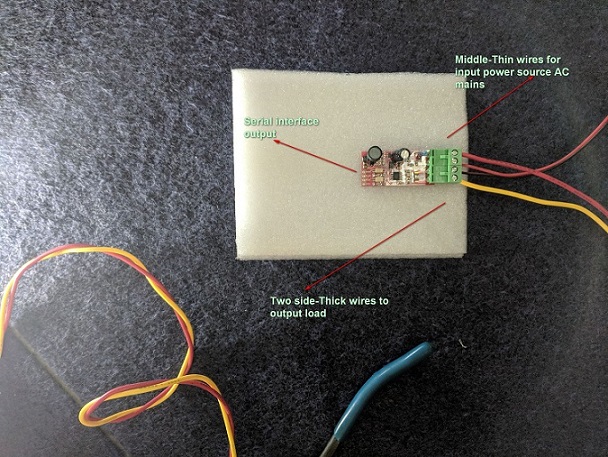

Please use two middle pins for power AC mains input, two side pins for load output. Please check attached image. (few old version has wrong silk print.)

Board Features:

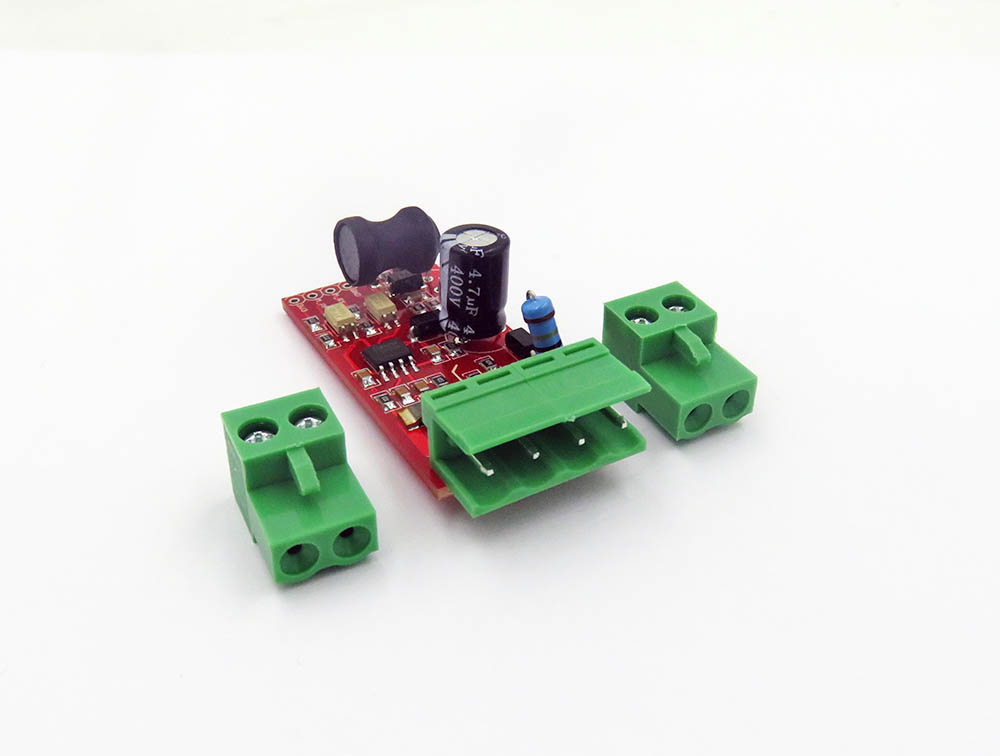

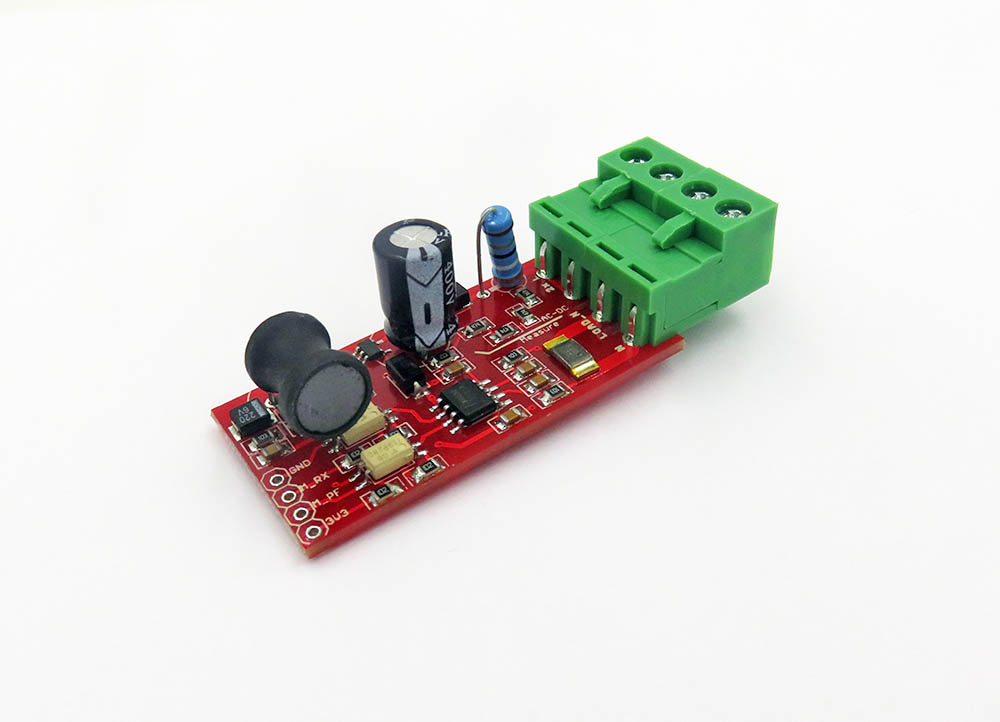

  • Based on official design, on board HLW8032 measurement circuits.

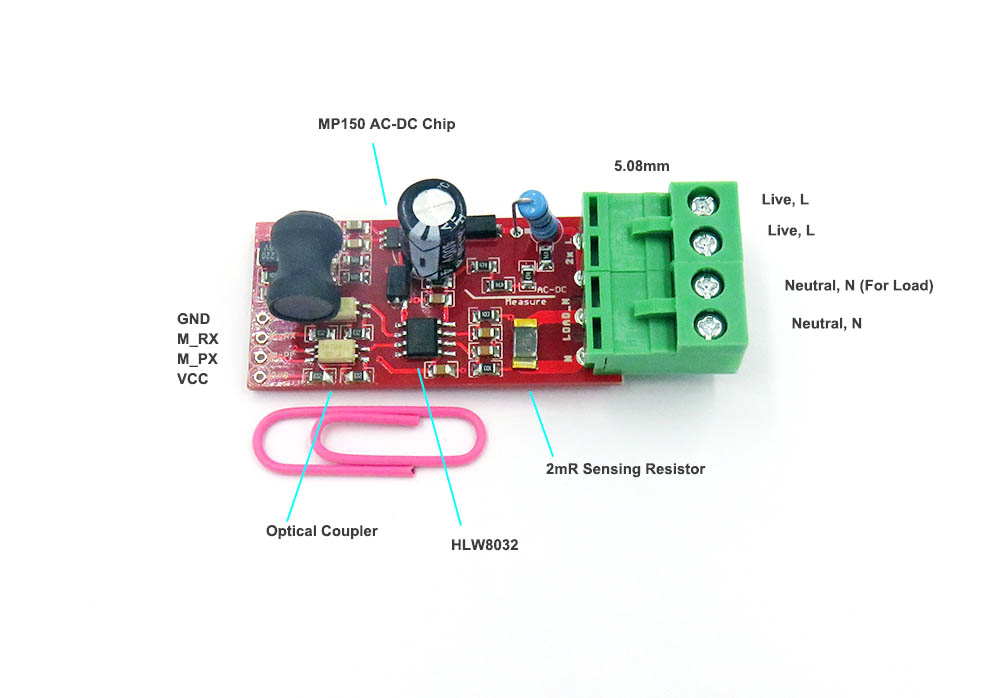

  • All standard sensing parts, 4x 470K resistors for input voltage, 2mR sensing resistor for current.
  • No need cilibration, output data baudrate 4800. Output register value instead of pluse of HLW8012.
  • On board AC-DC power supply circuits MP150 for HLW8032, offer about 60mA current. No need extra AC-DC circuits or unit to power it up.
  • Fully isolated output, safe to use, output pins GND, M_RX, M_PF, VCC. Output RX includes voltage, current, power used, pluse, etc.

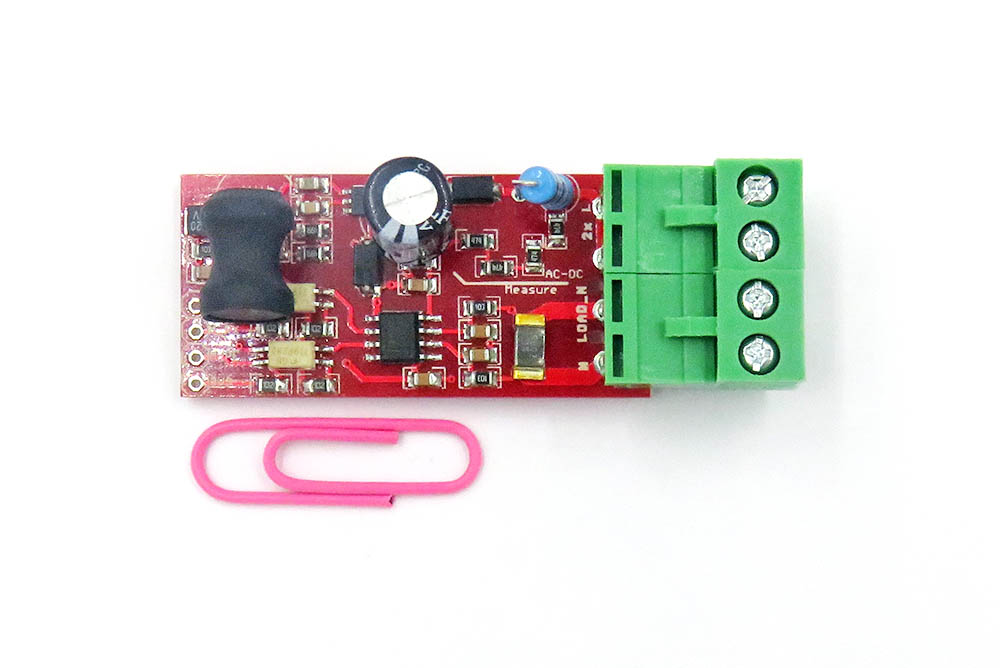

  • Input Terminal, please notice is is L(Live), L(Live), N_LOAD (Neutral for load), N (Neutral), please notice it is NOT two pairs. Terminal pitch 5.08mm.
  • Cable terminal is pre-soldered on board.

About HLW8032:

  • The HLW8032 is a high precision energy metering IC that uses a CMOS manufacturing process and is primarily intended for single phase applications. It can measure line voltage and current, and can calculate active power, apparent power and power factor.
  • The device integrates two ∑-Δ ADCs and a high-precision energy metering core. The HLW8032 can communicate data through the UART port. The HLW8032 uses a 5V supply, a built-in 3.579M crystal, and an 8PIN SOP package.
  • The HLW8032 has the advantages of high precision, low power consumption, high reliability and strong adaptability to the environment. It is suitable for energy metering of single-phase two-wire power users.

Applications:

  • Smart home appliances.
  • Metering socket.
  • Smart WIFI socket.
  • Electric vehicle charging pile.
  • PDU equipment.
  • LED lighting.
  • Street light control.

Documentation please see on this page.
