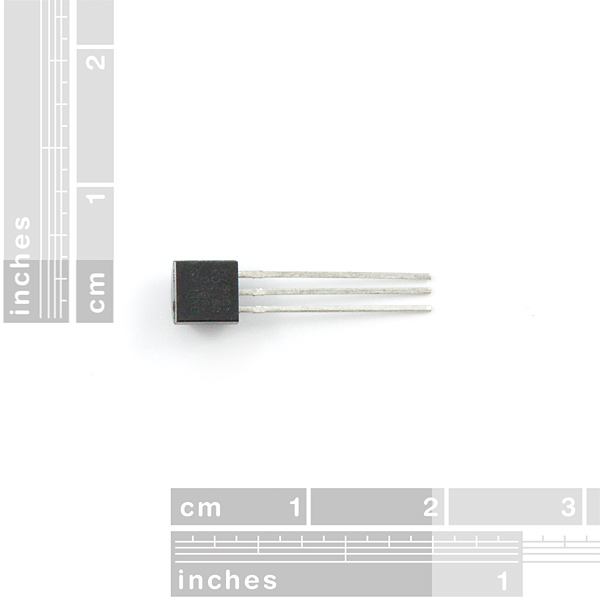

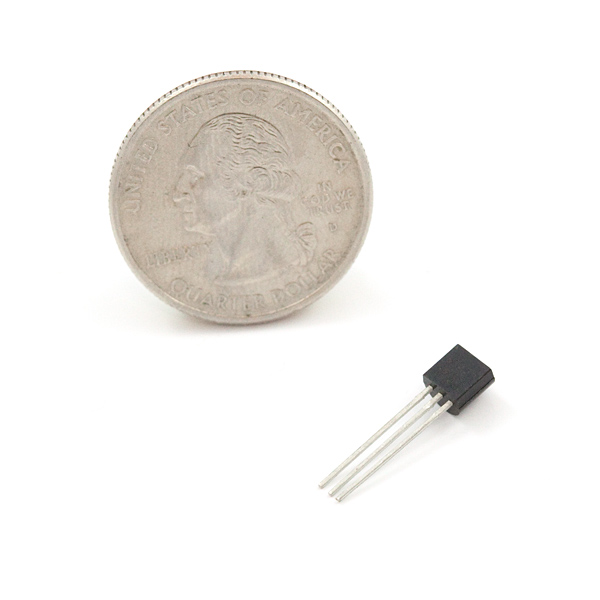

Sensor de Temperatura Digital DS18B20

One Wire Digital Temperature Sensor - DS18B20

Sensor de temperatura digital DS18B20, para conexiones en bus 1-Wire

COD: SFSEN00245

Peso: 0.005 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 96.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description: This is the latest DS18B20 1-Wire digital temperature sensor from Maxim IC. Reports degrees C with 9 to 12-bit precision, -55C to 125C (+/-0.5C). Each sensor has a unique 64-Bit Serial number etched into it - allows for a huge number of sensors to be used on one data bus. This is a wonderful part that is the corner stone of many data-logging and temperature control projects.

Features:

  • Unique 1-Wire® interface requires only one port pin for communication
  • Each device has a unique 64-bit serial code stored in an onboard ROM
  • Multidrop capability simplifies distributed temperature sensing applications
  • Requires no external components
  • Can be powered from data line. Power supply range is 3.0V to 5.5V
  • Measures temperatures from –55°C to +125°C (–67°F to +257°F)
  • ±0.5°C accuracy from –10°C to +85°C
  • Thermometer resolution is user-selectable from 9 to 12 bits
  • Converts temperature to 12-bit digital word in 750ms (max.)
  • User-definable nonvolatile (NV) alarm settings
  • Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition)
  • Applications include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system

Documents:

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (23/11/2015 - 15:54)

Hola Alfredo, el costo (sin contar envío) es ARS $2080.- Si abonas mediante transferencia bancaria tenes ARS $62.4 de descuento. Saludos!

alfredo rodriguez (19/11/2015 - 20:02)

hola quisiera unas 40 piezas cuanto me cuesta

Juan Pablo (30/07/2013 - 08:39)

Si Ricardo, por supuesto que funciona con Arduino. Fijate que en la descripción hay un link a este lugar que explica como: http://bildr.org/2011/07/ds18b20-arduino/

Ricardo (28/07/2013 - 22:31)

Este sensor se puede usar con arduino?? Saludos
