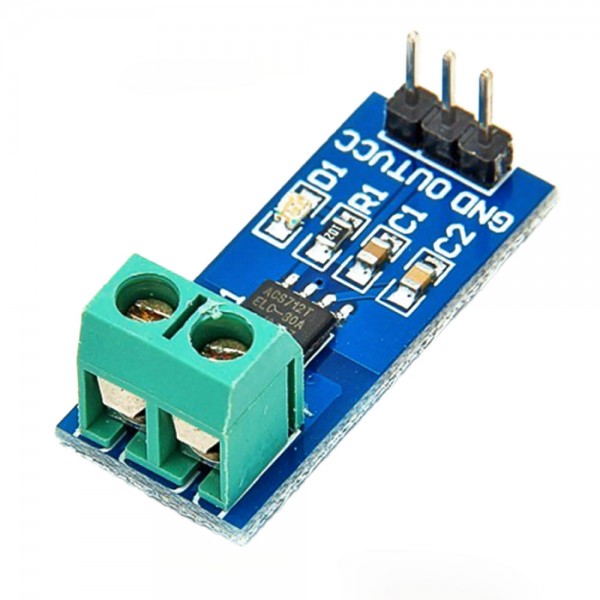

Hall Current Sensor Module ACS712 30A model for arduino
Sensor de corriente basado en el chip ACS712ELC-05B, capaz de medir hasta +/- 30A.
COD: HTHR0160
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 7513.00
El producto no está disponible para la venta en este momento
Características
Product Specification:
- The current sensor chips: ACS712ELC-05B.
- Pin 5V power supply, on-board power indicator.
- The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV / A.
- Built in a potentiometer for sensitivity control. Convenient and easy to install.
Features:
- Product Name : Current Sensor Module;Model : ACS712.
- Range Current : 5A;Size : 31 x 12mm/ 1.2" x 0.47" (L*W).
- Material : Electric Part, Plastic.
- Net Weight : 4g.
- Package Content : 1 x Current Sensor Module.
Additional Information:
- Shipping Weight: 5.
- Product Dimensions:
- Width: 2.70.
- Length: 3.70.
- Height: 0.50.
