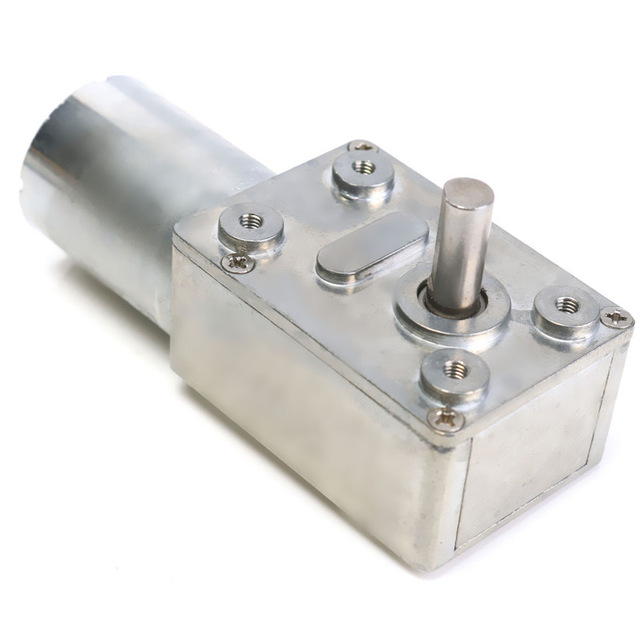

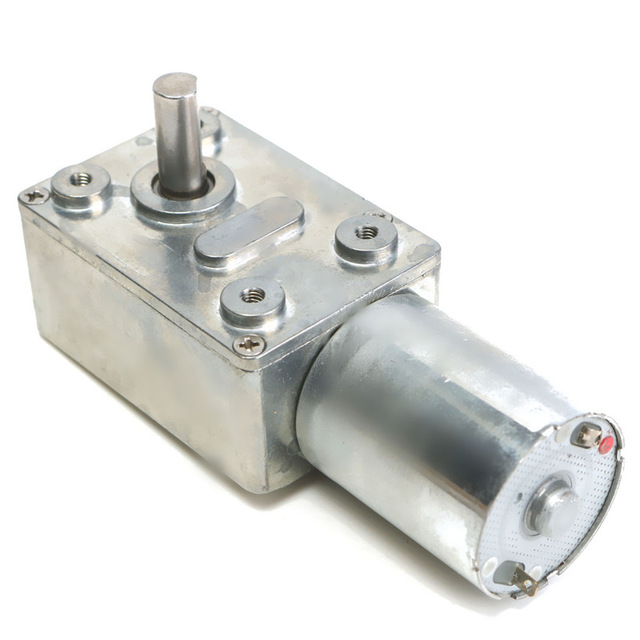

Reversible High torque Turbo Worm Gear Motor JGY370 DC 12V 18RPM
Motorreductor DC modelo JGY370 con reductor tipo gusano, de engranajes metálicos, de Torque 5.6 Kg y 18 RPM. Se alimenta con 12V.
COD: HTHS0310
Peso: 0.163 Kg
Disponibilidad: Sin Stock
ARS 21935.00
El producto no está disponible para la venta en este momento
Características
Features:
The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation.
Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock.
The reducer output shaft arranged vertically with the motor shaft, whole motor output shaft relatively-short than general gear motor, widely used to be installed the dimensions requirements strictly occasion.

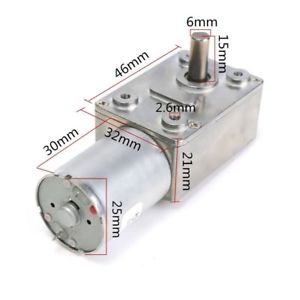

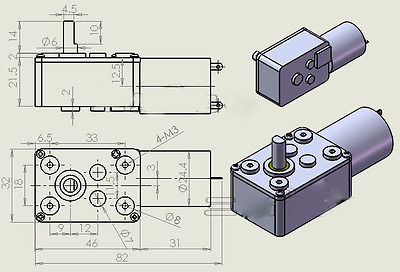

Specifications:
- Model: JGY370
- Voltage: DC12V
- No load speed: 18r/min
- Output torque: 5.6kg.cm
- Rated current: 0.06A
- Weight: 163g
- Application: open the window, door, Mini winch. Ect.
Package included:
- 1 x High torque Turbo worm Geared motor.
