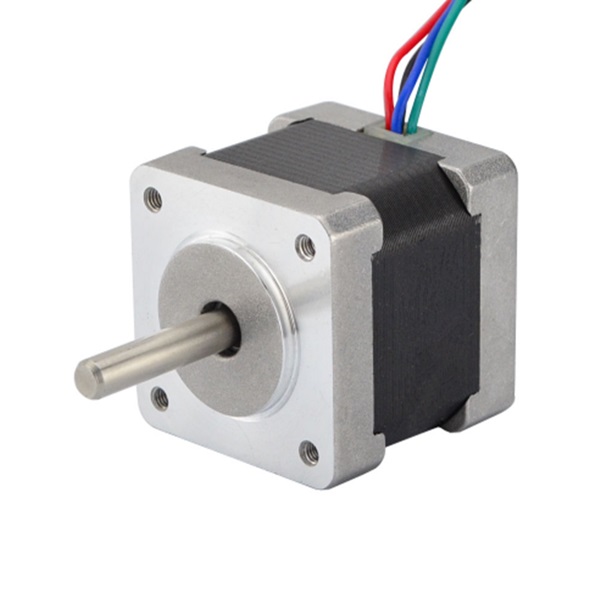

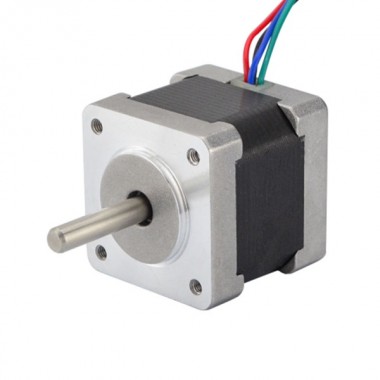

1.8 Degree Nema14 44mm high torque stepper 14HY0006 -20B 14HY6001 -20
Motor paso a paso NEMA 14 modelo 14HY0006 -20B, de tipo híbrido, con torque de 150 mN.m. Posee un un ángulo de paso de 1.8º (200 pasos por vuelta) y su tensión nominal de alimentación es de 4.6V.
COD: HTHS0294
Peso: 0.200 Kg
Disponibilidad: En Stock
ARS 42000.00
El producto no está disponible para la venta en este momento
Características
Description:
Nema 14 Stepper Motor Price 14HY0006-20B
Specifications:
| Item | Specification |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step,no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80°CMax.(rated current,2 phase on) |
| Ambient Temperature | -10°C~+50°C |
| Insulation Resistance | 100MΩMin. 500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.06Max.(450 g-load) |
| Shaft Axial Play | 0.08Max.(450 g-load) |
Electrical parameters:
| Phase | Voltage | Current | Inductance | Resistance | Holding | Rotor | Weight | Length | Wire |
| No. | Torque | Inertia | No. | ||||||
| V | A | mh ±20% | Ω ±10% | mN.m | g.cm ² | kg | mm | ||
| 2 | 4.6 | 0.8 | 9 | 5.8 | 150 | 14 | 0.18 | 34 | 4 |
